Mechanical Internal Scraping Automatic Self Cleaning Filter for Heavy Duty Filtration

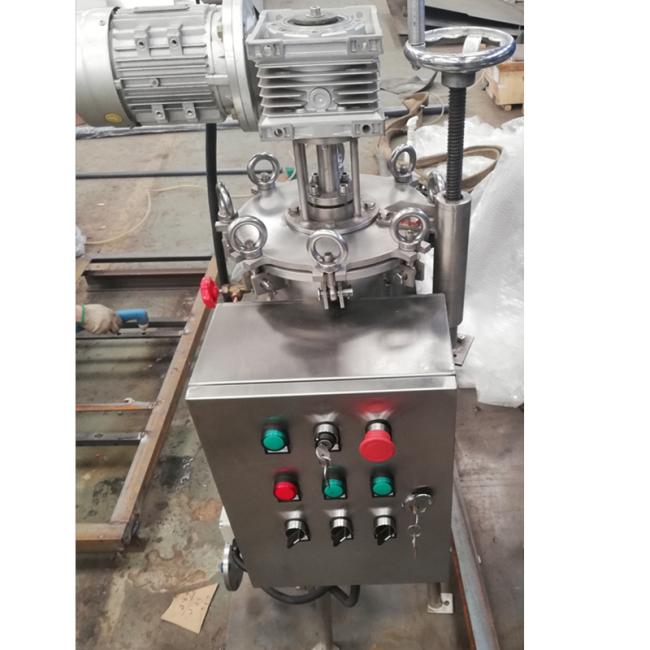

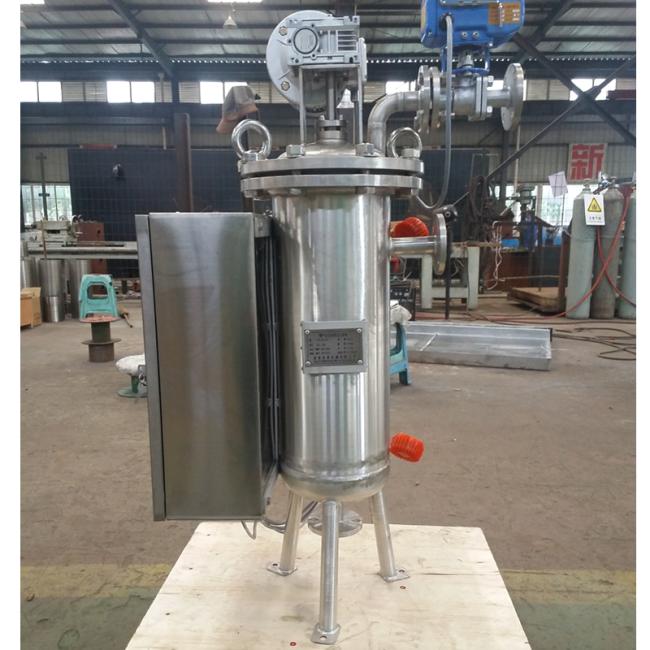

High precision mechanical internal scraping automatic self cleaning filter
Product Introduction:
TPSC is the high efficiency scraping self-cleaning filter removing the impurities particles on the filter element outside by mechanical scraping, it continuously filters on-line. TPSC filter is designed for fine and accurate filtration ranging from20-500 micron. It can avoids extruding and breaking the impurities and is capable of the filtration for water and liquids viscosity up to 800000cps.
Features:
l Automatic 24-hour on-line filtration, no frequent changing out and cleaning
l No disposable filter media consumption, save filter media cost and environment cost
l Adopt outside scraping, Stainless steel scraping blade, good impurity removing performance
l Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to scrap
l Very low pressure drop, stable flowrate, save energy consumption
l Close filtration, no dangerout liquid leakage, good for safe production
l Discharge waste liquid with high impurity concentration, avoid valuable liquid loss
Application:
Products are widely used in water treatment, papermaking ,petroleum ,bio-pharmaceuticals, printing ink, grease, food and beverage, etc.
Technical parameter:
| Model | TPW11 | TPW22 | TPW34 | TPW75 | TPW100 | TPW136 |
| Filter area(cm2) | 0.11 | 0.22 | 0.34 | 0.75 | 1.00 | 1.36 |
| Volume (L) | 16 | 30 | 50 | 145 | 195 | 320 |
| Inlet/Outlet (mm) | DN40-DN50 | DN50-DN80 | DN50-DN100 | DN65-DN100 | DN80-DN125 | DN100-DN150 |
| Drain outlet (mm) | DN40 | DN50 | ||||
| Applicable liquid | Viscidity (<800000cps),Impurity<1000ppm | |||||
| Filtration Precision | 20-500μm | |||||
| Cleaning pressure diff. | 0.05MPa | |||||
| Diff pressure switch | Differential pressure transmitter(DPT) or Differential pressure switch(DPS) | |||||
| Gear motor | 180W,380V, IP55 | |||||
| Filter element type | V-SLOT, 316L/304 | |||||
| Housing material | 316L/304/CS | |||||
| Scraping blade material | 304/316L | |||||
| Seal material | NBR/VITON(FKM) | |||||
| Discharging valve | Pneumatic ballvalve/ Electric ball valve | |||||
*Above parameters only for reference, customized available for detailed requirements
Top Machinery, founded in 2002, specialized manufacture wastewater treatment equipment and sludge dewatering machine, like screw type sludge dewatering machine, decanter centrifuge, brushing/scraping self-cleaning filter, automatic back-flushing filter, Bernoulli filter, electrocoagulation, inward/outward water micro filter, bar screen, etc. With our consistent effort, high quality, competitive price and good after-service, our machines are supplied to more than 30 countries with very good feedback.
Q: Where is your factory?
A:Chengdu city,Sichuan province, China
Q:Can you accept OEM?
A:Yes.We could do OEM for you.
Q: Do you have a certification?
A: Yes. we have ISO / CE certificate and certificate of patent
Q: How about the delivery tme?
A: Usually 7-15 days after prepayment is confirmed.
Q:Do you have a design team?
A:Yes,we have.Providing outline drawing,electric drawing and others.
Q:Can you send me a sample?
A: Yes.1-3 days for delivery
Q. :What is your payment?
A: T/T,T/C,Western Union,Paypal.
