Hydraulic Technology Digital Spot UV Coating Machine for Wood Floor 220V/380V

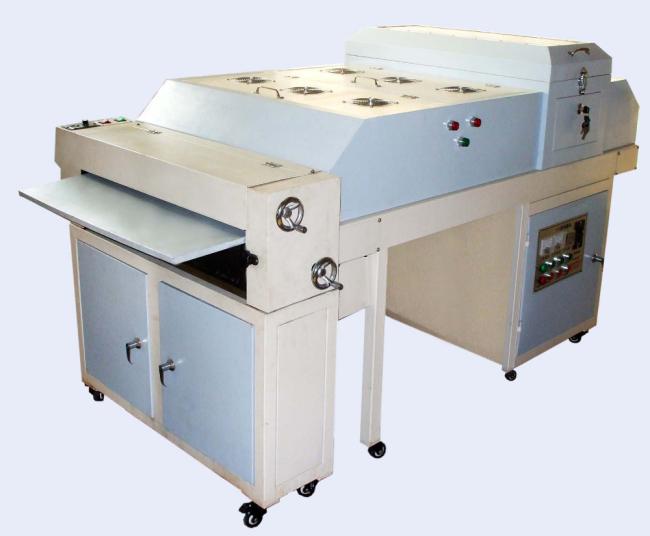

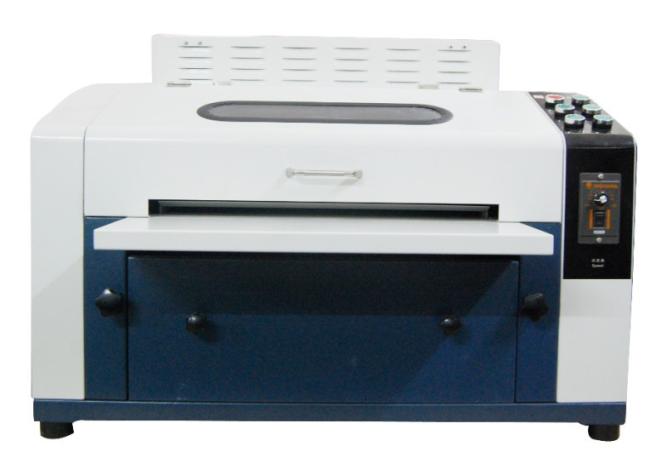

Digital Spot UV Coating Machine for Wood Floor
Usage
It is mainly used for coating MDF board and producing panel furniture and kitchen cabinet board;
and also can be used for coating solid wood and bamboo flooring.
Process flow of the UV coating line
Configured according to customer’s product quality and the simple process of the panel furniture are as following:
Equipment list of the coating line
Roller conveyor, belt conveyor, putty filling machine, one-roller coating machine, two-roller coating machine, curtain painting
machine, printing machine, sanding machine for raw board, sanding machine for base coat, two lamps UV dryer, three lamps
UV dryer, four lamps UV dryer and IR leveling machine.
Technical Parameters
| Model | Working width | Working thickness | Minimum length | Feeding speed | Feeding power | Coater roller power | Coating power | Heating power | Dimensions(L×W×H) | ||
| 200 | 620mm | 2-100mm | 300mm | 5-20m/min | 1.5kw | 1.5kw | 0.75kw | 3kw | 1600×1600×1300mm | ||
| 500 | 920mm | 2-100mm | 300mm | 5-20m/min | 1.5kw | 1.5kw | 0.75kw | 3kw | 1600×2000×1300mm | ||
| 1100 | 1320mm | 2-100mm | 300mm | 5-20m/min | 1.5kw | 1.5kw | 0.75kw | 3kw | 1600×2400×1300mm | ||
After selling UV coating line, if necessary, we will send one or two engineers to set up and commissioning of the UV coating line until it running in normal state. During the time your workers who will operate the UV coating line will be trained.
