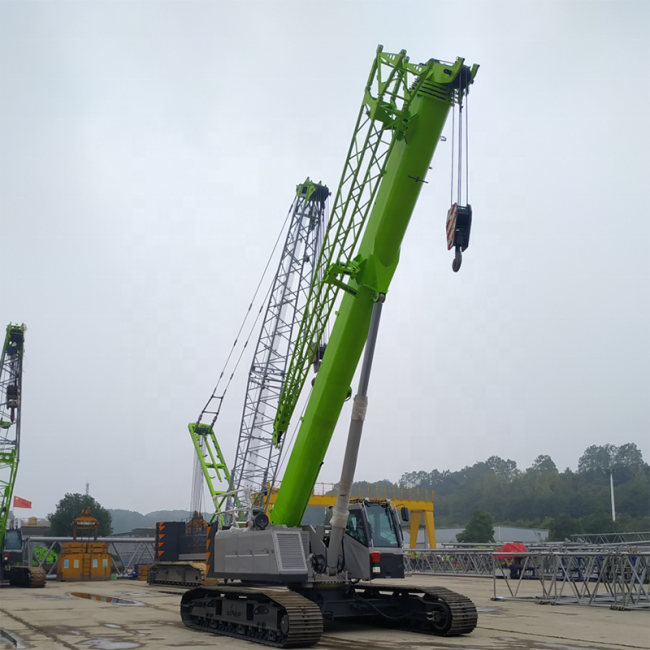

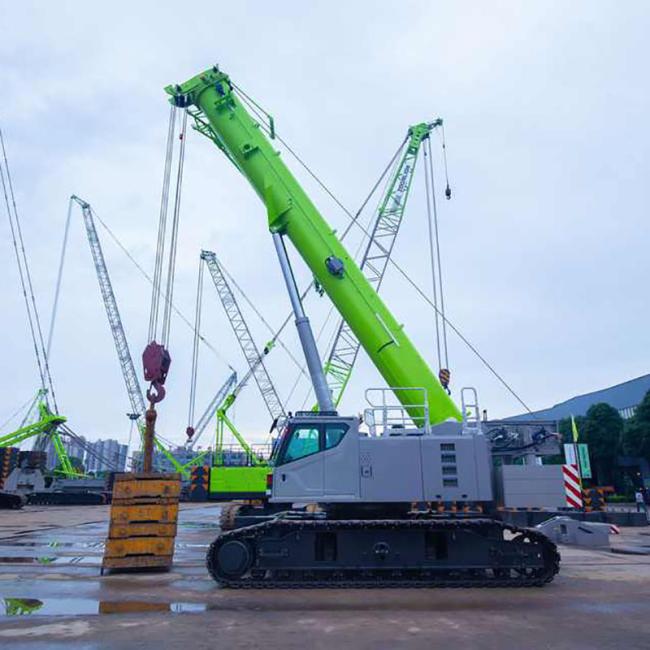

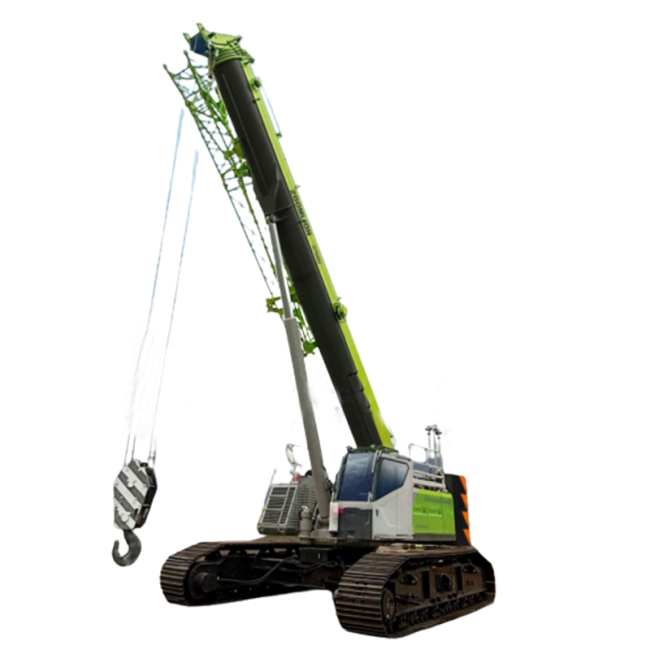

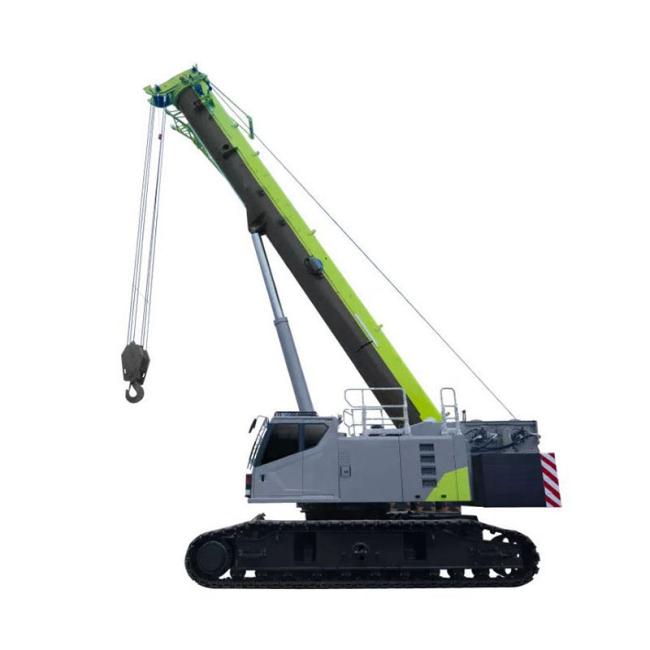

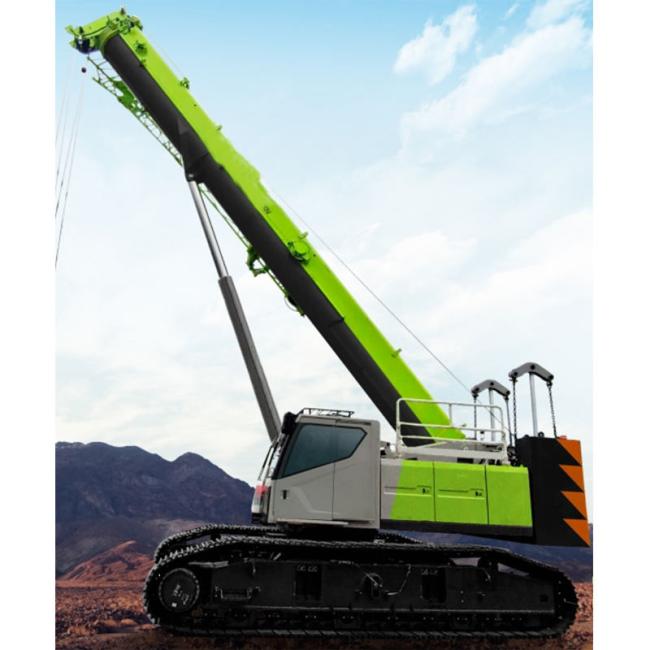

Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton
Price:
Negotiable
MOQ:
1
Delivery Time:
7-10days
Brand:
Zoomlion
Product Description
Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton
Other attributes
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other
Weight (KG)
30000
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Place of Origin
Anhui, China
Feature
Other
Application
Engineering machinery
Rated Loading Capacity
60ton
Rated Lifting Moment
3087KN.m
Max. Lifting Height
58.5m
Brand Name
Zoomlion
Product name
Mobile Crane
Crane type
Crawler Crane
Type
Truck Mounted Crane Mobile Crane Truck
Brand
zoomlion
Jib length
7.5-12.8m
Main boom length
11.9-46m
Gradeability
45%
Overall dimension
14000*3300*3220mm
Power Source
Diesel Engine
Walking speed
2.7 (No load) /1.5(Full load)
Packaging and delivery
Packaging Details
wooden case or Container
Port
FOB shanghai
Product Description
Hydraulic system
The crane adopts a series-connected hydraulic system with hydraulic pilot proportional control. The high-speed hydraulic motor drives the planet reducer to realize movements of the mechanisms.
The system has such advantages as high efficiency, energy-saving, smooth and safe simultaneous movements.
The oil cooler for hydraulic system: a radiator driven by high-power hydraulic motor, 40 kW
Hydraulic oil tank capacity: 770 L
Electrical system
24 Volt DC, negative ground, two batteries of 200AH each.
The electrical system of the crane includes the power supply, engine start, engine shutdown, indicator lights, warning devices, illumination devices, fan, wiper, horn, hoisting limiter, hydraulic oil cooling fan, concentrated display panel, load moment limiter, safety devices etc. which not only ensure safe operation of the crane but also provide a good working environment.
Counterweight
A tray-type assembly structure is adopted for the counterweight system. The counterweight plates are stacked up, and locked by the hydraulic oil cylinder.
The counterweight is 2.98 m wide, which is easy for transportation.
The movable counterweight consists of four counterweight plates, i.e. a counterweight base plate (8 t), a middle plate (8 t) and two side plates (2 t each); whose total weight is 20 t.
The crane adopts a series-connected hydraulic system with hydraulic pilot proportional control. The high-speed hydraulic motor drives the planet reducer to realize movements of the mechanisms.
The system has such advantages as high efficiency, energy-saving, smooth and safe simultaneous movements.
The oil cooler for hydraulic system: a radiator driven by high-power hydraulic motor, 40 kW
Hydraulic oil tank capacity: 770 L
Electrical system
24 Volt DC, negative ground, two batteries of 200AH each.
The electrical system of the crane includes the power supply, engine start, engine shutdown, indicator lights, warning devices, illumination devices, fan, wiper, horn, hoisting limiter, hydraulic oil cooling fan, concentrated display panel, load moment limiter, safety devices etc. which not only ensure safe operation of the crane but also provide a good working environment.
Counterweight
A tray-type assembly structure is adopted for the counterweight system. The counterweight plates are stacked up, and locked by the hydraulic oil cylinder.
The counterweight is 2.98 m wide, which is easy for transportation.
The movable counterweight consists of four counterweight plates, i.e. a counterweight base plate (8 t), a middle plate (8 t) and two side plates (2 t each); whose total weight is 20 t.
Specification
