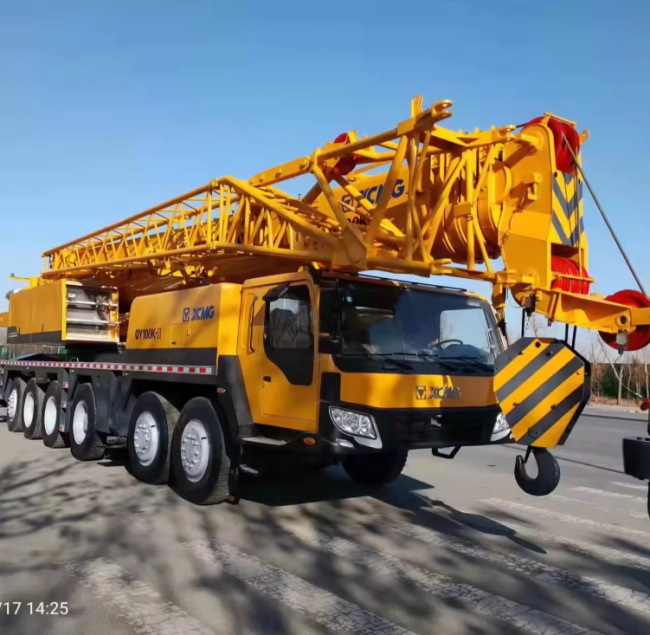

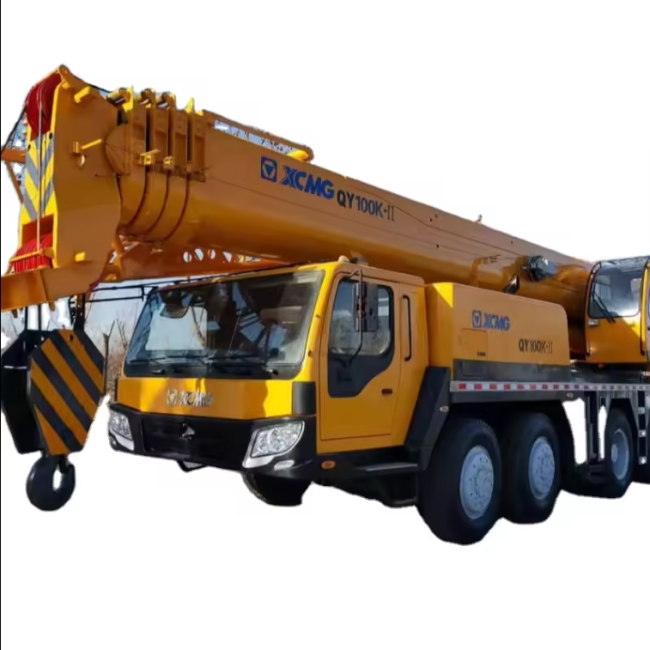

XCMG QY100K 100 Ton Used Truck Mounted Cranes

Price Negotiable

Price: $90,000 each set

MOQ: 1 set

Delivery Time: 7-10 days

Brand: XCMG

Product Description

Feature TRUCK CRANE

Span 5.9m

Specification

Item	Item		Unit
Dimensions	Overall length	13770	mm
	Overall width	2800	mm
	Overall height	3570	mm
Weight	Dead weight in travel state	41000	Kg
	1st axle load	7500	Kg
	2nd axle load	7500	Kg
	3rd axle load	13000	Kg
	4th axle load	13000	Kg
Power	Engine model	WD615.334 WD615.338 WP10.336 WP10.375
	Engine rated output	247/2200 276/2200 247/2200 275/2200	Kw(r/min)
	Engine rated torque	1350(1300~1600) 1500(1300~1600) 1350(1100~1500) 1460(1200~1600)	N.m(r/min)
Travel	Max.travel speed	80	Km/h
	Min.turning diameter	24	m
	Min.ground clearance	291	mm
	Approach angle	17	.
	Departure angle	11	.
	Max.gradeability	40	%
	Fuel consumption of per 100km	42	L
Lifting performance	Max.total rated lifting load	50	t
	Min. working radius	3	mm
	Turning radius at swing table tail	3482	m
	Base boom max.load moment	1822	Kn.m
	Base boom	11.3	m
	Full- extended boom	42.7	m
	Full-extended boom+ jib	57.7	m
	Outrigger longitudinal distance span	5.91	m
	Outrigger lareral distance span	6.9	m
Working speed	Boom elevating time	40	s
	Boom telescoping time	80	s
	Max. slewing speed	2	r/min
	Main winch max. speed(no load)	130	m/min
	Auxiliary winch max. speed(no load)
