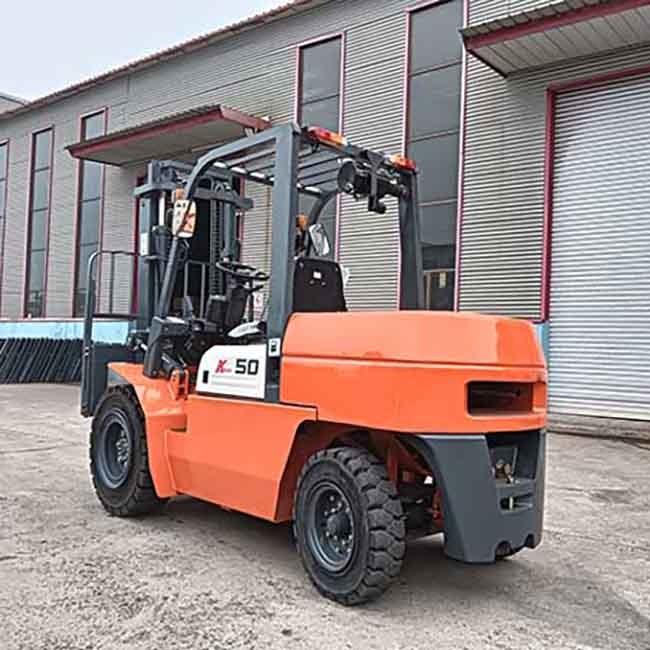

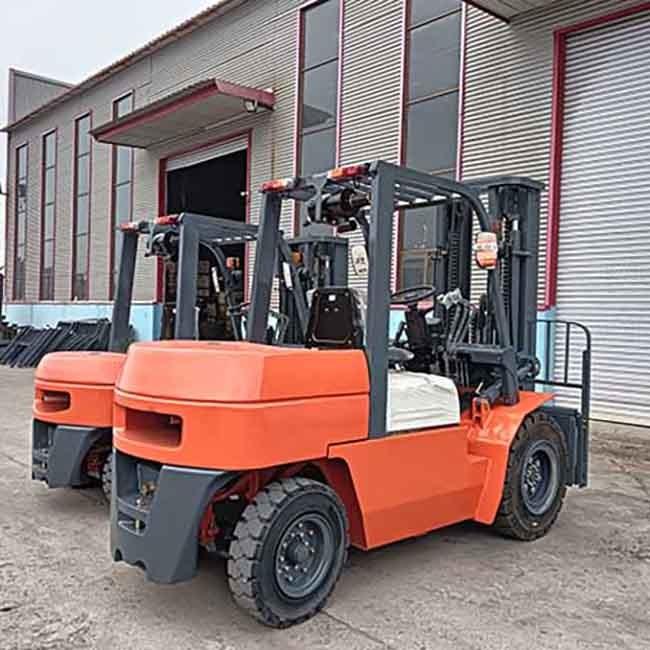

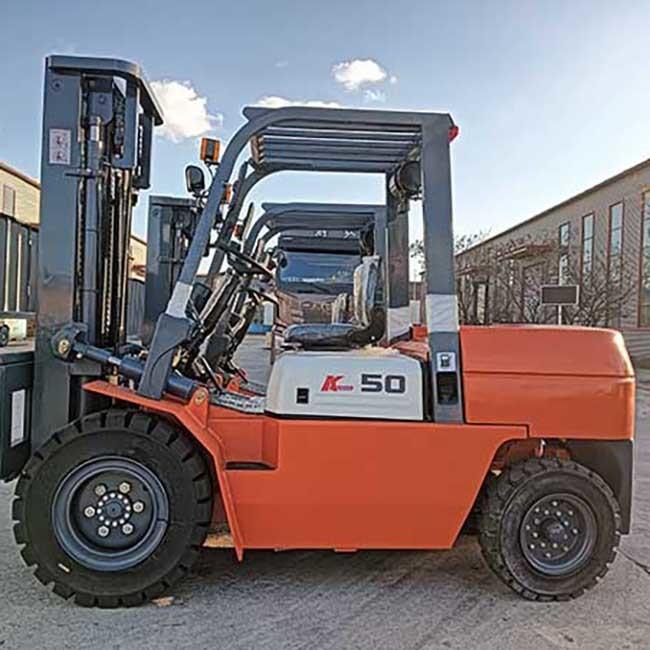

Double Front Tires Gasoline Forklift Nissan GK25 5 Tonne Counterbalance Forklift

Price Negotiable
Price: 7000-9500 usd
MOQ: 1 unit
Delivery Time: 5-8 working days
Brand: YEAWEY
Product Description

Double front tires 5 Ton gasoline powered forklift duplex mast



Main information:
Engine: Nissan GK25 gasoline engine
Transmission: Automatic
Mast type: 2 stage mast 3m lifting height
Tires: pneumatic
Fork: 1220mm-2000mm
Attachments: Side shift, double front tires


The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.

Working efficiency improved

Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.



Ergonomic comfort

Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.



Large Opening Angle

Enlarged internal space is convenient for engine and transmission box maintenance.

Increased hood opening angle makes maintenance convenient.



Wide-angle Rear-View Mirror

Provides more comprehensive rear viewfor enhanced safety.



Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.



Specification CPCG50
1 Fuel model   Gasoline
2 Load capacity kg 5000
3 Load center mm 500
4 Lift height mm 3000
5 Full free lift height mm 0
6 Fork dimension mm 1070×150×50
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 2680
9 Groud clearance mm 135
10 Overhead guard height mm 2210
11 Front overhang mm 495
12 Max travel speed km/h 22
13 Max lift speed mm/s 330
14 Max.traction power KN 18.5
15 Max. gradeability % 20
16 Total length with fork mm 4195
17 Total length without fork mm 2975
18 Total width mm 1380
19 Mast extended height mm 4250
20 Mast lowered height mm 2185
21 Tyres Front   300-15-18PR
22 Type Rear   700-12-10PR
23 Wheelbase mm 1960
24 Tread mm 1000/970
25 Service weight Kg 5300
26 Battery V/Ah 12/80
27 Engine model   Nissan GK25 gasoline engine
28 Engine power kw/r.p.m 46
29 Transmission   Mechanical or Automatic
30 Work press Mpa 18.5
