Settling Area 100M2 Sludge Thickener Carbon Steel Sludge Treatment Equipment
Carbon Steel Sludge Process Treatment Equipment Settling Area 100 m2
Product Description:
The main function of the Thickener Equipment is to separate clean water from the slurry produced during the technical process.
The Thickener Equipment is designed to be efficient, reliable, low consumption and easy maintain.

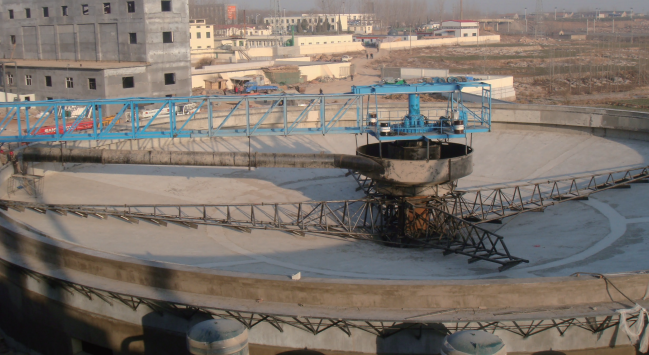

Thickener is a type of solid-liquid separation equipment by gravitational sedimentation. The tapered bottom of thickener is a cylinder groove, consisted of concrete, wood or metal plates. Thickener can settle and concentrate the slurry solid density from 10~20% to 45~55% under the function of gravitation via the thickener rake. The thicken slurry is discharged from the bottom of thickener.
Technical Parameters:
| Description | Specification |
| Diameter of Tank | 12 |
| Depth of Tank | 3.95 meter |
| Setteing Area | 113 m2 |
| Lifting Height of Rake | 350mm |
| Rotating Time of Rake | 5 ~ 30 mm/min |
| Motor Power | 3 kW |
| Max Torque | 81.07 kN |
Support and Services:
Our Thickener Equipment product is designed to provide efficient solid-liquid separation and concentrate sludge.
| Installation and commissioning |
| Operator training and process optimization |
| Routine maintenance and troubleshooting |
| Spare Parts and consumables |
| Customized design |
| Equipment supply |
Packing and Shipping:
Product Packaging:
- Thickener Equipment
- Instruction manual
Shipping:
- International shipping available at an additional cost
- Shipped in a sturdy cardboard box to prevent damage during transit
FAQ:
Q: What is the brand name of this thickener equipment?
A: The brand name is UNIVEE.
Q: What is the model number of this thickener equipment?
A: The model number is U-TE-12.
Q: Where is this thickener equipment manufactured?
A: It is manufactured in China.
Q: Is this thickener equipment easy to install?
A: Yes, this equipment is designed with easy installation. It also comes with a user manual that includes installation instructions.
