Side Shifter 2.5ton Diesel Caretilla Autoelevadora Diesel Engie Forklift Easy Maneuverability
Price:
negotiable
MOQ:
1 unit
Delivery Time:
30-45 Days
Brand:
snsc
Product Description
| Specifications | Unit | FD25 | |||
| 1 | Characteristics | Power | diesel | ||
| 2 | Rated Capacity | kg | 2500 | ||
| 3 | Center of load | mm | 500 | ||
| 4 | Lifting height | mm | 3000 | ||
| 5 | Free lifting height | mm | 135 | ||
| 6 | Forks L×W×H | mm | 1070x122x40 | ||
| 7 | Tilt Forward/Backward | . | 6/12 | ||
| 8 | Min.turning radius | mm | 2240 | ||
| 9 | Min.ground clearance(Mast) | mm | 110 | ||
| 10 | Overhead guard height | mm | 2120 | ||
| 11 | Height from seat to overhead guard | mm | 943 | ||
| 12 | Front overhang | mm | 473 | ||
| 13 | Perf | Max.traveling speed(loaded) | km/h | 19 | |
| 14 | Max.lifting speed(loaded/empty) | mm/s | 470/510 | ||
| 15 | Drawbar pull/Gradeability | kN/% | 17/20 | ||
| 16 | Dimensions | Overall length (without fork) | mm | 2570 | |
| 17 | Overall width | mm | 1175 | ||
| 18 | Mast lowered height | mm | 1990 | ||
| 19 | Mast extended height | mm | 4000 | ||
| 20 | Chassis | Tire | Front | 7.00-12-12PR | |
| 21 | Rear | 6.00-9-10PR | |||
| 22 | Wheelbase | mm | 1600 | ||
| 23 | Tread width | Front/Rear | mm | 970/970 | |
| 24 | Curb weight | None-load | kg | 3750 | |
| 25 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
| 26 | Engine | Model | Mitsubishi S4S engine | ||
| 27 | Rated power | kw/r.p.m | 38/2300 | ||
| 28 | Rated torque | Nm/r.p.m | 176/1800 | ||
| 29 | Cylinder amount | 4 | |||
| 30 | Bore×Stroke | mm | 94x120 | ||
| 31 | Displacement | 3.331 | |||
| 32 | Fuel tank | L | 60 | ||
| 33 | Transmission | 1/1 automatic transmission | |||
| 34 | Working pressure | MPa | 17.5 | ||
| Engine | China xinchai engine/Japan Mitsubishi & iszu engine |
| Transmission | Auto/manual hand/machinery |
| Lifting height | 3000-6000mm |
| Mast | Standard duplex/Duples full free lift/Triplex full free lift |
| Tire | Pneumatic tire/solid tire/double front tire/off road tire |
| Overhead guard | Gird type/water-proof type |
| Light | front lamp/rear lamp/truning linght/combination light |
| Mirror | Left and right mirror/Rearview mirror/wide view mirror |
| Seat | Standard seat/ seat with belt/seat with arm/suspension seat |
| Fork length | 920mm/1070mm/1220mm/1570mm ect |
| Color | Green/yellow/red/customer customized |
| Certificat | CE &ISO &EPA |
| Tool box | Yes |
| Maintenance manual | Yes |
| Operation manual | Yes |
| Spare part manual | Yes |
| Free Spare part | Yes |
SNSC Forklift have strict indoor and outdoor quality control system which includes braking performance, the inclination angle of the mast, detection of chassis oil leakage, counterweight, loading, lifting, tilting, turning, climbing, etc.To ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery. If notpassed any test, the forklift is not allowed leave from our factory. If the storage time exceeds 1 month, we need to do regular maintenance and testing until it leaves the factory.
We have all kinds of forklift , here is our forklift catalogue for your choice:
1)Diesel forklift truck capacity from 1.5ton to 16ton;
2) Electric forklift truck capacity from 1.5ton to 3.5ton;
3) LPG gas gasoline forklift truck capacity from 1.5ton to 7ton;
4) Warehouse equipment, includes electric pallet truck, electric reach truck, electric stacker, electric trailer
5) Rough terrain forklift truck capacity from 1.8-5ton;
5) Other special function forklift, eg: cold warehouse electric forklift, explosion-proof forklift, renting business forklift.

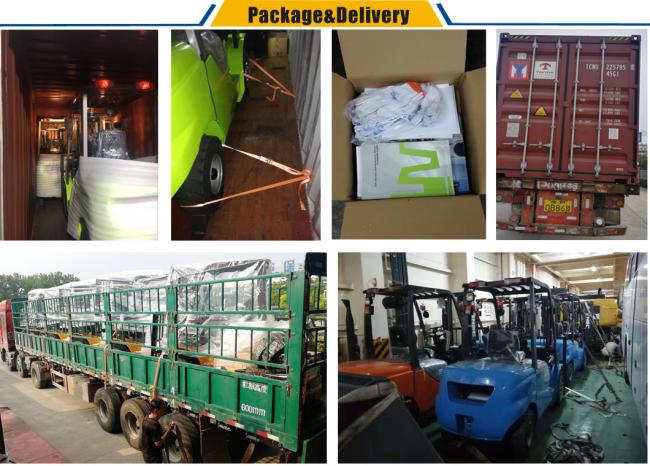

SNSC Forklift is shipped by container. Packaging&Shipping 1*20'GP - 3 Units, 1*40'GP - 5 Units
Covered Forklift In Container Shipping with Tool Box, Catalogue, Gloves and Operation and Maintenance Manuals and Spare Parts together.
Forklift Warranty Time period for SNSC Forklift is 15 Months or 2500 Working Hours begins from the forklift arrival date of oversea port, deponds on which come first.

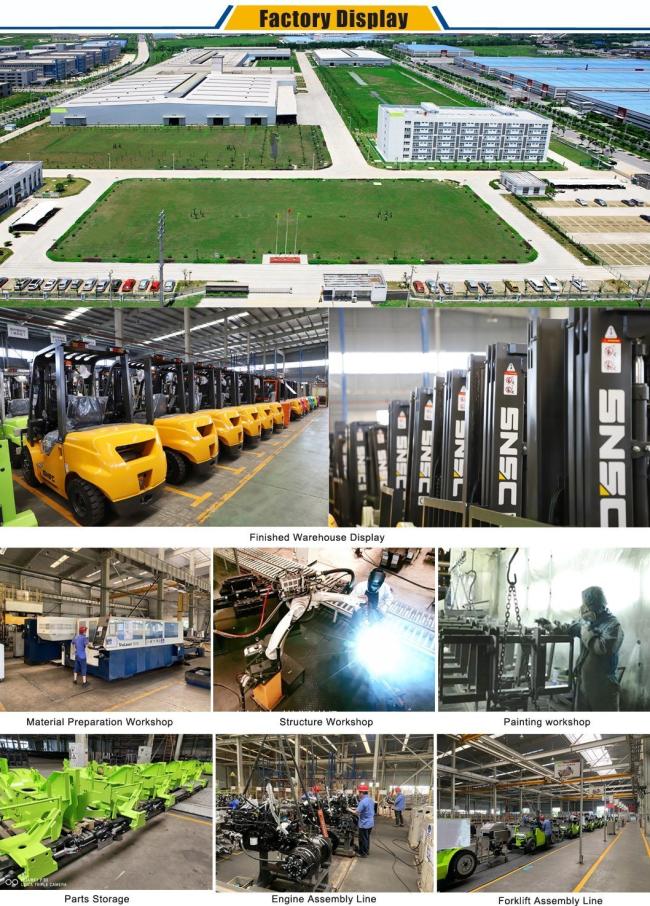

We are first calss in Chinese fork lift manufactures and top 20 in the world,with 130,000 square meters production area,over 500 employees,30,000 units forklift truc production capacity per year ,5000 sets export volume.our R&D research is in Britain, and we invested over 600 million in fork lifter factory, use advanced equipments to realize over 90% automatic production, e.g.: welding robot.
Every forklift part is self produced; we have 5 series and over 200 models to meet customers' different demands, we can do all kinds of lifting height mast according your different working conditions.
