High Lift Height Snsc FL35 3.5 Ton Gasoline LPG Forklift for Warehouse Operations
Price:
negotiable
MOQ:
1 unit
Delivery Time:
30-45 Days
Brand:
snsc
Product Description

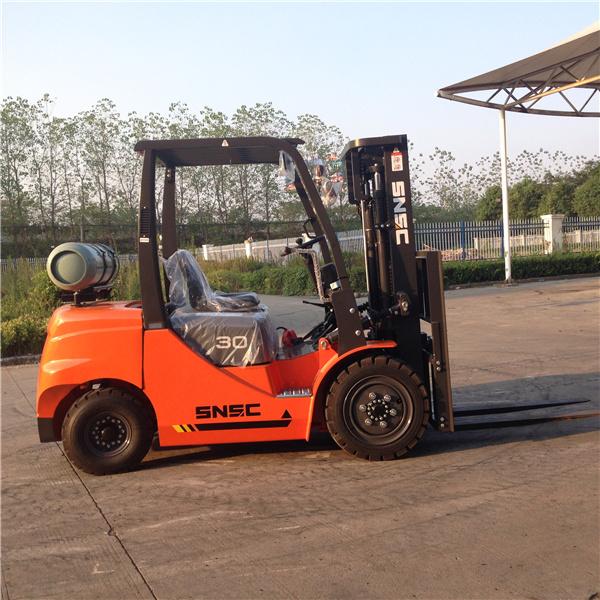

SNSC FL35 new propane 3.5 ton LPG gasoline forklift
![Snsc FL35 New Gas 3.5 Ton LPG Gasoline Forklift]()
![Snsc FL35 New Gas 3.5 Ton LPG Gasoline Forklift]()
![Snsc FL35 New Gas 3.5 Ton LPG Gasoline Forklift]()
Description:
(1)Auto electric hydraulic transmission by TCM technology,just use your finger can achieve the forklift's forward and backward;
(2)Japan hydraulic system, by using Shimadzu brand Valve and Pump;
(3)USA Eaton steering gear;
(4)USA Impco converter;
(5)LED light, with long durability time;
(6)Copper Water tank, with better heat radiation;
(7)Red/yellow/green colors for your reference.
Optional parts:

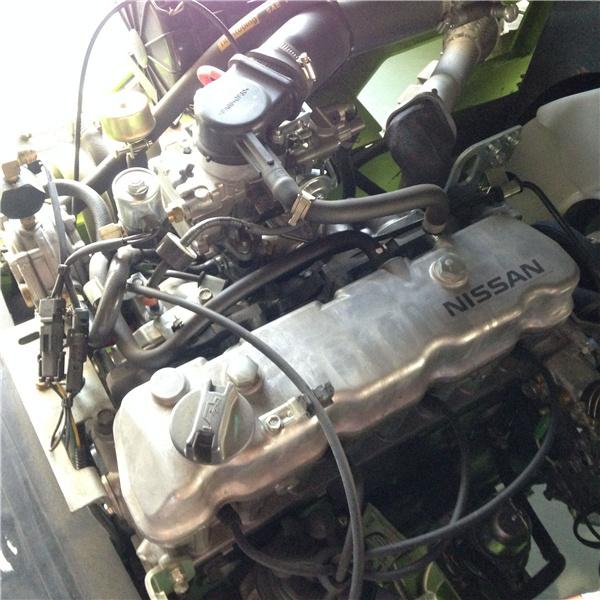

Japan Nissan engine,Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner.
Container Package Method:
3-3.5 ton diesel forklift package:20GP can hold 2 units,40GP can hold 4 units.
![Snsc FL35 New Gas 3.5 Ton LPG Gasoline Forklift]()
WE are professional in forklift manufacture and logistic solution, aim to give customers
most suitable forklift and satisfied service, if you have any demands, we are online
7x24 hours, never leave you alone with problems, not only before your purchase but also after your buy, we are responsible for our saled machines for whole life.
Description:
(1)Auto electric hydraulic transmission by TCM technology,just use your finger can achieve the forklift's forward and backward;
(2)Japan hydraulic system, by using Shimadzu brand Valve and Pump;
(3)USA Eaton steering gear;
(4)USA Impco converter;
(5)LED light, with long durability time;
(6)Copper Water tank, with better heat radiation;
(7)Red/yellow/green colors for your reference.
Optional parts:
Japan Nissan engine,Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner.
Container Package Method:
3-3.5 ton diesel forklift package:20GP can hold 2 units,40GP can hold 4 units.
| Specifications | Unit | FL35 | |||
| 1 | Characteristics | Power | - | LPG/Gasoline | |
| 2 | Rated Capacity | kg | 3500 | ||
| 3 | Center of load | mm | 500 | ||
| 4 | Lifting height | mm | 3000 | ||
| 5 | Free lifting height | mm | 145 | ||
| 6 | Forks L×W×H | mm | 1070×125×45 | ||
| 7 | Tilt Forward/Backward | . | 6/12 | ||
| 8 | Min.turning radius | mm | 2600 | ||
| 9 | Min.ground clearance(Mast) | mm | 120 | ||
| 10 | Overhead guard height | mm | 2170 | ||
| 11 | Front overhang | mm | 545 | ||
| 12 | Performance | Max.traveling speed(loaded) | km/h | 20 | |
| 13 | Max.lifting speed(loaded/empty) | mm/s | 470/520 | ||
| 14 | Drawback pull/Grade ability | KN/% | 18/20 | ||
| 15 | Dimensions | Overall length (without fork) | mm | 2825 | |
| 16 | Overall width | mm | 1230 | ||
| 17 | Mast lowered height | mm | 2095 | ||
| 18 | Mast extended height | mm | 4265 | ||
| 19 | Chassis | Tire | Front | - | 28×9-15-12PR |
| 20 | Rear | - | 6.50-10-10PR | ||
| 21 | Wheelbase | mm | 1800 | ||
| 22 | Tread width | Front/Rear | mm | 1000/970 | |
| 23 | Curb weight | None-load | kg | 4450 | |
| 24 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
| 25 | Engine | Model | - | GQ491 | |
| 26 | Rated power | kw/r.p.m | 36/2400 | ||
| 27 | Rated torque | Nm/r.p.m | 155/1800 | ||
| 28 | Cylinder amount | - | 4 | ||
| 29 | Bore×Stroke | mm | 91×86 | ||
| 30 | Displacement | - | 2.237 | ||
| 31 | Fuel tank | L | 70 | ||
| 32 | Transmission | - | 1/1 automatic transmission | ||
| 33 | Working pressure | MPa | 17.5 | ||
WE are professional in forklift manufacture and logistic solution, aim to give customers
most suitable forklift and satisfied service, if you have any demands, we are online
7x24 hours, never leave you alone with problems, not only before your purchase but also after your buy, we are responsible for our saled machines for whole life.
