1.5 Ton 2 Ton Double Deep Reach Truck

Price Negotiable
Price: negotiable
MOQ: 1 unit
Delivery Time: 30-45 Days
Brand: snsc
Product Description

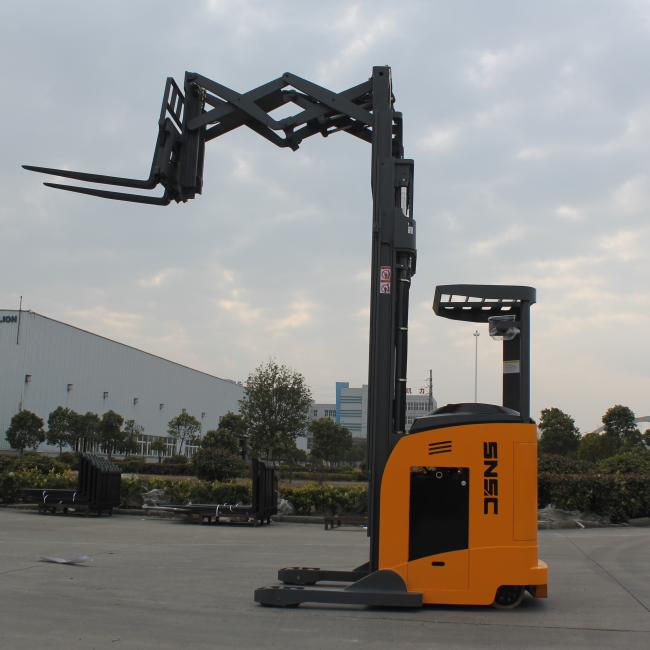

1.5 Ton 2 Ton Double Deep Reach Truck with AC Motor and Duplex / Triplex Full Free Mast

Product Description
Model


Drive Type

Electric Drive(Battery)
Operating Type

Sit-on
Braking Type

Regeneration+Electromagnetic hydraulic
Rated Load
mm
2000
Load Center Distance
mm
600
Weight(incl Battery)
kg
3450






Seize
L*W*H
mm
2565*1290*2470
Fork Size
mm
40*122*1220
Wheelbase
mm
1510
Lifting Height
mm
5600
Free Lift Height
mm
1570
Door Frame Angle

1/3
Reach Distance
mm
600
Support Arm Medial Width
mm
920
To The Length Of The Support Arm
mm
1920
Min. Ground Clearance
mm
90


Motor
Power of Drive Motor




Kw
6.4
Power of Lifting Motor
Kw


11.5
Battery Voltage/Rated Capacity


V/Ah

48/500
Drive Control Mode

MOSFET

Weight (Battery)




kg
890





Working Performance
Right Angle Stacking Aisle Width
Pallet Size: 800*1200 The Edge of The Size
mm
2380
Turning Radius

1725
Travel Speed Full Load/No Load



kw/h

9.5/10.5
Lifting Speed Full Load /No Load
mm/s
260/360
Descent Speed Full Load/No Load
mm/s
500/400
Grade Ability Full Load/No Load

%
10/15
Detailed Images
two drive motor & one steering motor
USA Curtis controller
Chinese best brand battery
Mounted right operation handle
Electric steering
LED rainproof Dispaly screen

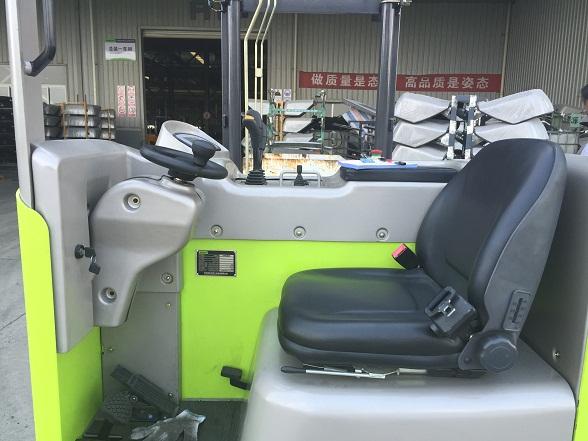

Comfortable seat with safty belt




LED Warning Light

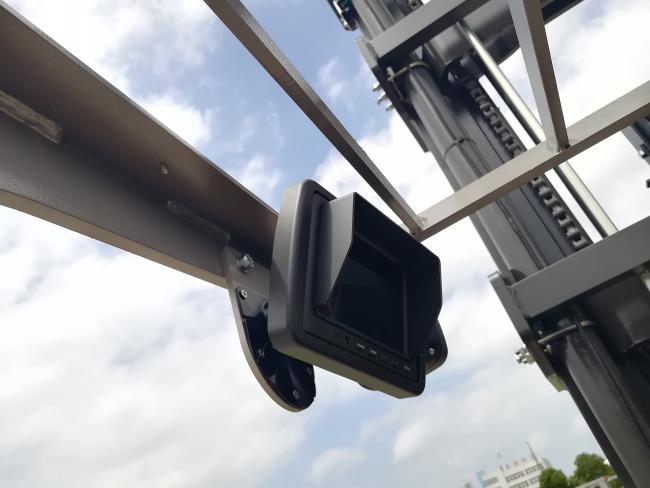

Camera

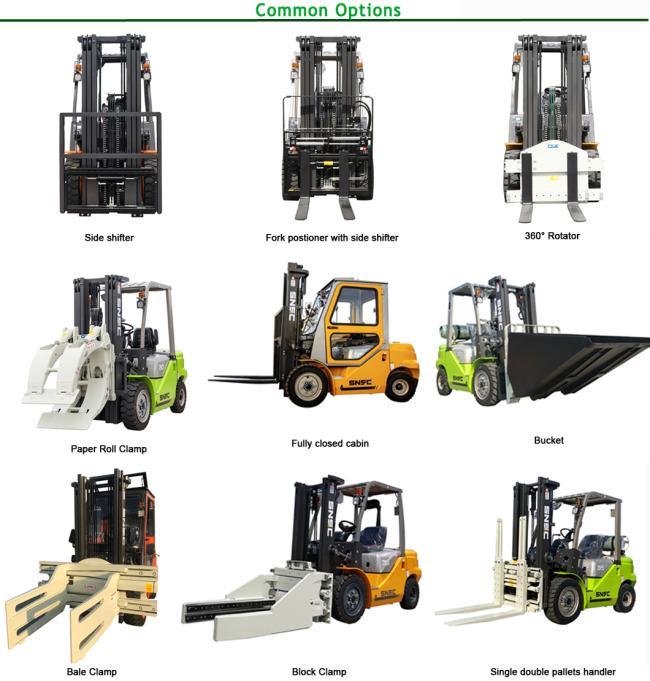

Optional Attachments
SNSC forklift can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast,
bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.
Quality Control
SNSC Forklifts have strict quality control system. Although strict quality control has been carried out during the production process, to ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery.
Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor testing includes braking performance, the inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor testing includes loading, lifting, tilting, turning, climbing, etc.

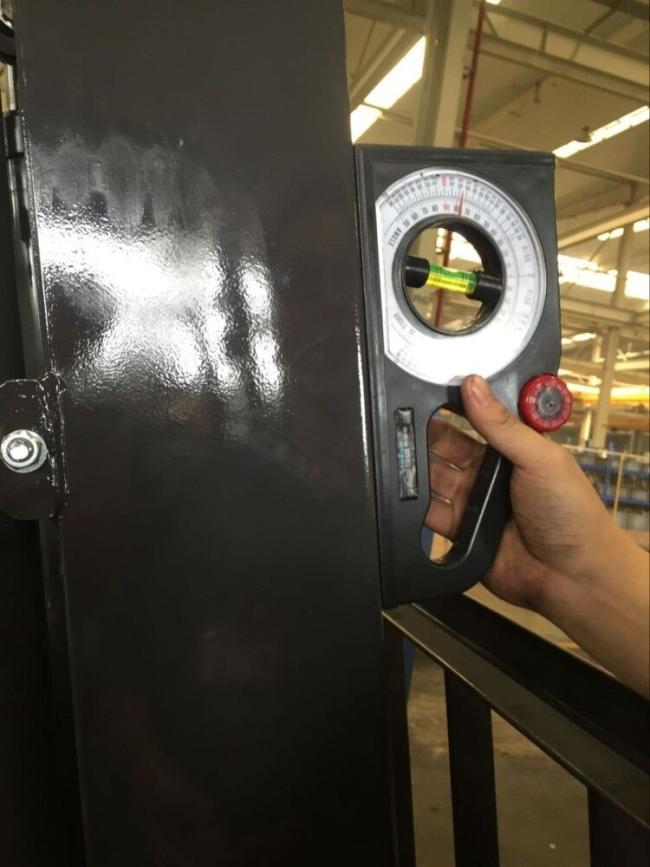

Tilt angle test
Wheel hug test
Brake Line Test
Climbing test
Lifting Test
Turning Test
Package and Delivery
1.6-2Ton Reach battery operated forklift with cheap price Shipping with Tool Box, Forklift truck Catalog, Gloves and Forklift truck Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Packaging&Shipping 1*20'GP - 4 Units, 1*40'GP - 6 Units
Successful Cases
SNSC --"Beyond your needs!"

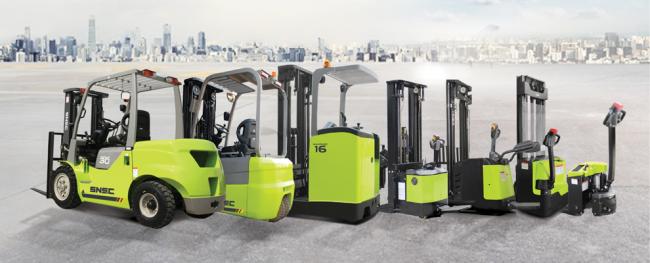

SNSC as a professional manufacturer of industrial vehicles, offer your various solutions for moving and stocking materials, such as diesel forklifts from 1.5t to 10t, electric forklifts from 1t to 3.5t, LPG gasoline electric stacker, warehouse trucks.

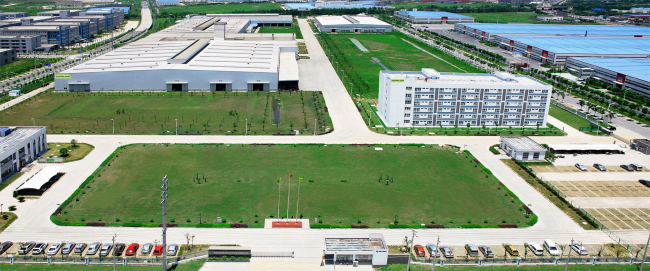

Our Factory
We are top 3 in Chinese forklift manufactures and top 20 in the world,over 300 employees,10,000 units forklift truck production capacity per year,5000 sets export volume.

our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.
Material Preparation Workshop
Structure Workshop
Painting Workshop

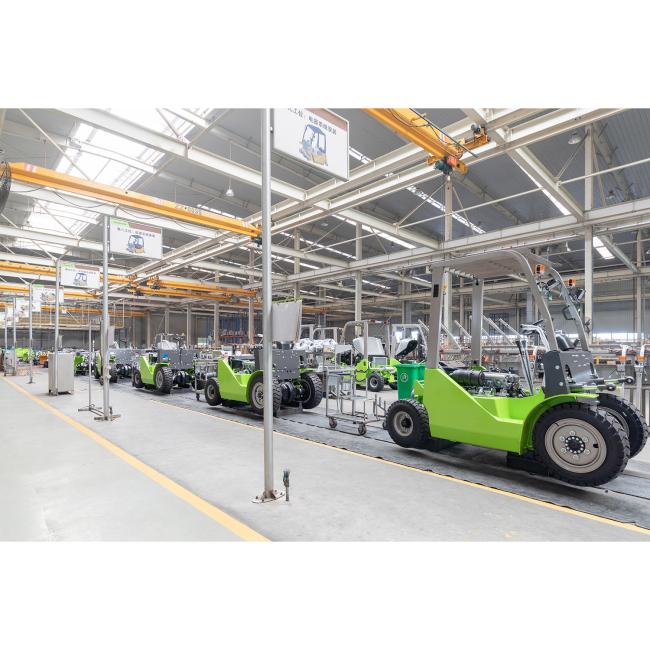

Assembly Workshop
