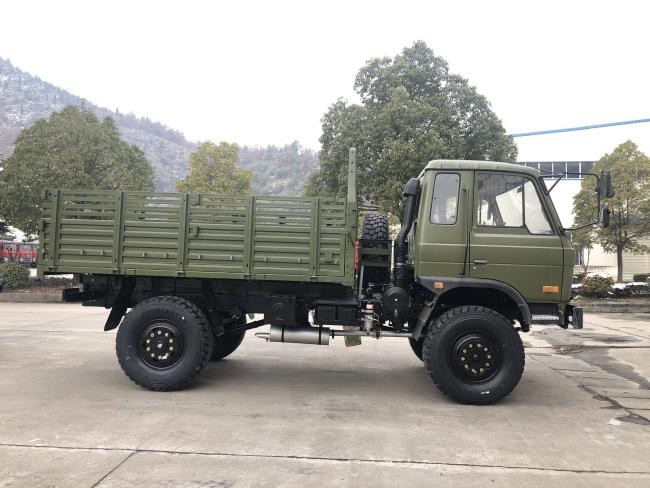

Four Wheel Drive Dongfeng Off Road Truck EQ2070G Military Truck Cummins 160HP 4X4 Transport Vehicle
EQ2070 Parameters Specifications
| Description | Military chassis |
| Drive type | 4x4,LHD |
| Cab | Flat roof,single row |
| Passenger | 3 persons |
| Wheelbase | 3600(mm) |
| Clutch | Φ350mm,Single disc clutch |
| Gearbox | 6 Speed,manual |
| Transfer case | Mechanical, two gears |
| Front axle(Empty load/full load) | 3425/2575 |
| Rear axle(Empty load/full load) | 3805/4905 |
| Oil tank | 145(L) |
| Tire | 12.5R20,with one spare tire |
| Engine model | EQB160-22,In-line six cylinder water-cooled intercooler diesel engine |
| Engine power | 118(kW)/160(hp) |
| Engine brand | CUMMINS |
| Fuel type | diesel |
| Displacement | 5900(ml) |
| Approach angle/departure angle | 35/33(°) |
| Front /rear suspension | 1400/1430(mm) |
| GVW | 8710(kg) |
| Max load capacity | 2500(kg) |
| Max tractive mass | 2500(kg) |
| Max speed | 91(km/h) |
| Min stable speed | 3(km/h) |
| Max gradient | 60% |
| Slope standing capacity | 40% |
| Min ground clearance | 305(mm) |
| Min turning radius | 7.5(m) |
| Max vertical obstacle clearance height | 550(mm) |
| Max trench crossing width | 700(mm) |
| Max wading depth | 1000(mm) |
| Max range | 800(km) |
Dongfeng four-wheel drive vehicle EQ2070 is favored by armed police, firefighting, etc. The troop carrier, material transport vehicle, oil tanker, water tanker, field cooking vehicle, power supply vehicle, etc. modified from the four-wheel drive chassis meet the needs of various major departments. This vehicle can be exported to Asia, Africa, Latin America and other harsh working conditions. The vehicle has stable performance, proper configuration, universal accessories, and is used for mining operations, desert exploration, and material and personnel transportation. The EQ2070 series can be equipped with 160/190 horsepower engines. EQ2070 is equipped with a central inflation and deflation system, which can inflate and deflate the front and rear axle tires respectively. A winch is optional. Customers can choose the corresponding configuration vehicle according to their actual situation.
