China Copper-based Low Resistance Heating Alloy Wire CuNi44/NC050/2.0842/C72150 Promising Future Prospects for sale

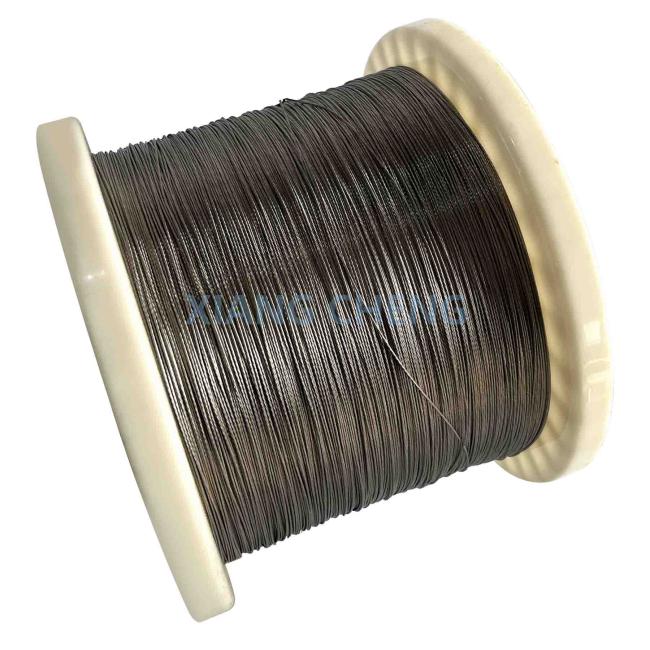

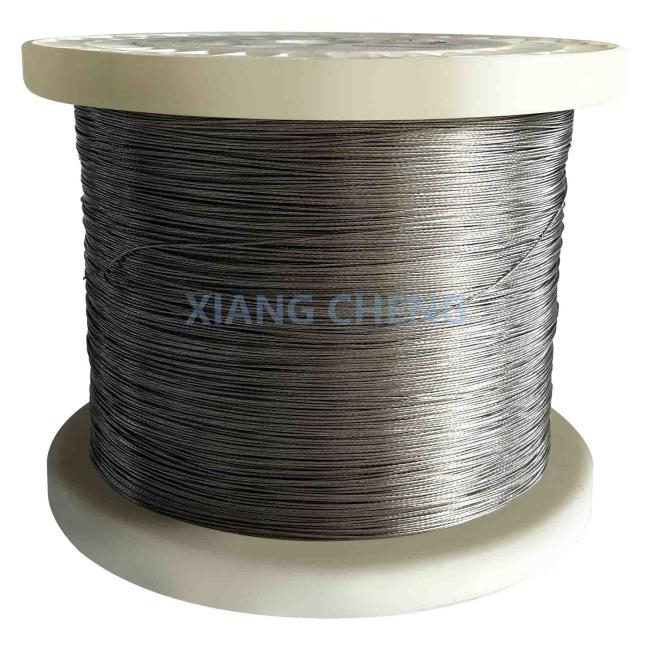

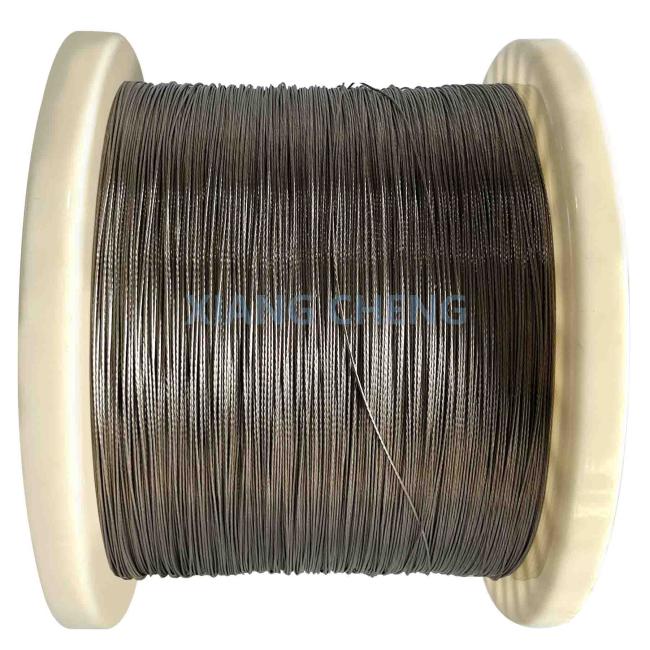

Copper-based Low Resistance Heating Alloy Wire CuNi44/NC050/2.0842/C72150 Promising Future Prospects

Price Negotiable

MOQ: 5kg

Delivery Time: 3 days

Brand: Senphus

Product Description

Copper-based Low Resistance Heating Alloy Wire CuNi44/NC050/2.0842/C72150 Promising Future Prospects

CuNi44 is a copper-nickel alloy with 44% nickel and 56% copper, known for its excellent electrical resistivity and thermal stability. It is widely used as a resistance alloy due to its consistent performance across a broad temperature range. The alloy offers exceptional resistance to oxidation and corrosion, even at elevated temperatures, making it reliable for harsh environments.

CuNi44 exhibits high mechanical strength, good ductility, and weldability, allowing it to be easily formed and fabricated into various components. Its low temperature coefficient of resistance ensures precise and stable electrical performance, making it ideal for precision resistors and temperature sensors.

Common applications include electrical heating elements, thermocouples, resistors, and components for measuring and control systems. Its corrosion resistance makes it suitable for marine and industrial applications. With its unique combination of electrical, thermal, and mechanical properties, CuNi44 is a versatile material for demanding industrial and electrical applications.

Chemical Composition Wt.% CuNi44	%	Ni	Cu	Mn
	Min
	Max	44	Rest	1

JIS

ASTM

ISO

DIN EN/DIN

NF EN/NF

GOST

CuNi44

NC050

BMn43-0.5

T71670

C7215

C72150

56Cu-44Ni

C72150

CuNi44Mn1

C72150

CuNi44Mn1

C72150

2.0842

CuNi44Mn1

C72150

МНМц43-0.5

Main physical properties:

Max continuous operating temperature ℃	400
Resistance temperature coefficient x 10^-5/℃(20℃-600℃)	<-6
Thermovoltage to copper at 20℃ in μV/K	-43
Thermal expansion coefficient ×10^-6/K(20℃-400℃)	15.0
Thermal conductance at 20℃ W/mK	23
Specific heat capacity at 20℃ J/gK	0.41

Some key features of CuNi44 include:

Excellent Corrosion Resistance‌:

High resistance to seawater and harsh environments.
Ideal for marine and offshore applications.

Good Mechanical Properties‌:

Offers high strength and ductility.
Suitable for structural components and piping systems.

Thermal Conductivity‌:

Effective in heat transfer applications.
Used in heat exchangers and condensers.

Electrical Conductivity‌:

Stable electrical properties across temperatures.
Applicable in electrical connectors and resistors.

Ease of Processing & Joining‌:

Easy to shape through hot and cold working.
Convenient for welding and brazing processes.

Applications:

Electronic Industry‌:

Used in resistors, potentiometers, and voltage stabilizers.
Ensures circuit stability and precision.

Communication Equipment‌:

Components such as attenuators and dummy resistors.
Enhances signal transmission quality and stability.

Automotive Manufacturing‌:

Oil level indicators, temperature sensors, and ECU components.
Improves vehicle safety and performance.

Industrial Applications‌:

Sensors and controllers in industrial automation.
High-temperature electronics like thermocouples and temperature sensors.

Marine and Offshore‌:

Corrosion-resistant components in shipbuilding and offshore structures.

Other Uses‌:

Thermocouples, wires, fuses, and more, catering to various industrial and daily needs.

Technical data table

Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
0.10	3.82	6.36	8.91	12.73	15.28	19.09	25.46	31.83	38.19	44.56	50.93	62.39
0.11	3.16	5.26	7.37	10.52	12.63	15.78	21.04	26.30	31.56	36.82	42.09	51.56
0.12	2.65	4.42	6.19	8.84	10.61	13.26	17.68	22.10	26.52	30.94	35.37	43.33
0.13	2.26	3.76	5.27	7.53	9.04	11.30	15.07	18.83	22.60	26.36	30.14	36.92
0.14	1.95	3.24	4.55	6.49	7.80	9.74	12.99	16.24	19.48	22.73	25.98	31.83
0.15	1.70	2.82	3.96	5.65	6.79	8.48	11.31	14.14	16.97	19.80	22.64	27.73
0.16	1.49	2.48	3.48	4.97	5.97	7.46	9.95	12.43	14.92	17.40	19.89	24.37
0.17	1.32	2.20	3.08	4.40	5.29	6.60	8.81	11.01	13.21	15.41	17.62	21.59
0.18	1.18	1.96	2.75	3.92	4.72	5.89	7.86	9.82	11.78	13.75	15.72	19.26
0.19	1.06	1.76	2.47	3.52	4.23	5.29	7.05	8.81	10.58	12.34	14.11	17.28
0.20	0.95	1.59	2.23	3.18	3.82	4.77	6.36	7.95	9.54	11.14	12.73	15.60
0.21	0.87	1.44	2.02	2.88	3.46	4.33	5.77	7.21	8.66	10.10	11.55	14.15
0.22	0.79	1.31	1.84	2.63	3.16	3.94	5.26	6.57	7.89	9.20	10.52	12.89
0.23	0.72	1.20	1.68	2.40	2.89	3.61	4.81	6.01	7.22	8.42	9.63	11.79
0.24	0.66	1.10	1.55	2.21	2.65	3.31	4.42	5.52	6.63	7.73	8.84	10.83
0.25	0.61	1.01	1.43	2.03	2.44	3.05	4.07	5.09	6.11	7.13	8.15	9.98
0.26	0.57	0.94	1.32	1.88	2.26	2.82	3.77	4.70	5.65	6.59	7.53	9.23
0.27	0.52	0.87	1.22	1.74	2.10	2.61	3.49	4.36	5.23	6.11	6.99	8.56
0.28	0.49	0.81	1.14	1.62	1.95	2.43	3.25	4.06	4.87	5.68	6.50	7.96
0.29	0.45	0.75	1.06	1.51	1.82	2.27	3.03	3.78	4.54	5.29	6.06	7.42
0.30	0.42	0.70	0.99	1.41	1.70	2.12	2.83	3.53	4.24	4.95	5.66	6.93
0.31	0.40	0.66	0.93	1.32	1.59	1.98	2.65	3.31	3.97	4.63	5.30	6.49
0.32	0.37	0.62	0.87	1.24	1.49	1.86	2.49	3.11	3.73	4.35	4.97	6.09
0.33	0.35	0.58	0.82	1.17	1.40	1.75	2.34	2.92	3.51	4.09	4.68	5.73
0.34	0.33	0.55	0.77	1.10	1.32	1.65	2.20	2.75	3.30	3.85	4.41	5.40
0.35	0.31	0.51	0.73	1.03	1.25	1.55	2.08	2.60	3.11	3.63	4.16	5.09
0.36	0.29	0.49	0.69	0.98	1.18	1.47	1.96	2.46	2.94	3.43	3.93	4.81
0.37	0.28	0.46	0.65	0.93	1.12	1.39	1.86	2.33	2.79	3.25	3.72	4.56
0.38	0.26	0.44	0.62	0.88	1.06	1.32	1.76	2.20	2.64	3.08	3.53	4.32
0.40	0.24	0.39	0.56	0.79	0.95	1.19	1.59	1.99	2.38	2.78	3.18	3.90
0.41	0.23	0.37	0.53	0.76	0.91	1.13	1.51	1.89	2.27	2.65	3.03	3.71
0.42	0.22	0.36	0.51	0.72	0.87	1.08	1.44	1.80	2.16	2.52	2.89	3.54
0.43	0.21	0.34	0.48	0.69	0.83	1.03	1.38	1.72	2.06	2.41	2.75	3.37
0.44	0.20	0.32	0.46	0.66	0.79	0.98	1.31	1.64	1.97	2.30	2.63	3.22
0.45	0.19	0.31	0.44	0.63	0.75	0.94	1.26	1.57	1.88	2.20	2.52	3.08
0.46	0.18	0.30	0.42	0.60	0.72	0.90	1.20	1.50	1.80	2.10	2.41	2.95
0.47	0.17	0.28	0.40	0.58	0.69	0.86	1.15	1.44	1.72	2.01	2.31	2.82
0.48	0.17	0.27	0.39	0.55	0.66	0.82	1.10	1.38	1.65	1.93	2.21	2.71
0.49	0.16	0.26	0.37	0.53	0.64	0.79	1.06	1.33	1.59	1.85	2.12	2.60
0.50	0.15	0.25	0.36	0.51	0.61	0.76	1.01	1.27	1.52	1.78	2.04	2.50
0.51	0.15	0.24	0.34	0.49	0.59	0.73	0.98	1.22	1.46	1.71	1.96	2.40
0.52	0.14	0.23	0.33	0.47	0.57	0.70	0.94	1.18	1.41	1.65	1.88	2.31
0.53	0.14	0.22	0.32	0.45	0.54	0.67	0.91	1.13	1.35	1.59	1.81	2.22
0.54	0.13	0.22	0.31	0.44	0.52	0.65	0.87	1.09	1.30	1.53	1.75	2.14
0.55	0.13	0.21	0.29	0.42	0.51	0.63	0.84	1.05	1.26	1.47	1.68	2.06
0.56	0.12	0.20	0.28	0.41	0.49	0.60	0.81	1.02	1.21	1.42	1.62	1.99
0.57	0.12	0.19	0.27	0.39	0.47	0.58	0.78	0.98	1.17	1.37	1.57	1.92
0.58	0.11	0.19	0.27	0.38	0.45	0.56	0.76	0.95	1.13	1.32	1.51	1.85
0.59	0.11	0.18	0.26	0.37	0.44	0.54	0.73	0.91	1.09	1.28	1.46	1.79
0.60	0.11	0.18	0.25	0.35	0.42	0.53	0.71	0.88	1.06	1.24	1.41	1.73

Tolerance of ohm/m: ±5%
Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1
