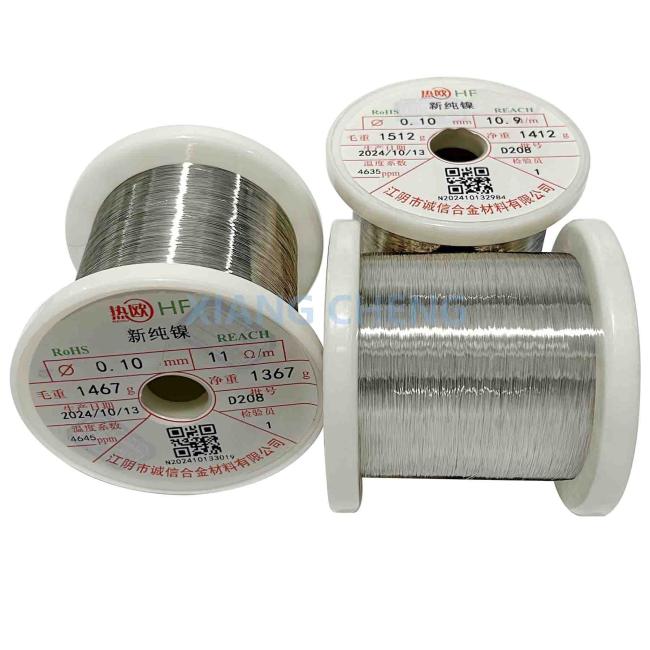

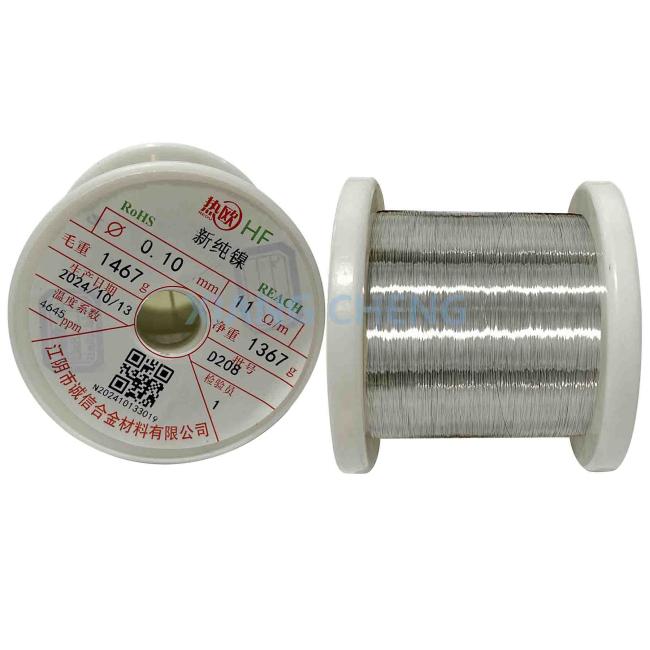

Nickel 205 N02205 Wire With High Purity For Marine And Aerospace Industries
Nickel 205 N02205 Wire With High Purity For Marine And Aerospace Industries
Nickel 205 (N02205) Wire is a high-purity nickel alloy (minimum 99.9% nickel) designed for applications requiring excellent corrosion resistance, high thermal and electrical conductivity, and good mechanical properties. It offers superior resistance to alkalis, acids, stress corrosion cracking, and hydrogen embrittlement, making it ideal for use in harsh chemical environments. The wire exhibits moderate tensile strength, high ductility, and non-magnetic properties, ensuring reliability in sensitive electronic and industrial applications. Nickel 205 is easy to machine, weld, and fabricate, allowing it to be formed into fine wires or complex shapes. It performs well in elevated temperatures up to 600°C (1112°F) and is commonly used in electrical components, resistance wires, connectors, and chemical processing equipment. Its combination of high purity, durability, and excellent conductivity makes Nickel 205 a preferred material for demanding applications in electronics, aerospace, and chemical industries.
Nominal Chemical Composition (%)
| Alloy | Ni | Mn | Fe | Si | Cu | C | Ti |
| Ni205 | ≥ 99.6 | ≤ 0.20 | ≤ 0.20 | ≤ 0.10 | ≤ 0.10 | ≤ 0.05 | ≤ 0.05 |
Size Range
| Type | Dia. (mm) | Width (mm) | Thickness (mm) |
| Wire | 0.04 - 12.0 | - | - |
| Ribbon | - | 2.0 | ≥ 0.08 |
Physical Properties (at room temperature)
| Alloy | Density (g/cm3) | Thermal Conductivity (W/m K) | Thermal Linear Expansion Coeff. (20-95 ℃) (10-6/K) | Electrical Resistivity at 20 ℃ (μΩ-cm) |
| Ni205 | 8.89 | 75.00 | 13.3 | 8.9 |
Mechanical Properties (for cold drawn annealed wire)
| Alloy | Tensile strength (N/mm2) | Elongation (% at L0=100mm) | ||
| Min | Max | Min | Max | |
| Ni205 | 400 | 530 | 20 | 30 |
Key Features of Nickel 205 (N02205) Pure Nickel Wire:
- High Purity (Minimum 99.9% Nickel)
Ensures superior resistance to corrosion and chemical reactions.
Ideal for high-purity and contamination-sensitive applications.
- Excellent Corrosion Resistance
Highly resistant to alkalis, particularly caustic soda, and effective against organic and inorganic acids.
Resistant to stress corrosion cracking and hydrogen embrittlement.
- Good Mechanical Properties
Moderate tensile strength combined with high ductility for ease of forming and fabrication.
Performs reliably under both high and low-temperature conditions.
- High Thermal and Electrical Conductivity
Provides excellent conductivity, making it ideal for electrical and electronic applications such as connectors and electrodes.
- Non-Magnetic
Essential for applications requiring non-magnetic materials, such as sensitive electronic components.
- Ease of Fabrication
Easily machinable and weldable, allowing for a wide range of applications, including fine wire and complex shapes.
- Temperature Resistance
Retains mechanical and chemical integrity at elevated temperatures up to 600°C (1112°F).
Applications:
- Electrical and Electronics: Connectors, resistance wires, and electrodes.
- Chemical Processing: Corrosion-resistant components in alkaline and acidic environments.
- Aerospace and Marine: Non-magnetic, high-purity components in harsh environments.
- Specialized Applications: Battery components, medical devices, and high-performance industrial equipment.
