Hastelloy X/N06002/2.4465 Bar/Rod/Wire/Forging/Plate/Strip With Superior Heat Corrosion Resistance For Demanding
Hastelloy X Bar/Rod/Wire/Forging/Plate/Strip With Superior Heat And Corrosion Resistance For Demanding Applications
Hastelloy X is a nickel-chromium-iron-molybdenum alloy known for excellent oxidation resistance, high-temperature strength, and fabricability. It performs reliably in temperatures up to 1200°C (2200°F), making it ideal for aerospace, gas turbines, and industrial furnaces. The alloy resists oxidation, carburization, and chloride stress corrosion cracking. It is easily weldable, retains ductility after prolonged exposure, and maintains structural integrity under extreme thermal cycling. Available as bar, rod, wire, forging, plate, and strip, it is widely used in combustion chambers, jet engine parts, exhaust ducts, and chemical process equipment. Hastelloy X is also suitable for components exposed to reducing and mildly oxidizing environments, offering long service life and high reliability.
| Chemical Composition Wt.% | % | Ni | Cr | Fe | C | Mn | Si | Mo | Cu | P | S | Co | B | Ti | Al | W |
| Min | Bal. | 20.5 | 17 | 0.05 | 8 | 0.5 | 0.2 | |||||||||
| Max | Bal. | 23 | 20 | 0.15 | 1 | 1 | 10 | 0.5 | 0.025 | 0.015 | 2.5 | 0.01 | 0.15 | 0.5 | 1 |
| Physical Constants | Density(g/cm³) | 8.28 | |||||
| Melting Range(℃) | 1295-1381 | ||||||
| Minimum mechanical properties of alloy at room temperature | Typical mechanical properties | Tensile strength Rm N/mm² | Yield strength RP 0.2 N/mm² | Elongation A5 % | ||||
| Annealing treatment | 750 | 310 | 30 | |||||
Overview of Hastelloy X
Hastelloy X is a nickel-chromium-iron-molybdenum alloy specifically engineered for high-temperature strength and oxidation resistance, especially in aerospace and industrial furnace applications. It performs well under both oxidizing and carburizing conditions, even at elevated temperatures up to ~1200°C (2200°F).
Key Features (All Forms)
Exceptional High-Temperature Strength
- Maintains strength and structural integrity up to 1200°C (2200°F).
- Excellent creep resistance and thermal stability in hot, high-stress environments.
Superior Oxidation and Carburization Resistance
- Resists oxidation, carburization, and nitriding even during prolonged exposure at high temperatures.
- Suitable for both oxidizing and neutral atmospheres.
Good Fabricability and Weldability
- Easily fabricated via cold or hot working and welded using standard techniques.
- Outstanding weldability, with minimal risk of post-weld cracking.
Resistance to Stress-Related Corrosion
- Good resistance to oxidation-induced stress corrosion cracking.
- Stable under thermal cycling, making it ideal for aerospace turbine and engine parts.
Form-Specific Applications
Bar / Rod
- Used in turbine engine components, structural supports, and furnace hardware.
- High strength and oxidation resistance for rotating and load-bearing parts.
Wire
- Ideal for spring wire, furnace fixtures, and control cables.
- Excellent resistance to high-temperature fatigue and creep.

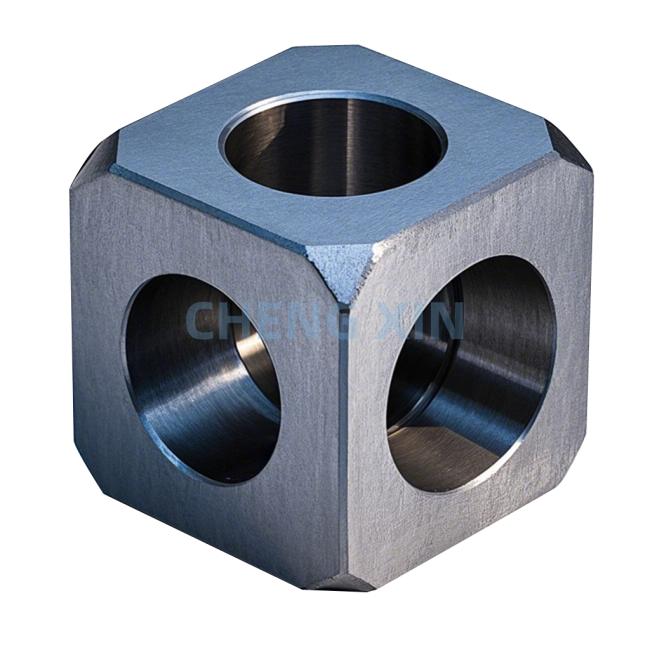

Forging
- Forged into rings, blades, flanges, combustion chambers, and jet engine parts.
- Maintains strength and form even under mechanical and thermal stress.

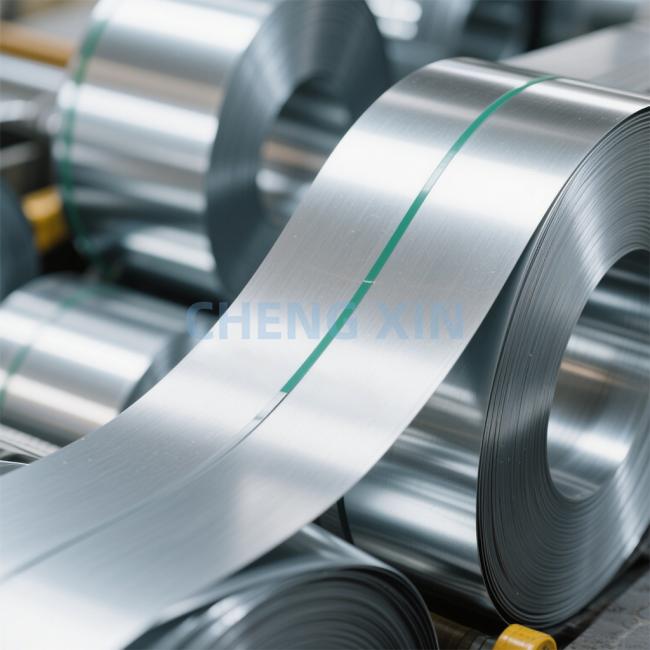

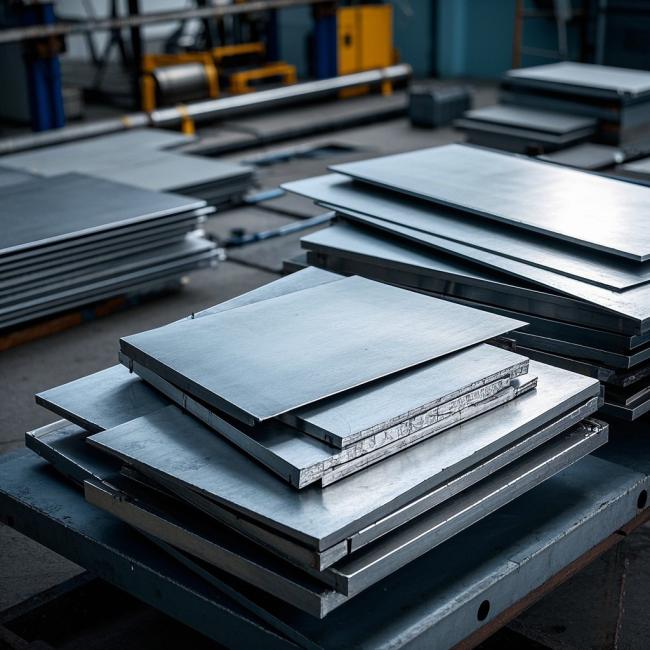

Plate / Strip
- Used in combustion liners, ducts, heat exchangers, and thermal protection panels.
- Great resistance to hot gas corrosion and thermal shock.
