360kg Mini Dumper CE Certification Hydraulic Crawler for Machine Weight
Price:
$2,235.00/sets 1-9 sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
HUAQI
Product Description
Discounted
Brief introduction

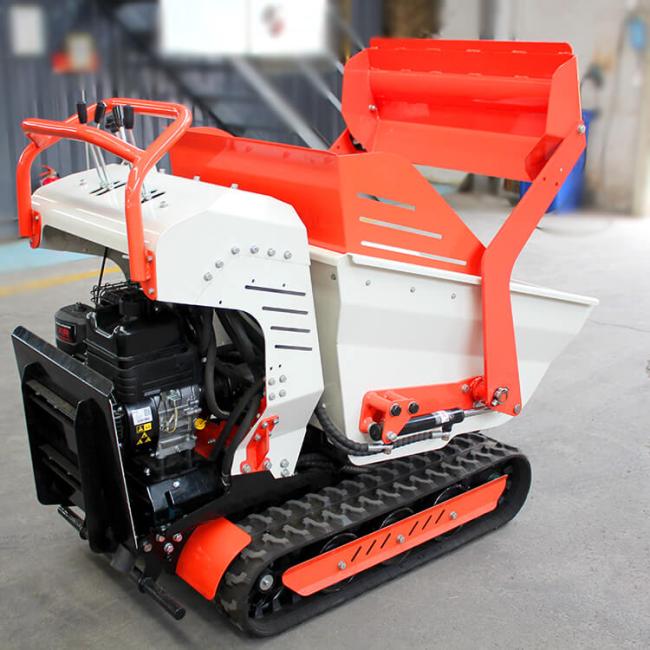

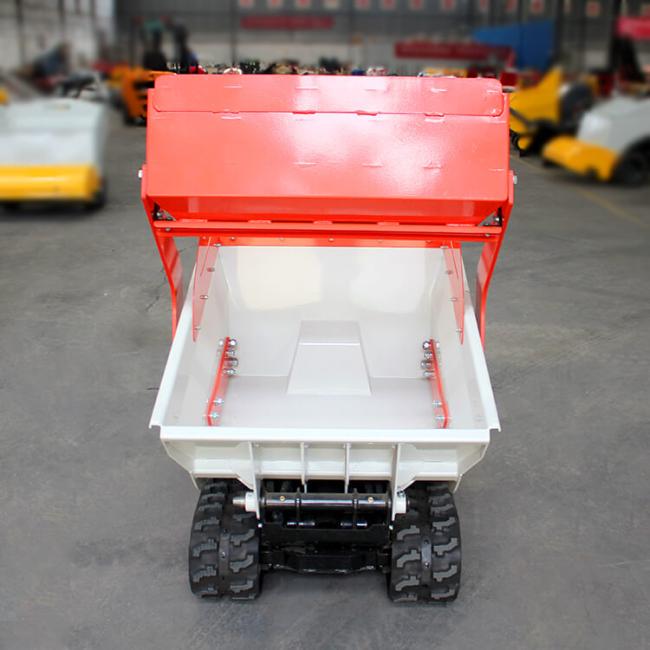

HQ-MD800 Mini Track Dumper 800kg CE Certification Hydraulic Crawler Mini Dumper is equipped with Briggs & Stratton gasoline engine which is characterized with EPA standards,strong power,low noise and cheap maintenance costs.
The body is small and easy to operate. It can be easily and quickly attached to various functional accessories to achieve various tasks. It is widely used in gardens, manufacturing, construction sites, recycling, gardens, roads, construction, farms and other industrial fields.
Buy It Now
Details Images
Product Parameters
Parameter | Value |
Max. Operating Mass | 860 kg |
Transport Mass | 360 kg |
Overall (LxWxH) | 2112 x 832 x 1344 mm |
Transport Dimensions (LxWxH) | 1480 x 832 x 1344 mm |
Pump | Tandem gear pump (4cc x2) 3600rpm |
Motor | Disc distribution cycloid motor (x2) |
Working Pressure | Max. 180 bar |
Hydraulic Flow | 28.8 L |
Motor Torque | 645 Nm each at 180 bar |
Driving | Hydraulic |
Steering | Fully hydraulic / control valve |
Forward | 3.2 km/h |
Reverse | 3.2 km/h |
Gradeability | 15 degrees |
Ground Clearance | 71 mm |
Engine Model | BTIGGS STRATTON XR950 |
Emission Accordance | EPA |
Rated Power | 6.5 HP / 3600rpm |
Displacement | 208 cc |
Cylinder x Stroke | 68.3 x 55.9 mm |
Fuel Tank Volume | 3.1 L |
Oil Volume | 0.6 L |
Net Weight | 16 Kg |
Startup | Reversing & E-starter |
Hopper Volume | 270 L |
Company Profile
FAQ
1. Are you original manufacturer? A: Yes, we are Shandong Huaqi Machinery Co.,Ltd. 2. What kind of payment terms can be accepted? A: Normally we can worked on T/T 3. Which incoterms 2010 terms can we work? A: Normally we can worked on FOB (QINGDAO), CFR, CIF 4. What about the delivery time? A: Within 7-10 days after receiving the deposit 5. What about the warranty time? A: 1 year or 2000 hours. We shoulder all costs during the warranty period, include the freight. 6. What about the Minimum Order Quantity? A: The MOQ is 1 unit.
