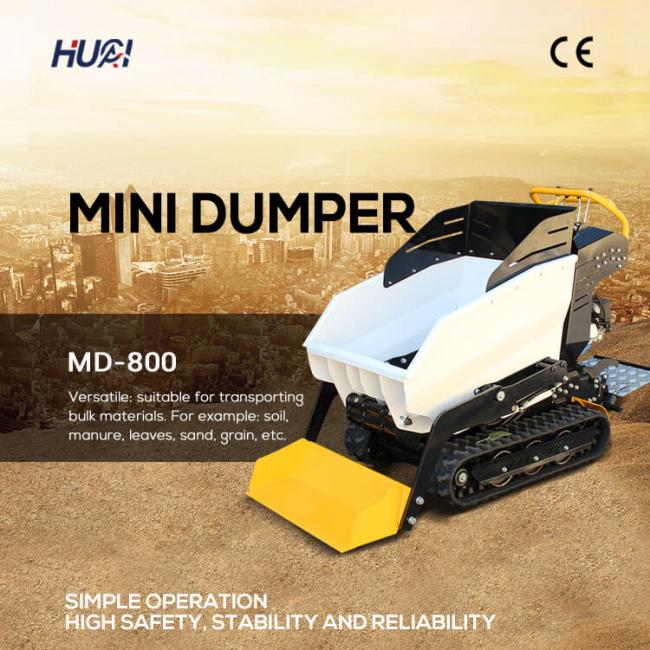

500kg Mini Crawler Transporter Multifunctional Mini Track Dumper with YANMAR Engine
Price:
$2,060.00/sets 1-19 sets
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
HUAQI
Product Description
Product Description
Discounted
Specification
Parameter | Value |
Max. Operating Mass | 860 kg |
Transport Mass | 360 kg |
Overall (LxWxH) | 2112 x 832 x 1344 mm |
Transport Dimensions (LxWxH) | 1480 x 832 x 1344 mm |
Pump | Tandem gear pump (4cc x2) 3600rpm |
Motor | Disc distribution cycloid motor (x2) |
Working Pressure | Max. 180 bar |
Hydraulic Flow | 28.8 L |
Motor Torque | 645 Nm each at 180 bar |
Driving | Hydraulic |
Steering | Fully hydraulic / control valve |
Forward | 3.2 km/h |
Reverse | 3.2 km/h |
Gradeability | 15 degrees |
Ground Clearance | 71 mm |
Engine Model | BTIGGS STRATTON XR950 |
Emission Accordance | EPA |
Rated Power | 6.5 HP / 3600rpm |
Displacement | 208 cc |
Cylinder x Stroke | 68.3 x 55.9 mm |
Fuel Tank Volume | 3.1 L |
Oil Volume | 0.6 L |
Net Weight | 16 Kg |
Startup | Reversing & E-starter |
Hopper Volume | 270 L |
FAQ
1.Q:Can the factory support mass production?
Can i purchase a customized sample first? A:Dear friends, our company can support mass production. It can mass produce 200+Mini Dumper in one month, can support customization, can customize colors and logos, etc. 2.Q:Can it be transported to my door?
I want to get my favorite Mini Dumper soon? A:Of course, my friend, but if your family is located very close to the port, we suggest that you can go directly to the port to transport your goods, so you can save a lot of money! If the distance is long, you can find an inland transportation company by yourself, and we can communicate with him; we can also find an agency for you, but the toll will be very high (not recommended)during transportation, we will not charge any intermediate fees and additional service fees other than freight. We just want you to get your favorite Mini Dumper earlier.
3.Q:How can i guarantee after-sales after i buy it? A:Dear friends, our machine has a one-year/1000h work warranty period. During this time, if there is any problem
