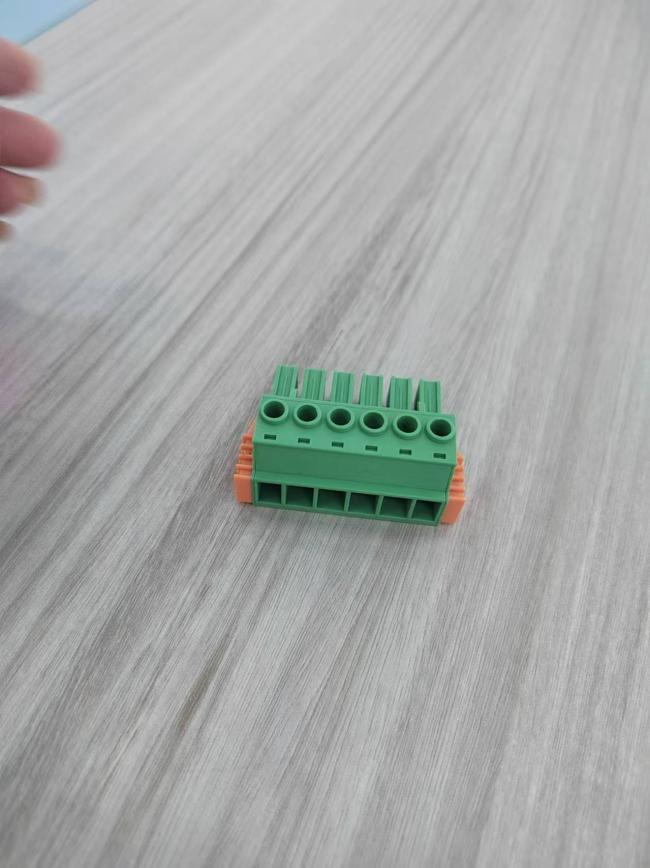

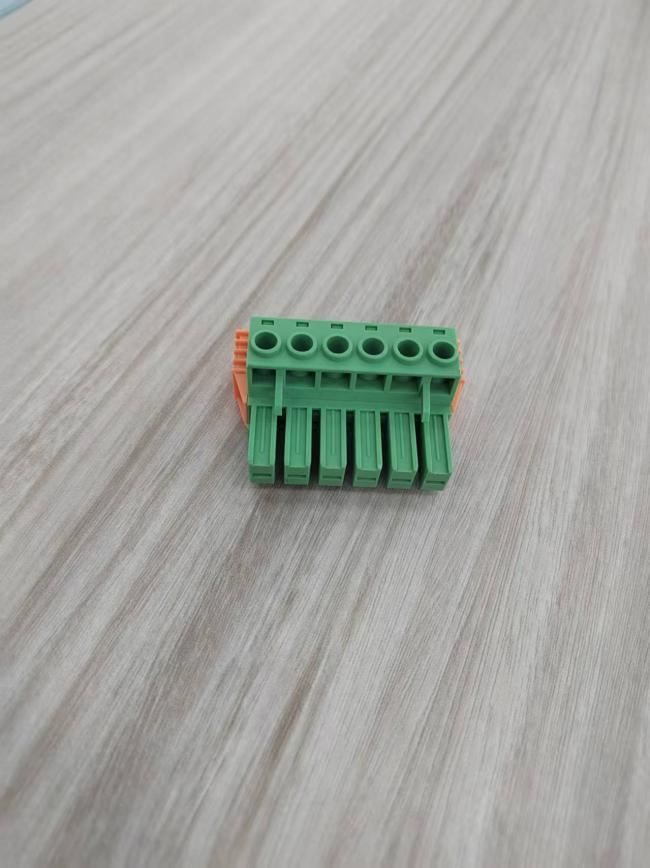

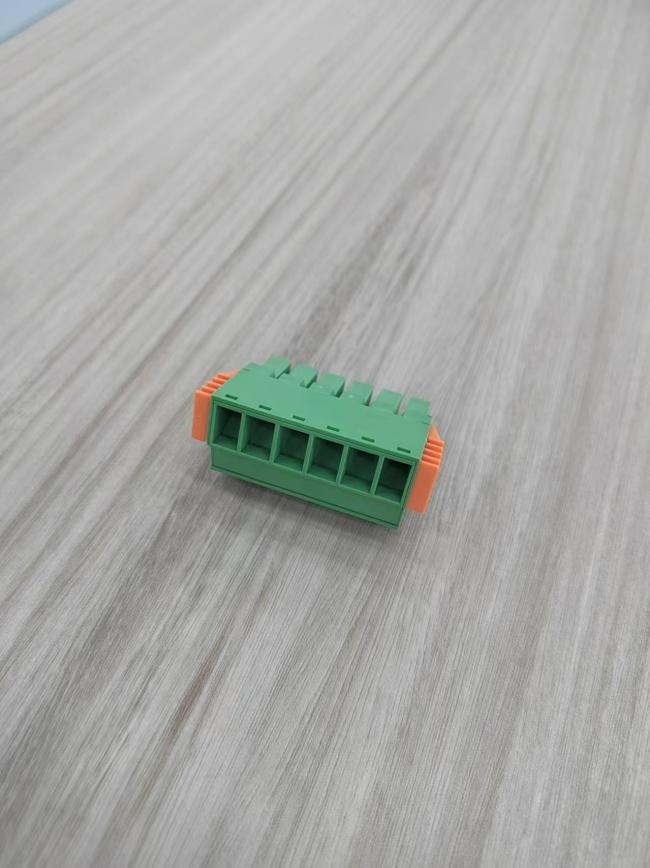

KF2EDGSKTG-7.62 600V Promotion 7.62mm 2p-24p Pluggable Terminal Block Male And Female
KF2EDGSKTG-7.62 600V Promotion 7.62mm 2p-24p Pluggable Terminal Block Male And Female
Product Specifications
| Pitch | 7.62mm |
| Poles | 2P-24P |
| Number of Contacts | 2-24 |
| Rated voltage | 300V |
| Reated current | 30A |
| Pin Dimensions) [mm | 3.7 |
| Temperature range | -40°C~+105°C |
| (Impulse wiithstand voltagea) [KV] |
2.5 |
| Supply Ability | 100000 Piece/ per Week |
| Stripping Length) [mm] | 15-16 |
| Contactive Coating | Tin Plated |
| Withstanding VoltagWithstanding Voltag | 2200V/1Min |
| PCB Hole Diameter) [mm] | 1.4 |
Product Application
-
industrial controls
-
lamp lighting
-
instrumentation
-
consumer electronics telecom equipment
-
transportation
Advantages
The KF2EDGSKTG-7.62, a versatile 7.62mm pitch pluggable terminal block designed for 600V applications and available in 2p to 24p configurations, offers significant advantages when it comes to wiring and connectivity. Here's a detailed English description of its wiring advantages:
Wiring Advantages of KF2EDGSKTG-7.62
- High Voltage Capability:
- With a rating of 600V, the KF2EDGSKTG-7.62 is suitable for a wide range of industrial and commercial applications requiring higher voltage handling capabilities. This ensures safe and reliable operation in demanding environments.
- Pluggable Design:
- The pluggable design simplifies the wiring process significantly. Male and female connectors can be easily mated and disconnected, allowing for quick installation, maintenance, or replacement without the need for specialized tools or time-consuming soldering.
- Flexible Configuration:
- Offering configurations ranging from 2p to 24p, the KF2EDGSKTG-7.62 provides unparalleled flexibility to accommodate different wiring needs. Whether connecting a few wires or a complex network, the terminal block can be customized to fit the specific application.
- Space-Saving Design:
- The 7.62mm pitch allows for a compact design that saves valuable panel space. In cramped or crowded electrical enclosures, this feature is crucial for maintaining an organized and efficient wiring layout.
- Secure Connections:
- The KF2EDGSKTG-7.62 employs robust locking mechanisms to ensure secure connections between the male and female connectors. This minimizes the risk of accidental disconnection or loosening under vibration or other environmental stresses.
- Easy Wire Management:
- The terminal block's design facilitates easy wire management. Wires can be neatly organized and routed through the terminal block, reducing clutter and improving the overall aesthetics of the wiring system.
- Durability & Reliability:
- Made from high-quality materials, the KF2EDGSKTG-7.62 is designed for long-term durability and reliability. It can withstand harsh industrial environments, including exposure to dust, moisture, and temperature extremes.
- Scalability:
- As system requirements evolve, the KF2EDGSKTG-7.62's modular design allows for easy scalability. Additional terminal blocks can be added to expand the system's capacity without the need for extensive rewiring or replacement.
- Cost-Effective:
- While offering superior performance and features, the KF2EDGSKTG-7.62 is also cost-effective. Its efficient design and ease of installation help to minimize labor costs and downtime, making it an attractive option for businesses looking to optimize their wiring solutions.
- Certified Quality:
- The KF2EDGSKTG-7.62 complies with international safety standards and is certified for use in various industries. This ensures that the terminal block meets the highest quality standards and is safe for use in a wide range of applications.
In conclusion, the KF2EDGSKTG-7.62 600V promotion 7.62mm 2p-24p pluggable terminal block, with its combination of high voltage capability, pluggable design, flexible configuration, and other advantages, offers a superior wiring solution for a variety of industrial and commercial applications.
Drawing
Package Details
-
Pluggable Terminal Blocks: Inner Box first , then Inner Carton, The last, Export Carton.
Take strong bags/boxes/cartons for the package, in order to reduce the damage during the shipments. Tape and reel packing, Clamshell packing, Pallet packing, etc are available.
-
Export Carton size:43*27*27/36CM
-
Port: NINGBO/SHANGHAI
FAQ
Q: The nature of the company (factory/trading)?
A: Integrated industry and trade.
Q: Packing details of the product?
A: Use a special export carton, which is stronger, and the weight of a single piece does not exceed 25KG (by air).
Q: The customs code of the product?
A: 8536901900.
Q: The mass production time of the product?
A: Usually 2 weeks - 4 weeks.
Q: Is the sample provided for free, and the sample delivery date?
A: Small amount samples can be given away for free, and samples can be delivered within 3-5 days.
Q: Does the product support OEM customization?
A: YES.
Q: Do you support MOQ?
A: YES.
Q: Is there a product quotation or electronic sample catalog?
A: Customers need it at any time and can provide it at any time.
Q: Does the company have quality control standards and corresponding management systems?
A: Of course.
