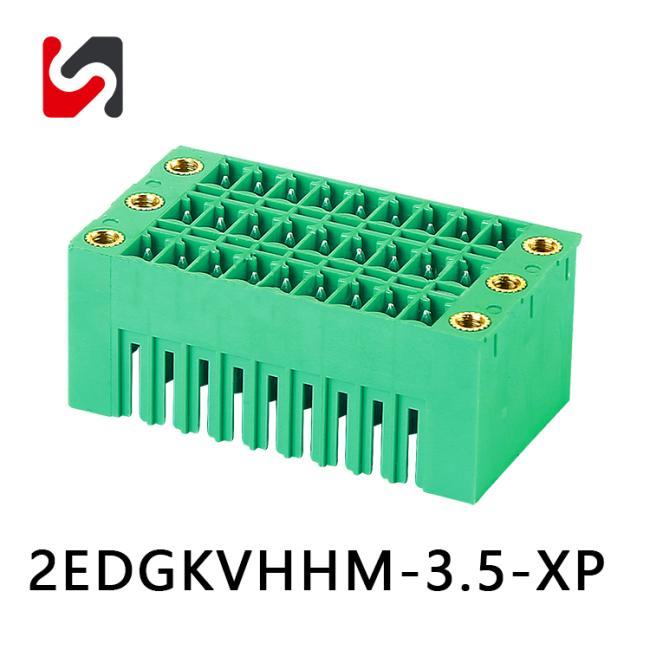

KF2EDGKVHHM-3.5 300V Double Row Pcb Board Screw Terminals Male Female With Flang
KF2EDGKVHHM-3.5 300V Double Row Pcb Board Screw Terminals Male Female With Flang
Product Specifications
| Pitch | 3.5mm |
| Poles | 2P-24P |
| Number of Contacts | 2-24 |
| Rated voltage | 300V |
| Reated current | 8A |
| Pin Dimensions) [mm | 3.7 |
| Temperature range | -40°C~+105°C |
| (Impulse wiithstand voltagea) [KV] |
2.5 |
| Supply Ability | 100000 Piece/ per Week |
| Stripping Length) [mm] | 15-16 |
| Contactive Coating | Tin Plated |
| Withstanding VoltagWithstanding Voltag | 2200V/1Min |
| PCB Hole Diameter) [mm] | 1.4 |
Product Application
-
industrial controls
-
lamp lighting
-
instrumentation
-
consumer electronics telecom equipment
-
transportation
Advantages of double row plug in terminal blocks
The KF2EDGKVHHM-3.5 300V Double Row PCB Board Screw Terminals, featuring both male and female connectors equipped with flanges, represent a superior solution for high-reliability electrical connections in a variety of applications. These terminals offer a combination of exceptional features and advantages that make them an ideal choice for professionals seeking efficiency, durability, and versatility in their PCB assemblies.
Product Features:
-
Double Row Design: The double row configuration doubles the connectivity options within a compact footprint, allowing for a more organized and space-efficient wiring layout on your PCB board. This design facilitates the connection of multiple wires or cables, reducing clutter and enhancing overall assembly aesthetics.
-
High Voltage Capability (300V): Rated for up to 300V, these terminals are suitable for applications requiring high voltage handling capabilities. They ensure safe and reliable transmission of electrical signals or power, even under demanding conditions.
-
Screw Terminals for Secure Connections: The use of screw terminals provides a robust and secure connection mechanism. By tightening the screws, users can achieve a firm grip on the wires, minimizing the risk of loose connections or accidental disconnections. This feature enhances the overall stability and reliability of the electrical connections.
-
Male & Female Connectors with Flanges: The inclusion of both male and female connectors with flanges offers greater flexibility in PCB design and assembly. The flanges provide additional support and stability, helping to secure the terminals in place and prevent accidental movement or damage during installation or operation.
-
Easy Installation & Maintenance: The design of these terminals simplifies installation and maintenance processes. The screw terminals make wire insertion and tightening straightforward, while the double row configuration and flanges facilitate organized and efficient assembly. Additionally, their durable construction ensures long-term reliability, reducing the need for frequent maintenance or replacement.
Advantages:
- Versatility: Suitable for a wide range of applications, including industrial control systems, power distribution networks, and automotive electronics, among others.
- Enhanced Safety: High voltage rating and secure screw connections contribute to safer electrical connections, reducing the risk of electrical hazards.
- Space-Saving: The double row design maximizes the use of available space on the PCB board, enabling more compact and efficient designs.
- Durability: Constructed for long-term use, these terminals withstand the rigors of daily operation and harsh environments.
- Cost-Effective: Their combination of reliability, versatility, and ease of installation makes them a cost-effective solution for electrical connection needs.
In summary, the KF2EDGKVHHM-3.5 300V Double Row PCB Board Screw Terminals with Male Female Connectors and Flanges are a comprehensive solution for professionals seeking high-performance, reliable, and space-efficient electrical connections in their PCB assemblies.
Drawing
Package Details
-
Pluggable Terminal Blocks: Inner Box first , then Inner Carton, The last, Export Carton.
Take strong bags/boxes/cartons for the package, in order to reduce the damage during the shipments. Tape and reel packing, Clamshell packing, Pallet packing, etc are available.
-
Export Carton size:43*27*27/36CM
-
Port: NINGBO/SHANGHAI
