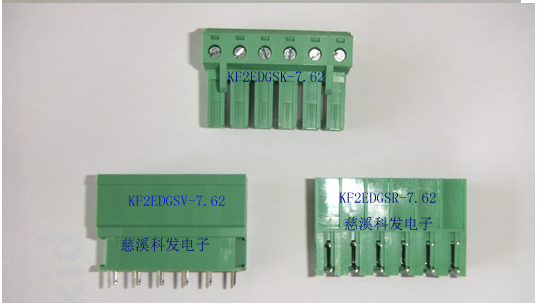

2EDGSV-7.62 300V Hot Sale 7.62mm Pitch Pluggable Terminal Blocks Connector
2EDGSV-7.62 300V Hot Sale 7.62mm Pitch Pluggable Terminal Blocks Connector
Product Specifications
| Pitch | 7.62mm |
| Poles | 2P-24P |
| Number of Contacts | 2-24 |
| Rated voltage | 300V |
| Reated current | 10A |
| Pin Dimensions) [mm | 3.7 |
| Temperature range | -40°C~+105°C |
| (Impulse wiithstand voltagea) [KV] |
2.5 |
| Supply Ability | 100000 Piece/ per Week |
| Stripping Length) [mm] | 15-16 |
| Contactive Coating | Tin Plated |
| Withstanding VoltagWithstanding Voltag | 2200V/1Min |
| PCB Hole Diameter) [mm] | 1.4 |
Product Application
-
industrial controls
-
lamp lighting
-
instrumentation
-
consumer electronics telecom equipment
-
transportation
Advantages
The 2EDGSV-7.62 300V Hot Sale 7.62mm Pitch Pluggable Terminal Blocks Connector boasts an array of advantageous features that make it an ideal choice for a wide spectrum of electrical and electronic applications. Here are the key highlights outlining its superior connectivity capabilities:
-
High Voltage Compatibility: With a rated voltage of 300V, this connector ensures reliable performance in medium-voltage environments, making it suitable for demanding power distribution and control systems where safety and durability are paramount.
-
Versatile Pitch Design: Featuring a standard 7.62mm (0.3") pitch, these terminal blocks offer excellent space utilization, allowing for compact installations and reducing the overall footprint of your wiring harness. They seamlessly integrate into various panel layouts, enhancing design flexibility.
-
Pluggable Design: The pluggable nature of these connectors simplifies installation and maintenance procedures significantly. Users can quickly connect or disconnect wires without the need for tools, minimizing downtime and facilitating efficient troubleshooting.
-
Secure Connection: Equipped with robust terminals that ensure a secure grip on wires, these terminal blocks prevent accidental dislodgement, even under vibration or shock conditions. This ensures a stable and reliable electrical connection over extended periods.
-
Easy Wire Management: The design of the terminal blocks facilitates easy wire insertion and organization, minimizing the risk of tangling or miswiring. This not only improves work efficiency but also enhances the overall aesthetic appeal of the installation.
-
Durability & Longevity: Crafted from high-quality materials, the 2EDGSV-7.62 connectors are built to withstand harsh industrial environments, resisting corrosion, wear, and tear. This ensures a long service life, reducing the need for frequent replacements and lowering maintenance costs.
-
Cost-Effective Solution: Despite their superior performance and durability, these terminal blocks are competitively priced, offering an excellent value proposition for customers seeking to optimize their electrical connection systems without compromising on quality.
In summary, the 2EDGSV-7.62 300V Hot Sale 7.62mm Pitch Pluggable Terminal Blocks Connector combines high-voltage compatibility, versatile design, secure connections, ease of use, durability, and cost-effectiveness into a single, powerful package. It is the ideal choice for professionals seeking reliable, efficient, and cost-saving electrical connection solutions.
Drawing
Package Details
-
Pluggable Terminal Blocks: Inner Box first , then Inner Carton, The last, Export Carton.
Take strong bags/boxes/cartons for the package, in order to reduce the damage during the shipments. Tape and reel packing, Clamshell packing, Pallet packing, etc are available.
-
Export Carton size:43*27*27/36CM
-
Port: NINGBO/SHANGHAI
FAQ
Q: The nature of the company (factory/trading)?
A: Integrated industry and trade.
Q: Packing details of the product?
A: Use a special export carton, which is stronger, and the weight of a single piece does not exceed 25KG (by air).
Q: The customs code of the product?
A: 8536901900.
Q: The mass production time of the product?
A: Usually 2 weeks - 4 weeks.
Q: Is the sample provided for free, and the sample delivery date?
A: Small amount samples can be given away for free, and samples can be delivered within 3-5 days.
Q: Does the product support OEM customization?
A: YES.
Q: Do you support MOQ?
A: YES.
Q: Is there a product quotation or electronic sample catalog?
A: Customers need it at any time and can provide it at any time.
Q: Does the company have quality control standards and corresponding management systems?
A: Of course.
