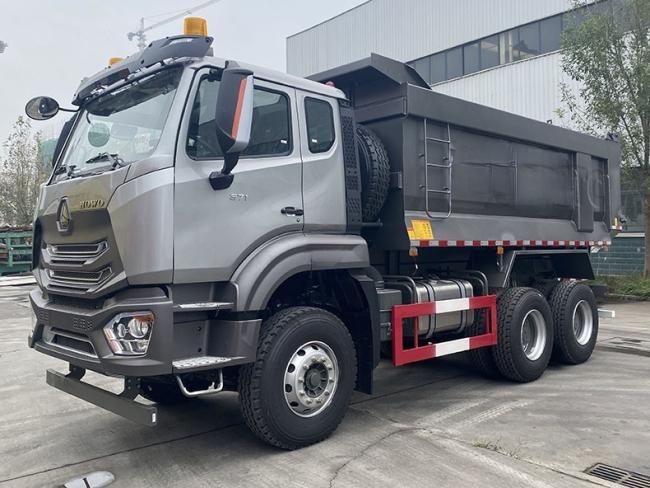

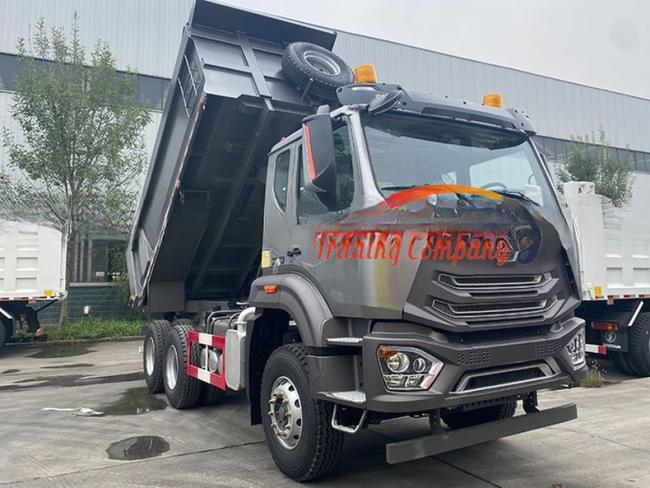

35 Ton 6X4 371HP Air Suspension Sinotruk Hohan Dump Truck Manual for Mining
Price:
$18,500.00/units 1-1 units
MOQ:
1 Unit
Delivery Time:
10 Days
Brand:
hohan
Product Description
Chinese 35 Ton 6X4 371HP Air Suspension Sinotruk Hohan Dump Truck Manual for Mining
|
Engine
|
Engine model:WD615.47, Euro 2 emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water
|
|
|
cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
|
||
|
Maximum output:371S (247kW) at 2200 rpm
|
||
|
Maximum torque: 1350Nm at 1100-1600rpm
|
||
|
Bore: 126mm Stroke: 130mm
|
||
|
Displacement: 9.726L
|
||
|
Compression ratio: 17.5:1
|
||
|
Specific fuel consumption: ≤198g/kWh
|
||
|
Engine oil filling quantity: 23L
|
||
|
Air compressors: WABCO Twin cylinders air compressors;
|
||
|
Cooling system filling quantity(long-term filling): 40L
|
||
|
Clutch
|
SINOTRUK's 430C diaphragm spring clutch, hydraulically operating with air assistance
|
|
|
Transmission
|
Transmission, model HW19710, 10 forward and 2 reverse
|
|
|
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)
|
||
|
Propeller Shaft
|
Double universal joint propeller shaft with gear-shaped coupling flange
|
|
|
Front Axle
|
New HF9 series, with drum brake system
|
|
|
Steering with double T-cross section beam
|
||
|
Rear Axle
|
HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
|
|
|
Ratio:5.73
|
||
|
Chassis
|
Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe
|
|
|
Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
|
||
|
Rear suspension: semi-elliptic leaf springs and bogie springs
|
||
|
Spare wheel carrier: with one spare wheel
|
||
|
Steering
|
ZF8118, hydraulic steering with power assistance
|
|
|
Ratio: 22.2-26.2:1
|
||
|
Braking System
|
Front and rear drum brake, four-circuit protection valve
|
|
|
Service brake: dual circuit compressed air brake
|
||
|
Parking Brake: spring energy, compressed air operating on rear wheels
|
||
|
Auxiliary brake: engine exhaust brake
|
||
|
Wheel & Types
|
Rims: 8.5-20,10 hole-steel
|
|
|
Types: 295/80R22.5, 12.00R22.5, 315/80R22.5, 12.00R20
|
||
|

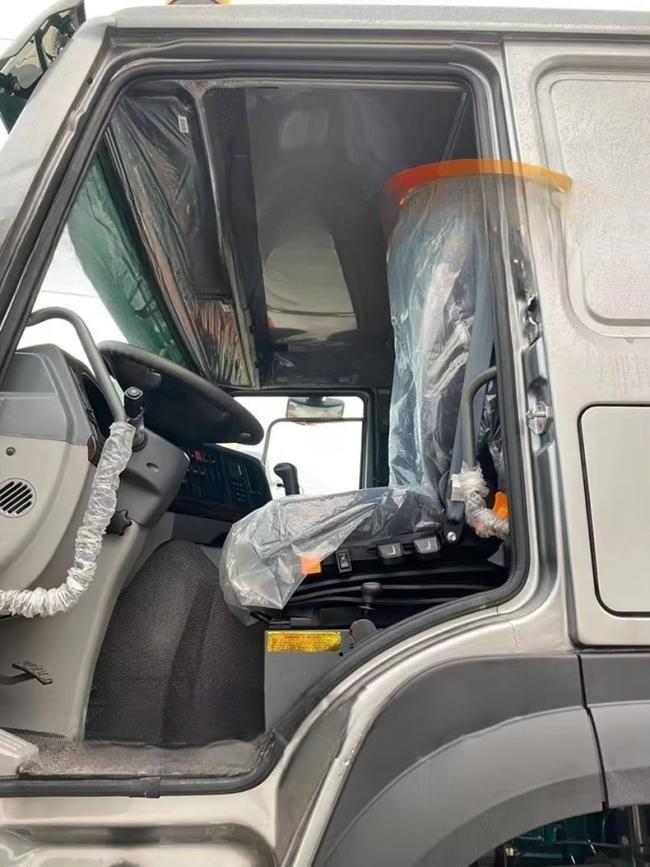

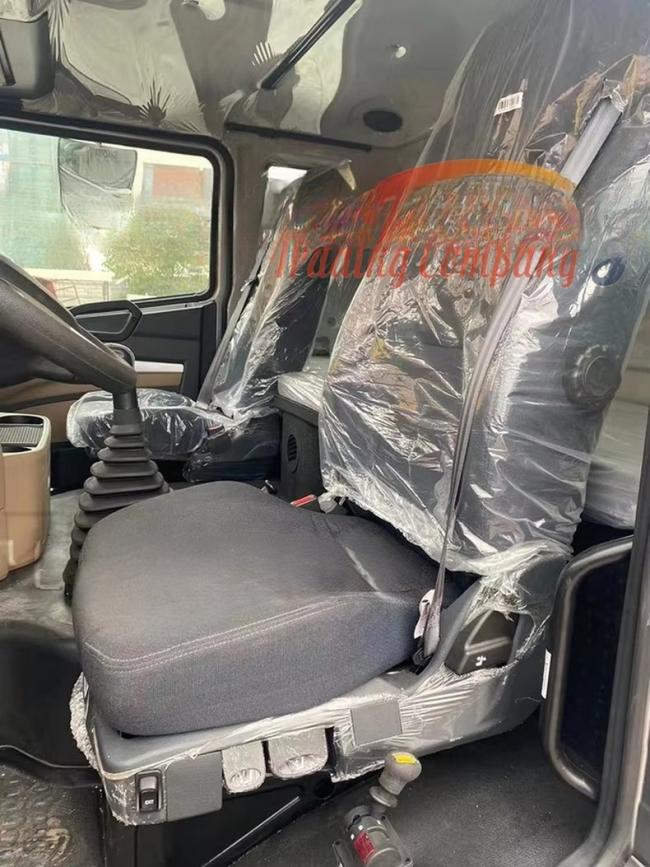

Driver's cab
|
Long cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,VDO
electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver's seat and rigid adjustable
co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, one sleeper,sun visor, safety belt, air
conditioner, adjustable steering wheel.
|
|
|
Electrical System
|
Operating voltage:24V, negative grounded
|
|
|
Starter: 24V, 7.5KW
|
||
|
Alternator: 3-phrase, 28V, 1540W
|
||
|
Batteries: 2×12V, 165Ah
|
||
|
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
|
||
|
Dimensions in mm
|
Wheel base (mm)
|
3800+1500
|
|
Front wheel track (mm)
|
2022/2041
|
|
|
Rear wheel track (mm)
|
1830
|
|
|
Front overhang (mm)
|
1500
|
|
|
Rear overhang (mm)
|
1859
|
|
|
Approach angle(°)
|
19
|
|
|
Departure angle(°)
|
24
|
|
|
Overall Dimension (mm)
|
8030×2540×3300
|
|
|
Weight in kg
|
Permissible loading capacity (kg)
|
16000
|
|
Dead weight (kg)
|
10500
|
|
|
Gross vehicle weight (kg)
|
16000
|
|
|
Gross combination weight (kg)
|
16000
|
|
|
Front axle loading capacity (kg)
|
9000
|
|
|
Rear axle loading capacity (kg)
|
16000
|
|
|
Performance
|
Maximum driving speed(km/h)
|
78(reference data)
|
|
Maximum gradeability (%)
|
36
|
|
|
Minimum ground clearance(mm)
|
314
|
|
|
Minimum turning radius (m)
|
15
|
|
|
Fuel consumption(L/100km)
|
40(reference data)
|
|
|

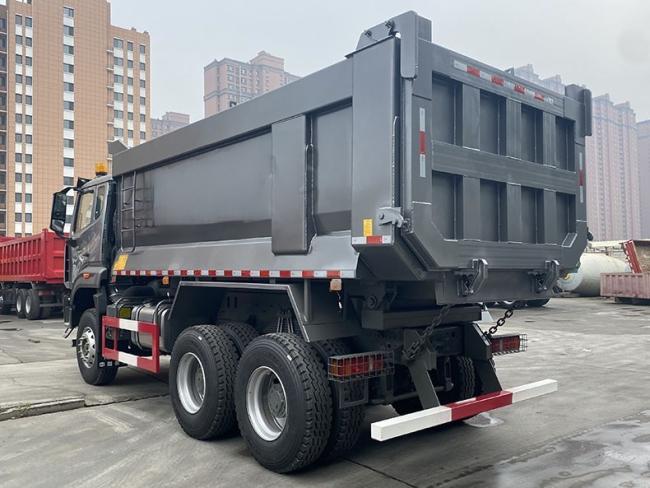

Carriage Internal Dimensions
|
5600×2300x 1500mm
|
|
|
Floor: 8mm, Side:6mm, middle lift
|
||
