Heavy Duty Double Shaft Coal Charcoal Mixer for Brick Production and Construction

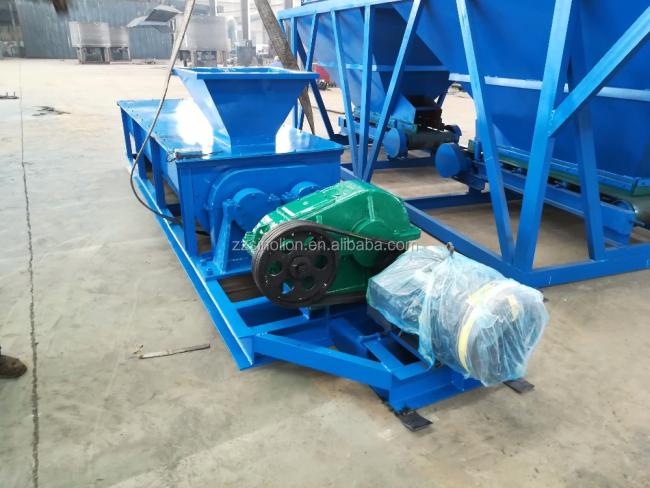

Sinolion supply double shaft mixing machine application
Double shaft mixer is mainly used to mix powder material, thst is to say, it can be used to produce kinds of powder mixtures, the aggregate can be wet fly ash, calcium carbide slurry, phosphate gypsum, sandstone, slag and so on. It is mainly used as the equipment mainframe in rpoduction line of kinds of buring free bricks and lime-sand bricks and is one of the important equipment used to produce fly ash bricks and moulded coals.
Double shafte mixing machine main technical parameters
Type | Output m3/h | Speed of shaft (r/min) | Powder (kw) | Overal size (mm) |
JBJ200 | 20-25 | 60 | 22 | 3680X1300X960 |
JBJ250 | 25-38 | 60 | 22 | 4180X1300X960 |
JBJ300 | 30-35 | 60 | 30 | 4680X1300X960 |
JBJ350 | 30-40 | 60 | 45 | 5180X1300X960 |


Double shaft mixer main Features

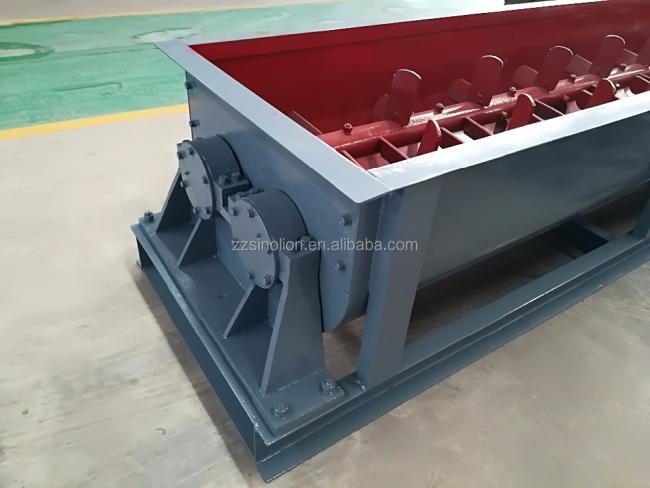

1. This double shaft mixers uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time.
2. Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars.
3. Opening gates mechanism directed by hydraulic can adjust the opening angle of discharging door in accordance with the need, which effectively prevents overspill while discharging the finished materials into truck-mounted concrete mixers.
