305 Cable Length EV Charging Cable with IEC 62196-2 Type 2 and SAE J1772 Type 1 Connectors
Premium quality extension cable designed for electric vehicle charging applications, featuring high flexibility and durability.
Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and provide professional solutions to the Cable&Wire,especially for the different industry customers.It contains :
- Humanoid robot cable,
- AI power cable/data cable,
- Semiconductor cable/industrial automatic cable,
- Sensor cable,
- New energy cable,
- Medical beauty wire,
- UL wire cable,
Linke Cable has diversified product development capabilities and technical capabilities to support diversified customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485(Medical apparatus and instruments),IATF 16949(Auto industry)

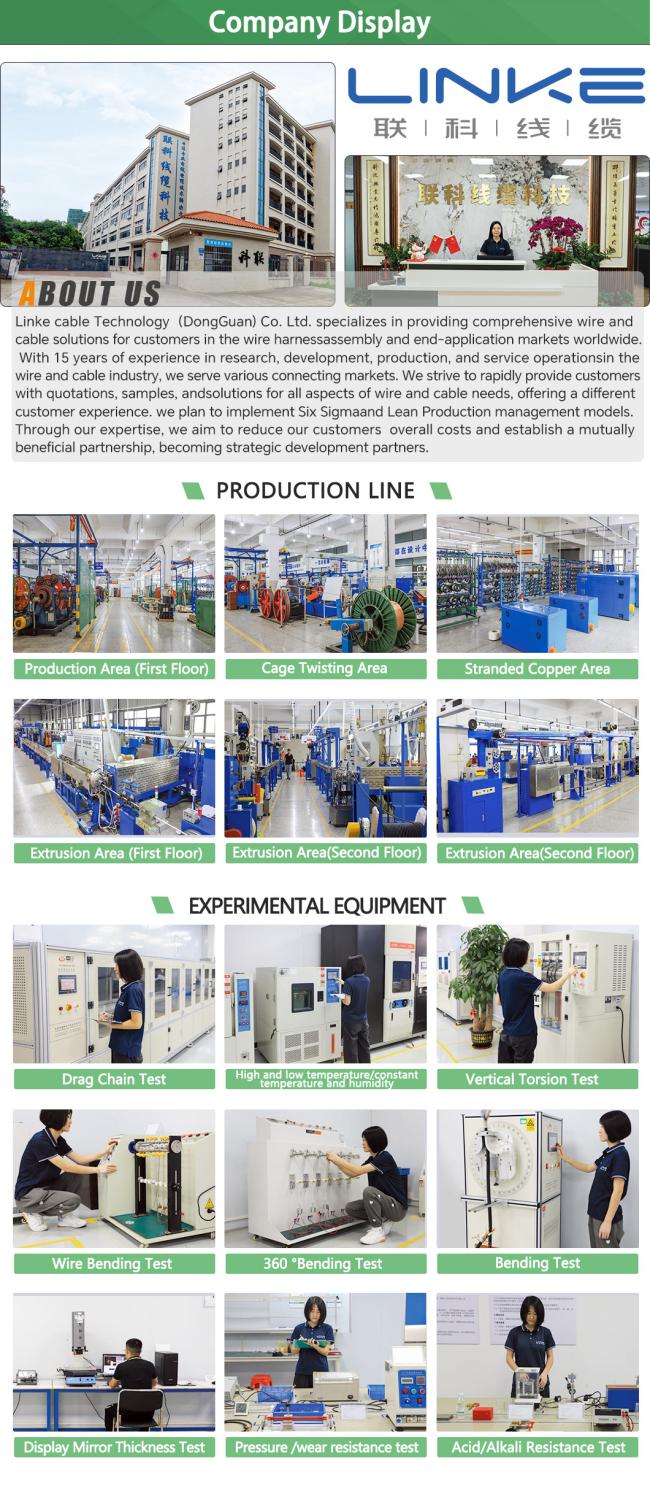

Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
We operate an independent quality testing laboratory with complete testing facilities and standardized procedures. Our full set of product testing standards covers all key performance and safety indicators. Through systematic and rigorous inspection, we effectively control product quality, reduce risks, and provide you with safe, stable and high-quality products you can trust.
| No. | Test Item | Test Condition | Test Requirement | Test Data | Result |
|---|---|---|---|---|---|
| 1 | Structure Inspection | 1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness | Comply with wire size table | Refer to test record | Pass |
| 2 | Thermal Shock | Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample | No cracks on the sample surface | No cracks | Pass |
| 3 | Heat Deformation | 1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position | 1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50% | Refer to test record | Pass |
| 4 | FT2 | Apply a standard flame at a height of 125mm once | 1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials | Refer to test record | Pass |
| 5 | Aging | 1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength | 1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging | Refer to test record | Pass |
| 6 | Cold Bend | Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box | No cracks on the sample surface | No cracks | Pass |
| 7 | Conductor Resistance | Measure resistance of one-meter core conductor with DC resistance meter | At 20℃, resistance of 8AWG ≤ 2.23Ω/km | Refer to test record | Pass |
| Category | Wire specifications | Reference current (A) | Diameter (mm) |
|---|---|---|---|
| UL:EVE,EVT 600V | 3×16AWG | 12 | 10.8 |
| 3×14AWG | 16 | 13.4 | |
| 3×16AWG+2×18AWG | 12 | 12.1 | |
| 3×14AWG+2×18AWG | 16 | 13.9 |
| ELECTRICAL CHARACTERISTICS | PHYSICAL PROPERTIES |
|---|---|
| Rated voltage: DC 1000V | Tensile strength: ≥20MPa |
| Rated temperature: Jacket -40~90ºC Insulation -40~125ºC |
Elongation: ≥300% |
Conductor: Flexible Bare annealed copper wire
Insulation: Silicone
Color options: Black, Orange, Red or Yellow Blue jacket, single & double insulated
SQ MM sizes (European style): 4 sq mm to 240 sq mm
AWG sizes (North American style): 0AWG-10AWG
Temperature range: -60°C to 200°C
Linke Cable Technology Co., Ltd is a leading cable supplier in China with over 10 years of experience in R&D, production and marketing of wire and cable. We specialize in EV charging cables and provide custom cable solutions worldwide.
- UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269
- UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103
- ISO9001, ISO13485, TS16949
- CNR - Appliance Wiring Material
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us.
The samples are free for you. New clients are expected to pay for the courier cost.
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight.
