32A 7kw 16A EV Charger Cable Electric Vehicle Charging Cable with TPE Jacket and Customizable Length
Price:
Negotiable
MOQ:
1000m
Delivery Time:
7-15 days
Brand:
Linke
Product Description

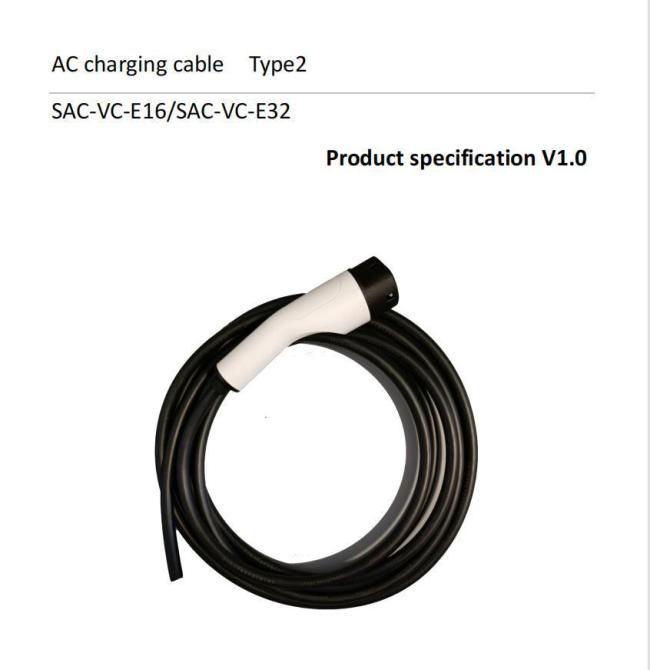

Vehicle Charging EV Charger Cable AC 32A 7kw 16A 3.5kw
Product Overview
Our AC charging cable conforms to IEC 62196-1:2022 and IEC 62196-2:2022 standards, featuring excellent ergonomic design and professional appearance. The product offers superior protection with IP67 rating for the vehicle connector and IP54 rating when coupled with the vehicle socket. Constructed with copper alloy terminals featuring silver plating, V0 grade thermoplastic shell material, with customizable wire length and rated current options.
Technical Specifications
Rated Voltage:
220V AC (single-phase) / 380V AC (three-phase)
Rated Current:
16A, 32A
Ambient Temperature:
-35ºC to 55ºC
Ambient Humidity:
5% to 95%
IP Protection Rating:
IP67 (Vehicle connector); IP54 (combination with socket-outlet or connector)
Cable Outer Sheath Material:
TPE

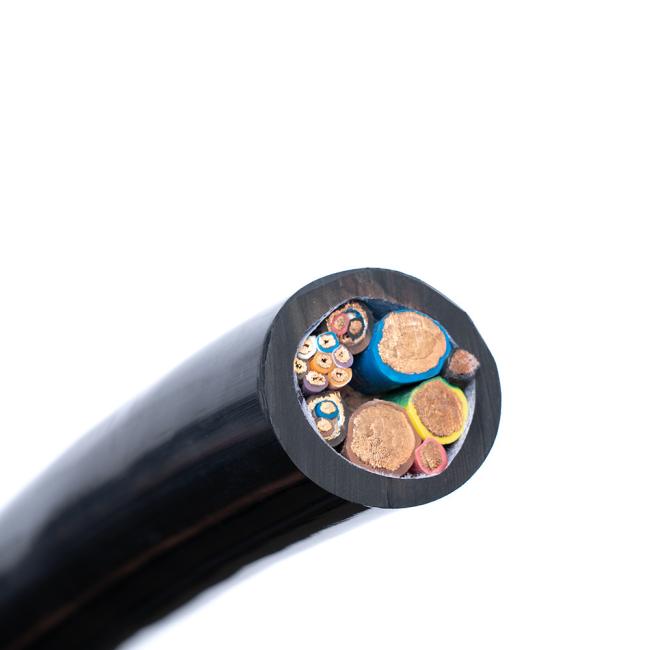

Cable Structure Details
Single-phase 16A:
3×2.5mm² + 1×0.75mm² OD=11mm
Single-phase 32A:
3×6mm² + 1×0.75mm² OD=13.5mm
Three-phase 16A:
5×2.5mm² + 1×0.75mm² OD=13.5mm
Three-phase 32A:
5×6mm² + 1×0.75mm² OD=16.5mm
Insertion/Withdrawal Force:
10N-100N
Vehicle Drive Over Rating:
10000N
Connector Material:
PC, PA
Flame Rating:
UL94 V-0
Connection Terminal:
Brass, silver plated
Insulation Resistance:
≥100MΩ
Dielectric Strength:
2000VAC 1min
Insertion/Withdrawal Cycles:
>10000
Cable Technical Data
| Type | EV-CABLE | Customer Signature |
|---|---|---|
| Cable Grade | -40ºC~+125ºC 1500V | |
| Standard | GB/T 25087/ISO 14572 |
| Cable Code | Cable Size (mm²) | Conductor | Tinned Copper Braid | Cable Jacket Material | Copper Structure (mm) | Single Copper OD (m) | Copper Braid | Material | Cable OD (mm) | Standard Thickness (mm) | Color | 20ºC Conductor Resistance (mΩ/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TEVB050-XX-027 | 0.5mm² | Copper | 16/(0.20±0.008) | 0.10TD | ≥85% | XLPE | 4.20±0.15 | 0.70 | Black/Customization | ≤37.1 | ||
| TEVB075-XX-041 | 0.75mm² | 24/(0.20±0.008) | 0.10TD | 4.50±0.15 | 0.70 | ≤24.7 | ||||||
| TEVB100-XX-006 | 1mm² | 32/(0.20±0.008) | 0.10TD | 4.80±0.15 | 0.80 | ≤18.5 | ||||||
| TEVB150-XX-036 | 1.5mm² | 49/(0.20±0.008) | 0.127TD | 5.20±0.15 | 0.80 | ≤12.7 | ||||||
| TEVB250-XX-295 | 2.5mm² | 49/(0.25±0.008) | 0.10TD | 5.60±0.20 | 0.70 | ≤7.60 | ||||||
| TEVB400-XX-140 | 4mm² | 133/(0.20±0.008) | 0.15TD | 7.30±0.20 | 0.90 | ≤4.71 | ||||||
| TEVB600-XX-093 | 6mm² | 190/(0.20±0.008) | 0.127TD | 7.70±0.20 | 0.90 | ≤3.14 | ||||||
| TEVB800-XX-002 | 8mm² | 259/(0.20±0.008) | 0.15TD | 8.50±0.20 | 1.00 | ≤2.38 | ||||||
| TEVBA10-XX-051 | 10mm² | 323/(0.20±0.008) | 0.15TD | 9.60±0.30 | 1.00 | ≤1.82 | ||||||
| TEVBA16-XX-044 | 16mm² | 513/(0.20±0.008) | 0.15TD | 10.90±0.30 | 1.00 | ≤1.16 | ||||||
| TEVBA25-XX-042 | 25mm² | 798/(0.20±0.008) | 0.15TD | 13.50±0.30 | 1.20 | ≤0.743 | ||||||
| TEVBA35-XX-043 | 35mm² | 1121/(0.20±0.008) | 0.15TD | 14.50±0.30 | 1.20 | ≤0.527 | ||||||
| TEVBA50-XX-050 | 50mm² | 1596/(0.20±0.008) | 0.15TD | 17.00±0.40 | 1.30 | ≤0.368 | ||||||
| TEVBA70-XX-054 | 70mm² | 2257/(0.20±0.008) | 0.20TD | 21.00÷0.50 | 1.30 | ≤0.259 | ||||||
| TEVBA95-XX-014 | 95mm² | 1887/(0.254±0.008) | 0.20TD | 22.0±0.40 | 1.60 | ≤0.196 | ||||||
| TEVBA120-XX-016 | 120mm² | 2368/(0.254±0.008) | 0.20TD | 27.00±1.0 | 1.60 | ≤0.153 |
Print: EV-cable "mm³ -40ºC~+125ºC 1500V DC N ATTENTION HIGH VOLTAGE LINKE CABLE->XLPE<
Frequently Asked Questions
- Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen. - How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost. - What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option. - Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us. - Does your company accept OEM production?
Yes, we can print your company name, and we even custom the quality card to promote your company.
