Custom Design UL Certified Wiring Harness Cable Assembly with Wide Temperature Range for Electrical Applications
The wire should be able to withstand the immersion test, the wire after 150±5ºC, 5 hours of constant temperature, immersed in the temperature of 50±5ºC 1032 paint for 30 minutes, take out drip dry, and then 130±5ºC, 48 hours of constant temperature, after the wire is wound on the specified diameter of the round rod, the wire sheath layer should be no cracking, brittle and sticky phenomenon.
| Conductor: | Bare copper |
| Insulation: | PVC,TPU,XLPE,SILICOCNE |
| Color: | Black, Orange, Red ,Yellow ,Blue |
| SQ MM sizes (European style): | 0.1-100SQ |
| AWG sizes (North American style): | 0AWG-24AWG |
| Wide temperature range: | -60°C to 200°C |
We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269
(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
ISO9001 and ISO13485,TS16949
CNR- Appliance Wiring Material,
Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.
Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2

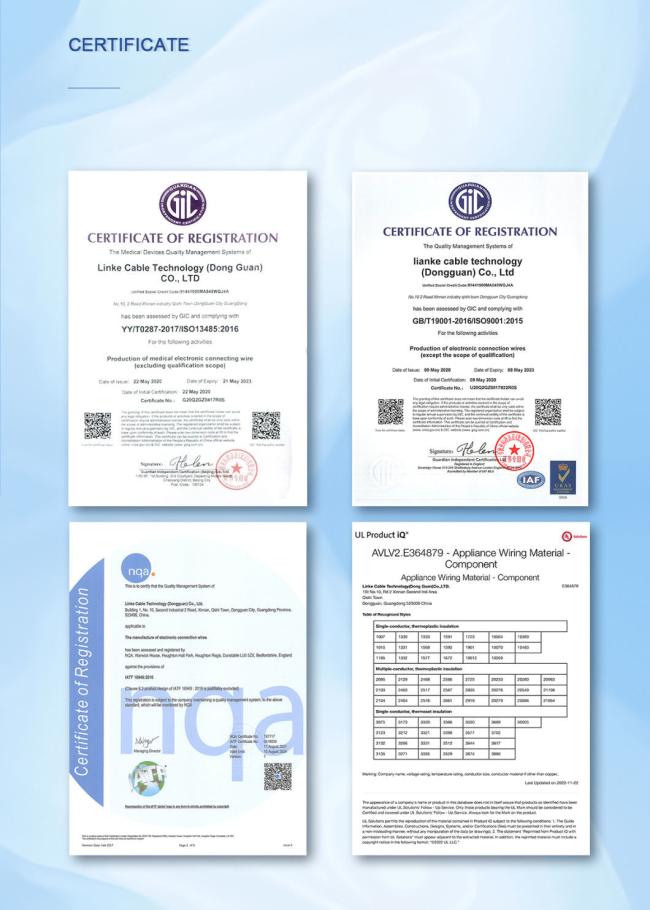

LINKE UL CERTIFICATION
For More Information, Please do feel free to contact us!
