1-30AWG Tinned Copper XLPE Insulation UL1015 Control Cable for Industrial Applications
1-30AWG Tinned Copper PVC Jacket UL1015 XLPE Control Cable
Premium control cable featuring flexible bare annealed copper wire construction with multiple insulation options for diverse industrial applications.

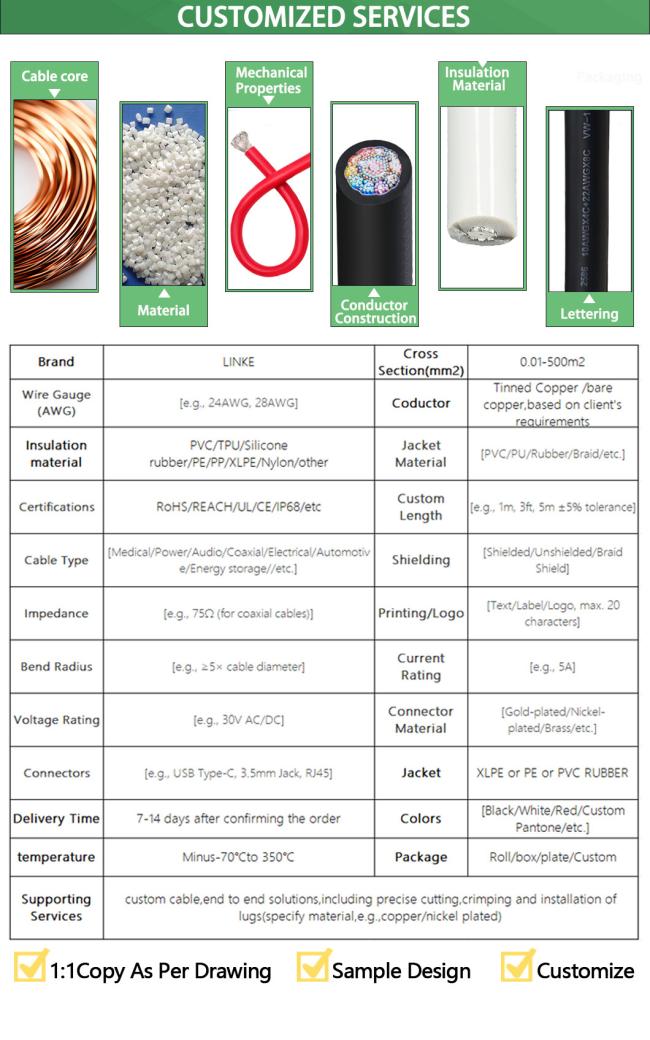

Construction & Specifications
- Conductor: Flexible bare annealed copper wire
- Insulation Options: PVC, TPU, XLPE, Silicone
- Jacket Colors: Black, Orange, Red, Yellow, Blue
- Insulation Types: Single & double insulated options available
- SQ MM Sizes (European): 0.1-100SQ
- AWG Sizes (North American): 1AWG-30AWG
- Temperature Range: -60°C to 200°C
Linke cable technology (DongGuan) Co. Ltd. concentrate on R&D and provide professional solutions to the Cable&Wire,especially for the different industry customers.It contains :
Humanoid robot cable, AI power cable/data cable, Semiconductor cable/industrial automatic cable, Sensor cable, New energy cable, Medical beauty wire, UL wire cable,
Linke Cable has diversified product development capabilities and technical capabilities to support diversified customer needs. We have obtained the following product authorization:UL 758,CCC,RoHs,REACH,CE; We have obtained the following quality management system:ISO 9001-2015(All products); ISO 13485(Medical apparatus and instruments),IATF 16949(Auto industry)

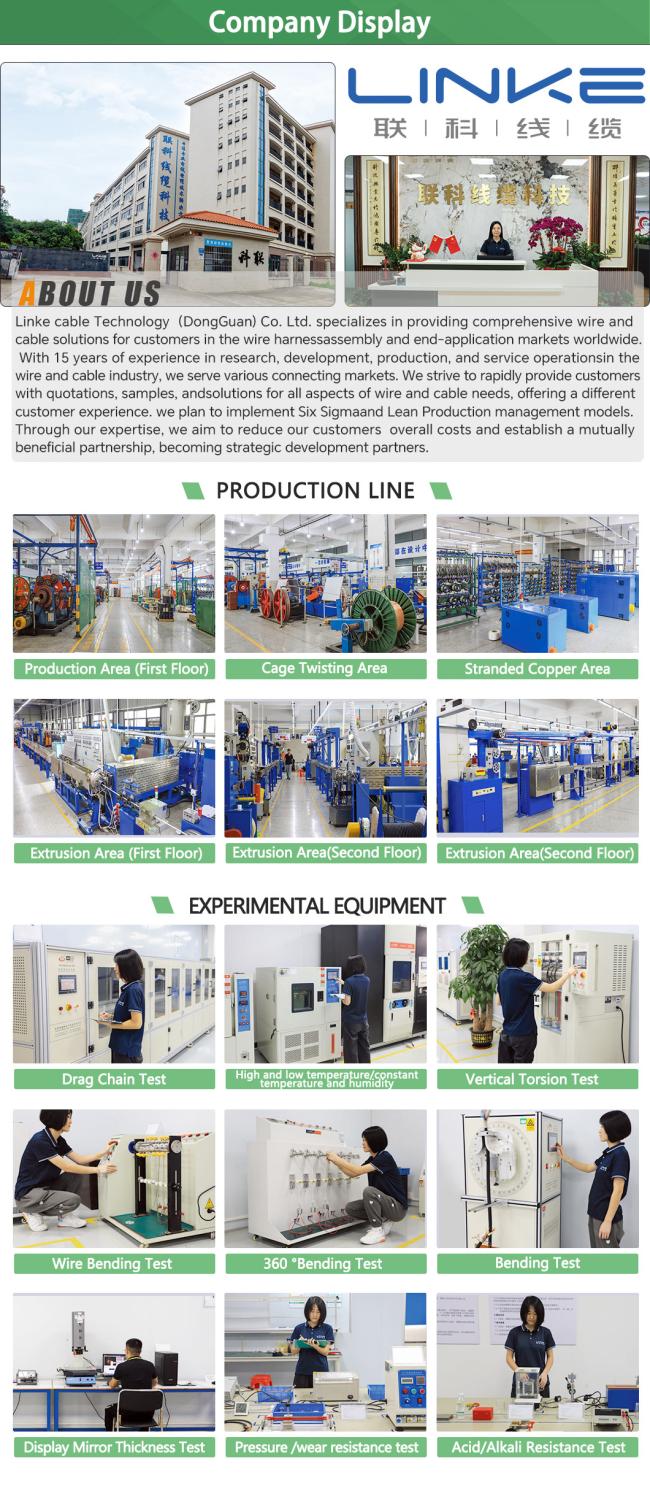

Independent Laboratory • Complete Testing Equipment • Full Quality Control
We test every product by strict standards to ensure superior quality and reliable performance.
We operate an independent quality testing laboratory with complete testing facilities and standardized procedures. Our full set of product testing standards covers all key performance and safety indicators. Through systematic and rigorous inspection, we effectively control product quality, reduce risks, and provide you with safe, stable and high-quality products you can trust.
| No. | Test Item | Test Condition | Test Requirement | Test Data | Result |
|---|---|---|---|---|---|
| 1 | Structure Inspection | 1. Comply with wire size table2. Minimum thickness ≥ 80% of average thickness | Comply with wire size table | Refer to test record | Pass |
| 2 | Thermal Shock | Wind the sample on an iron rod of specified size, place in an aging oven at specified temperature for 1 hour, cool the sample to room temperature for at least 30 minutes, then observe the sample | No cracks on the sample surface | No cracks | Pass |
| 3 | Heat Deformation | 1. Measure sample thickness (mark measurement position)2. Place sample and test fixture in aging oven for preheating at specified temperature for 1 hour3. Place sample under pressure column of test fixture for 1 hour4. Re-measure sample thickness at the same position | 1. Sample shall not be cracked by pressure column or expose conductor2. Thickness reduction ≤ 50% | Refer to test record | Pass |
| 4 | FT2 | Apply a standard flame at a height of 125mm once | 1. Flame shall not propagate along its length2. Flame shall not spread to nearby flammable materials | Refer to test record | Pass |
| 5 | Aging | 1. Take five sections of 200mm-long sheath2. Place specimens in aging oven at 158℃ for 168 hours3. After taking out specimens, place at room temperature 23±5℃ for 16 hours, then test elongation at break and tensile strength | 1. Elongation before aging ≥ 300%, elongation after aging ≥ 80% of that before aging2. Tensile strength before aging > 1.41kg/mm², tensile strength after aging ≥ 80% of that before aging | Refer to test record | Pass |
| 6 | Cold Bend | Store sample in low-temperature box at specified temperature for 4 hours, wind sample on iron rod of specified size with specified turns, complete winding within 30 seconds after sample is taken out of low-temperature box | No cracks on the sample surface | No cracks | Pass |
| 7 | Conductor Resistance | Measure resistance of one-meter core conductor with DC resistance meter | At 20℃, resistance of 8AWG ≤ 2.23Ω/km | Refer to test record | Pass |
Certifications and Standards
UL Certifications
- UL1007, UL1185, UL1672, UL10070, UL10483, UL1015, UL1569, UL10012, UL10269
- UL2095, UL2129, UL2468, UL2586, UL2725, UL20233, UL20280, UL20963, UL2103, UL2463
- UL2517, UL2587, UL2835, UL20276, UL20549, UL21198, 2104, UL2464, UL2576, UL2661
- UL2919, UL20279, UL20886, UL21664
Quality Management Systems
- ISO9001 and ISO13485
- TS16949
CNR Appliance Wiring Material Standards
- Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
- Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
- Extruded TPU Non-integral Jacketed Cable, rated 80°C, 300V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer. We control your order from beginning to end. Welcome to visit us - we'll pick you up in Shenzhen.
How can I get a sample to test your quality?
Samples are free for you. New clients are expected to pay for courier costs.
What's your Minimum Order Quantity?
Normally 100m. However, cable is very heavy. We recommend ordering a suitable quantity to avoid high freight costs. Sea transportation is the best option.
Can I get a discount?
Discounts depend on your quantity. We can offer discounts and cover freight costs. Please contact us for details.
Does your company accept OEM production?
Yes, we can print your company name and even customize quality cards to promote your company.
