3 * 13ton Capacity Axles Side Wall Semi Trailer for Dry Cargo or Sands Transportation
Price:
$13,000.00/sets 1-9 sets
MOQ:
1 UNIT
Delivery Time:
25 days
Brand:
AOTONG
Product Description
Product Description

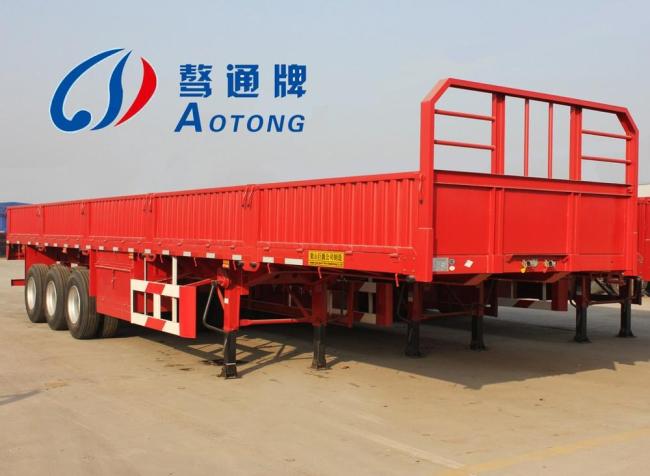

Side Wall Semi Trailer：Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.The max height of the rear guard from ground is 550mm,and the cross section is 140mmx55mm The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes.
The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding.Frame using peen-forming processing.
The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high welded the upper and lower flangeplates together, and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding.Frame using peen-forming processing.
Specification
Model | LAT9280 |
Size | 12500*2500*1500 (mm) |
Side board height | 600-2200 optional |
Payload | 50000KG |
Main beam | Heavy duty I beam. |
Cross beam | 160mm |
Plate | checked plate or flat plate |
Axles | 3 * 13ton capacity (Brand optional) |
Suspension | Mechanical suspension (Air suspension optional) |
Leaf spring | 10pcs |
Tire | 12R22.5 12pcs (Other size optional) |
Rim | 9.00-22.5 12pcs (Other size optional) |
Kin pin | 2’’/3.5’’ bolt type |
Landing gear | 28 Ton two speed |
Twist locks | optional |
Braking system | Double air chamber ,brake valve,40L air tanks ;ABS optional |
Electrical | LED light , 7 ways ,24V |
Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
Packing & Delivery
Company Profile
Shandong Juyuan Automobile Technology Co., Ltd., is a professional manufacturer of varies types of semi trailers established in 2001 with more than 16 years experience and well-equipped testing facilities and strong technical force.
With advanced and proven technique in design, exploitation and production, our products with the brand "Aotong" are widely sold to countries all over the world with good reputation, enjoying high popularity in America, the Middle East, Africa, Southeast Asia and Russia, specially get good feedback from Kenya, Tunisia, Saudi Arabia, the Philippines, Myanmar, Vietnam, Thailand, Bangladesh, Tanzania, mozambique, Congo, Nigeria, Russia, etc. .
Now we provide more than 60 types of trailers and also our trailers can be customized according to your specifications and design drawings. You are warm welcome to contact us and we are ready for you!!!
Now we provide more than 60 types of trailers and also our trailers can be customized according to your specifications and design drawings. You are warm welcome to contact us and we are ready for you!!!
Other Products
FAQ
1. How do you make the shipment?
We will transport the trailers by bulk or cotainer,we have possess longterm cooperation with ship agency who can provide yo lowest shipping fee.
We will transport the trailers by bulk or cotainer,we have possess longterm cooperation with ship agency who can provide yo lowest shipping fee.
2. Can you satisfy my special requirement?
Sure! We are direct manufacturer with 20 years experience and we have strong producing capacity and R&D capacity.
3. How can you guarantee quality?
Sure! We are direct manufacturer with 20 years experience and we have strong producing capacity and R&D capacity.
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension,tyre are purchased centralize by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
4. Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
Customer Photos
Why Choose Us
Top Manufacturers for good quality semi trailers.
1.Almost 20 years manufacturing experiences provide qualified truck trailers & competitive price.
2.Experienced Design & QC team, strict quality control.CCC,ISO,SGS,BV agree
3.Customized a variety of semi trailer required by customers. Well designed ,small order accept.
4.Manufacture according to your detailed requirements
5.After-sale-support,6 month guarantee term
1.Almost 20 years manufacturing experiences provide qualified truck trailers & competitive price.
2.Experienced Design & QC team, strict quality control.CCC,ISO,SGS,BV agree
3.Customized a variety of semi trailer required by customers. Well designed ,small order accept.
4.Manufacture according to your detailed requirements
5.After-sale-support,6 month guarantee term
