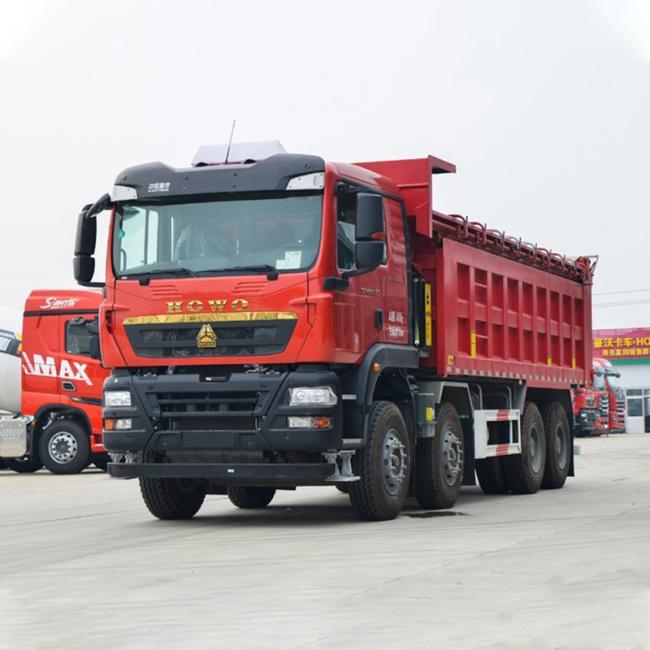

Basic information | ||||||
Announcement type: | ZZ3317V326GF1 | Driving form: | 8X4 | |||
Wheelbase: | 1950+3225+1350mm | Engine: | Weichai WP12.430E62 | |||
Transmission: | 12-speed transmission | Body length: | 9.93 m | |||
Body width: | 2.55m | Body height: | 3.55m | |||
Front wheel base: | 2022/2022mm | Rear wheel base: | 1860/1860mm | |||
Vehicle weight: | 15.5 tons | Rated load: | 15.37 tons | |||
Total mass: | 31 tons | Tonnage class: | Heavy truck | |||
Approach Angle: | 17 degrees | Departure Angle: | 21 degrees | |||
Engine parameter | ||||||
Engine type: | Weichai WP12.430E62 | Engine brand: | Weichai | |||
Number of cylinders: | 6 | Type of fuel: | Diesel oil | |||
Displacement: | 11.6 L | Emission standard: | Six kingdoms | |||
Maximum horsepower: | 430hp | Maximum output power: | 316kW | |||
Maximum torque: | 2100 n. m | Maximum torque speed: | 1000-1400rpm | |||
Rated speed: | 1900rpm | Engine form: | CR+DOC+DPF+Hi_SCR | |||

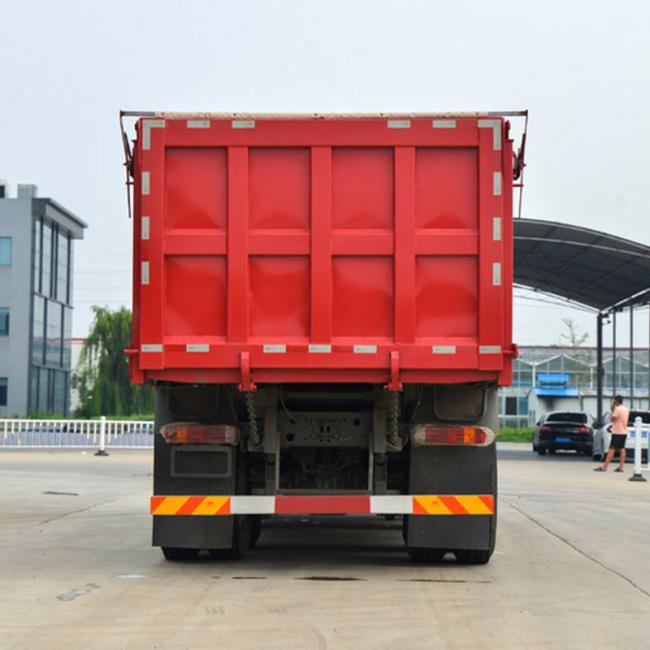

Container parameter | ||||||
Length of container: | 6.8 m | Width of container: | 2.35m | |||
Container height: | 1.5m | Container form: | Self-discharging type | |||
Transmission parameter | ||||||
Transmission model: | 12-speed transmission | Forward gear: | 12th gear | |||
Number of reversals: | 2 | |||||

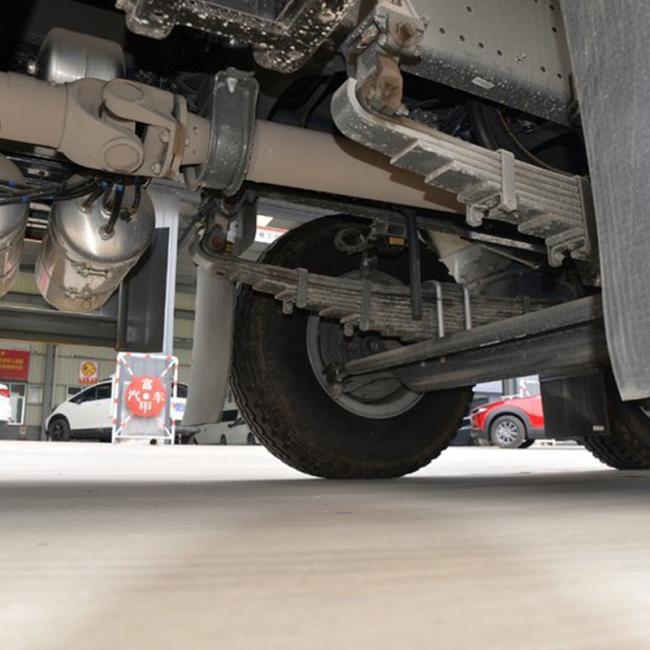

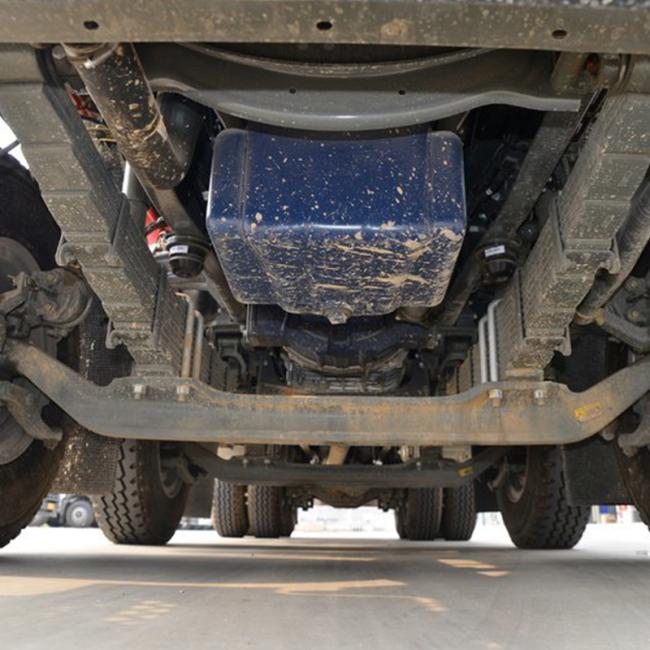

Chassis parameter | ||||||
Allowable load of front axle: | 6500/7000kg | Rear axle allowable load: | 17500(biaxial group)kg | |||
Number of spring pieces: | 2007/7/10 | |||||
tyre | ||||||
Tire specifications: | 12.00 R20 | Number of tires: | 12 | |||
