10 Ton All Wheel Drive 4 WD Tipper Truck Dongfeng 8 Forward Shift Off-road Dump Truck
Price:
$22,540.00/units 1-4 units
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
DONGFENG
Product Description
Products Description
Dongfeng 4X4 Off-road Dump truck
Truck Fatures:
1) High loading capacity
2) Cummins Engine with better oil effeciency
3)Suitable for home / market / city transportation
4) Better price -performance ratio

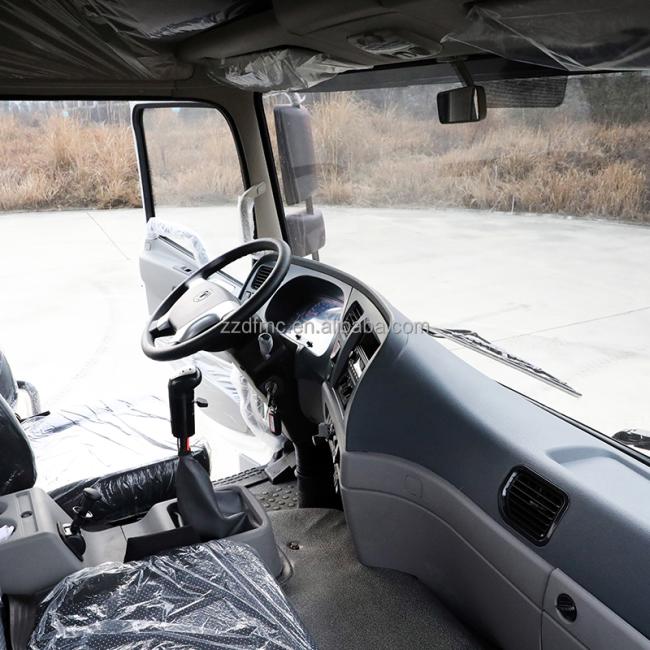

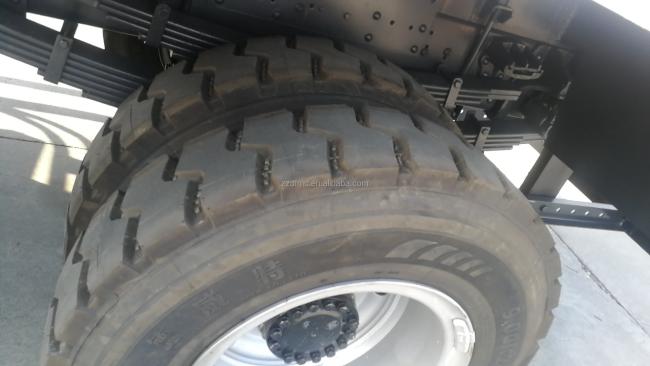

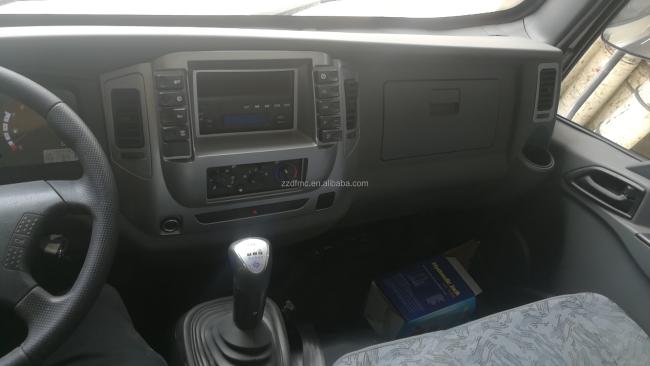

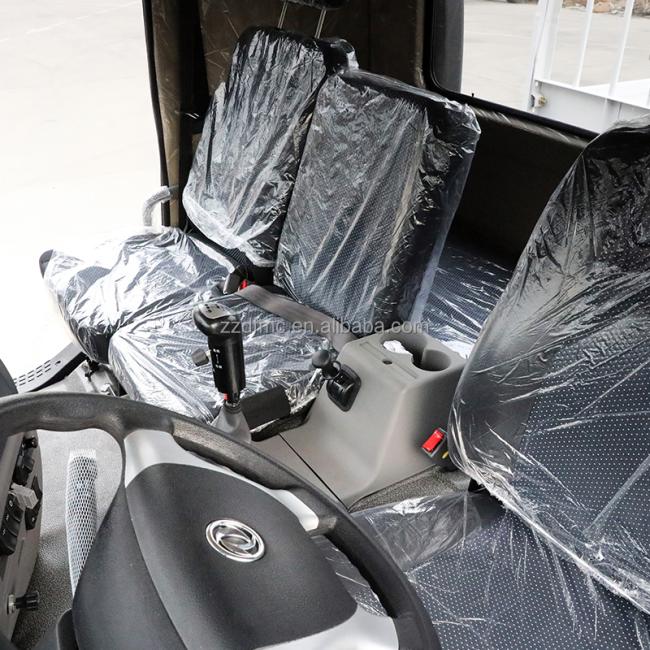

Details Images
Product Paramenters
产品名称及型号 Product name and model | EQ2190 | 驱动方式 Drive mode | 6×6，LHD | ||||
尺寸参数 Size parameters | 外形尺寸 长×宽×高(mm) Overall dimensions: length×width×height(mm) | 8830×2550×3050 | |||||
轴距（mm） Wheel base（mm） | 4500+1350 | ||||||
前悬/后悬(mm) Front overhang /Rear overhang (mm) | 1430/1600 | ||||||
质量参数 Mass parameter | 整备质量(kg) Unladen mass (kg) | 8450 | |||||
总质量(kg) Gross mass(kg) | 19000 | ||||||
发动机 Engine | 型式及类别 Model and variety | 玉柴直列六缸、水冷涡轮增压柴油发动机/中冷,260hp Yuchai Straight 6-cylinder diesel engine, Water cooling/turbocharged/inter-cooling,260hp | |||||
型号 Model | YC6A260-33 | ||||||
排量（ml） Discharge capacity（ml） | 7255 | ||||||
燃料种类 Fuel type | Diesel | ||||||
最大扭矩(N.m) Maximum torque /speed (N.m) | 1000/1400～1600 | ||||||
额定功率 Rated power | 191/2300 | ||||||
最高车速 Max Speed | 85 Км/h | ||||||
离合器 Clutch | 型号及型式 Model and type | 推式、膜片弹簧离合器 Monolithic pull diaphragm clutch | |||||
操纵方式 Control mode | 液压远距离操纵 Hydraulic remote control | ||||||
离合器盘直径(mm) Clutch disc diamete (mm) | ¢430 | ||||||
变速箱 Transmission | 型式 Тype | 陕齿8档箱,机械式 8JS118T-B,mechanical | |||||
前进档位数 Forwardgear digit | 8 | ||||||
速比 Ratios | Ⅰ11.4 Ⅱ7.94 Ⅲ5.63 Ⅳ4.06 Ⅴ2.81 Ⅵ1.96 Ⅶ1.39 Ⅷ1.00 RL11.35 | ||||||
分动箱 Auxiliary box | 型号 Model | 机械式 ZQC1200 ZQC1200mechanical | |||||
Передаточное число 速比 Speed ratio | 1.75；1.0 | ||||||
制动系统 Braking system | 行车制动型式 Auto brake type | 双回路气制动,排气制动 Double circuit air brake system, exhaust brake | |||||
驾驶室 Cab | 平顶,2门，带空调，带卧铺, 2座 Flat roof/single 2 doors cabin/with AC, 2 persons | ||||||
前后桥 Axle | Front | 铸造桥壳，驱动转向桥,6T Casting welded axle drive steer axle,6T | |||||
后桥 Rear | 轮边减速双后桥，10T/10T,速比5.921 Wheel deceleration double rear axle,10T, speed ratio of 5.921. | ||||||
悬架系统Suspension | 前悬 Front | 9片-多片钢板弹簧 9- Multi-plate leaf spring | |||||
后悬 Rear | 10+8片-多片钢板弹簧 10+8-Multi-plate leaf spring | ||||||
蓄电池 Battery | 电压 (V) Voltage (V) | 24 | |||||
容量(A.h) Сapacity (A.h) | 165AHX2 | ||||||
转向 Steering | 动力辅助转向 Power assisted | ||||||
传动装置 Transmission | FAST，配有取力器系统 FAST equipped with PTO | ||||||
轮胎 Tyres | 12.5R20 6+1备用胎 12.5R20, 6+1, spare | ||||||
上装 Upper | 车厢 Cargo box | 侧门与后门可折叠的车厢，5000*2450*700mm Sides and back folded cargo box,5000*2450*700mm | |||||
车厢材质 Box material | Q235 | ||||||
车厢型体 Box mode | 长方体型 Cuboid | ||||||
吊臂 Winch | 根据要求可装配6.7吨/11mmx25 m Equipped,6.7t/11mmx25meters as requested | ||||||
