6X4 Semi Trailer Head Tipper Dumper Your Partner for Garbage and Cargo Transportation
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15days
Product Description
Product Use

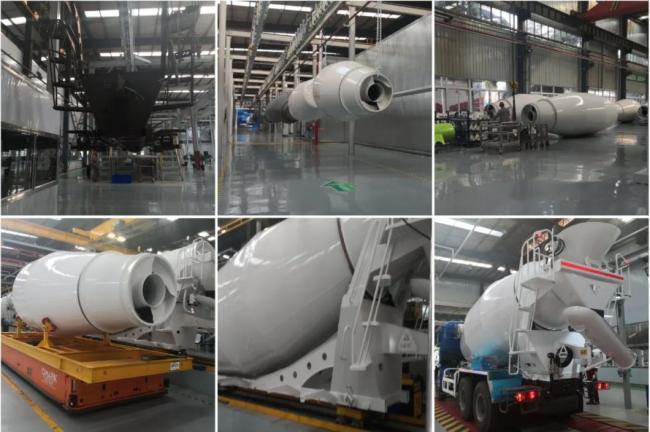

The Sinotruk Chassis Hydraulic Steering Concrete Mixer Truck is an advanced vehicle meticulously engineered for transporting concrete to various construction sites. Owing to its distinctive form, it is often dubbed the field snail car or olive car. Featuring a cylindrical mixer, this truck ensures the concrete remains perfectly mixed throughout the journey, offering a highly efficient and reliable solution for all your construction needs.The truck's mixing drum continually rotates during transport, guaranteeing that the concrete does not set before reaching its final destination. After delivery, the drum is meticulously cleaned with water to avoid any residual concrete from hardening. This maintenance step ensures that the drum retains its full carrying capacity for subsequent uses.
Basic Info.
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | FAW | Origin | Shandong | |
| Production Capacity | 200/months |
| 10m3Concrete Mixer Truck Specification | ||
| Truck model | CA5250GJBP66K2L1T1E | |
| Produced by | FAW | |
| Drive wheel | 6x4 | |
| GVW | 25 Tons | |
| Cabin | J6P, Automatic Air Conditioner, Electric windows, Electric lifting, Steel bumper | |
| Engine | Model | CA6DL2-35E3F, 350HP |
| Manufacturer | FAW | |
| Air filter | Desert type air filter | |
| Emission standard | Euro III, EGR tech | |
| No. of cylinder | 6 cylinder in-line,watercooling,turbo-charge | |
| Transmission | CA10TA160M2, 10 forward speed, Manual type | |
| Clutch | Ф430mmdry type | |
| Steering | LHD, power-assistant | |
| Front Axle | D2020, 9 tons | |
| Rear Axle | LC300,16 tons (rate:5.921) | |
| Brakes | Drum type | |
| Chassis | 400L Fuel tank, steel tanker. | |
| Suspension | Leaf spring type, Front 12/ Rear 12 Pieces | |
| Frame | 300*80*(8+8)mm | |
| Wheel Base | 3800+1350mm | |
| Wheel&Tire | Tire: 12.00R20-18 Radial | |
| Electric system | Operating voltage | 24v |
| Starter, Alternator | China brand | |
| Overall Dimension | Overall Length | 9848mm |
| Overall Width | 2550mm | |
| Overall Height | 3930mm | |
| Mixer system | Mixer tank volume | 10m3 |
| Material & thickness | 520JJ. HARDOX is optional. Thickness 5mm/ 6mm | |
| Hydraulic system | ARK, TOP UNION is standard. REXROTH/ PMP/ EATON/ ZF/BONFIGLIOLIare optional. | |
| Others | Cleaning water tank, mechanical discharge hopper. | |
| Max.speed | 85 km/h | |
| Lead time | 30 working days | |
Product Description
| Typical truck model | ZZ5257GJBN3641W | ZZ5257GJBN3841W | ZZ5257GJBN4041W | ZZ5257GJBN4341W | |||
| Cab | Model | HW76 | |||||
| Type | HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt. | ||||||
| Engine | Model | WD615.87 | WD615.69 | WD615.47 | |||
| Rated power | 290HP(213Kw/rpm) | 336HP(247Kw/rpm) | 371HP(273Kw/rpm) | ||||
| Displacement | 4 stroke direct injection diesel engine | ||||||
| Type | 6 cylinder in-line with water cooling, turbo-charging & intercooling | ||||||
| Wheelbase | 3600+1400mm | 3800+1400mm | 4000+1400mm | 4300+1400mm | |||
| Mixer tanker size | 8CBM | 9CBM | 10CBM | 12CBM | |||
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance | ||||||
| Transmission | SINOTRUKHW series 10/12/16 speed transmission, 10 forward and 2 reverse | ||||||
| Front axle | Steering axle with double T-cross section HF9 | ||||||
| Drive axle | Pressed axle housing, central single reduction HC16 Ratio:5.73 | ||||||
| Chassis | Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Spare wheel carrier: with one spare wheel Aluminum fuel tank: with 400 L fuel tank with locking fuel cap | ||||||
| Steering | Germany , hydraulic steering with power assistance | ||||||
| Brakes | Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS | ||||||
| Wheel & Types | Rims: 8.0-20, 10 hole-steel Types 11.00-20 tube; Option: 12.00-20 tube, 12.00R20 tube | ||||||
| Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 28V, 1540W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp | ||||||
Shipment
Original Spare Parts
Our Product
Thanks for Choosing Us
Q: How about the delivery time?
A: Most of our trucks and machinery are readily available in stock and can be delivered within 7 days. For custom orders, production typically takes approximately 30 days.
Q: How many units of trucks do you have per year?
A: We manage close to 30,000 units annually, with an inventory refresh rate of nearly 5,000 units per month.
Q: How do you control the quality of your products?
A: Our factory operates a standard production workshop staffed with highly trained workers. Each product undergoes rigorous inspection processes. We also professionally recondition trucks and machinery to ensure superior quality.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, custom orders are welcome. Our minimum order quantity (MOQ) is one unit.
