BA EP Grade Sleeve Ball Valves Industrial Field High Pressure Ball Valve
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7 - 15 days for small orders, 15 - 30 days for large orders
Brand:
WEYO
Product Description
BA/EP grade sleeve ball valves play an important role in the industrial field due to their unique sleeve connection technology
BA/EP grade sleeve ball valves play an important role in the industrial field due to their unique sleeve connection technology, superior performance, and wide application scenarios. Its appearance not only improves the sealingand reliability of the system, but also reduces the cost and maintenance difficulty of the system.

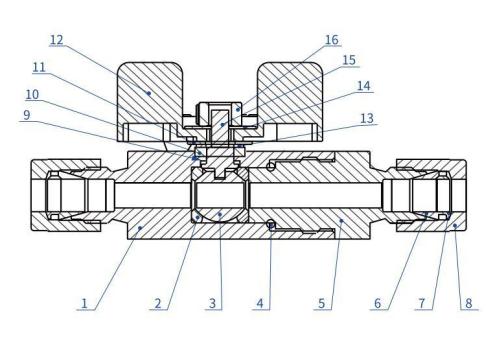

| serial number | Name | material |
1 |
Valve body | SS316 |
| 2 | Ball seal ring | PTFE/PEEK |
| 3 | Steel ball | SS316 |
4 |
O-ring | fluororubber |
5 |
Joint | SS316 |
6 |
Front ferrule | SS316 |
| 7 | Rear ferrule | SS316 |
8 |
Ferrule nut | SS316 |
9 |
Lower gasket | PTFE/PEEK |
| 10 | Upper gasket | PTFE/PEEK |
| 11 | Flat gasket | SS316 |
| 12 | Butterfly knob | ZnA14-1 |
| 13 | Compression ring | SS316 |
| 14 | Nameplate | 1060 alloy |
| 15 | Knob rod | SS316 |
| 16 | Nut | SS304 |

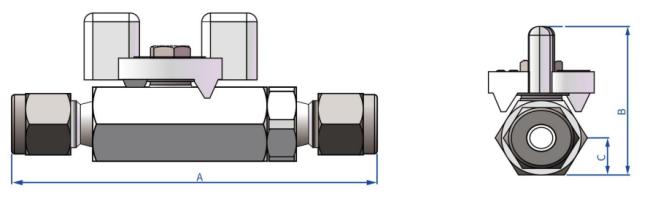

| model | mm | size | ||||||
| A | B | C | ||||||
| mm | mm | mm | mm | |||||
| BV200-TF04-TF04 | 5 | 64.9 | 34.9 | 9.58 | ||||
| BV200-TF06-TF06 | 7.5 | 75 | 42.5 | 11.2 | ||||
| BV200-TF08-TF08 | 9 | 81 | 48.3 | 13.5 | ||||
