ZSSV V Type Control Pneumatic Ball Valves , Pneumatic Operated Ball Valve

Price Negotiable

Price: Based on oroiect reauirements

MOQ: Negotiable

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Brand: WEYO

Product Description

ZSSV Pneumatic V-Type Control Ball Valve

The pneumatic V-type control ball valve is one of the new types of rotary control valves developed by our company in recent years on the basis of absorbing and digesting domestic and foreign products. It is used in regulation or on-off control occasions. The scissor action between the ball core and the sealing seat ensures that the valve works without blockage. The straight-through flow channel has a large flow capacity and is suitable for gases, liquids, steam, fibrous slurries and media with tiny particle suspensions.

Structural Principle

The pneumatic V-type control ball valve is composed of a pneumatic piston actuator and a V-type ball valve. It can realize proportional regulation when equipped with a pneumatic valve positioner, and manual operation can be achieved if a handwheel mechanism is provided.

When the working air pressure enters the upper side (or lower side) of the cylinder of the piston actuator, it pushes the piston to move up and down, drives the connecting rod mechanism to rotate the rocker arm, and realizes the 90-degree rotation adjustment movement of the V-type ball core. The position changes from open or closed to closed or open, so as to control the medium in the pipeline.

Main technical indicators
Nominal diameter DN(mm)	25	40	50	80	100	150	200	250	300
rated flow coefficient Kv	25	63	100	280	400	950	1540	2500	3900
nominal pressure PN(MPa)	1.66.4
operating temperature	-40～150℃
rotation angle α	90°
air supply operating pressure KPa	400～600
model of matched actuator	ZSS-1			ZSS-2			ZSS-3

Notes on Installation and Use

There is no flange on the valve body, and the connection is clamped by two flanges on the pipeline. The distance between the two flanges shall comply with the IEC534-3 standard, and the flanges shall be selected in accordance with the JB/T79·2-94 Cast Steel Flanges standard.
The V-type ball valve should be installed vertically in the pipeline. For the convenience of inspection, adjustment and maintenance, it should be installed as close to the ground or a floor slab as possible.
A bypass pipeline should generally be provided when installing the V-type ball valve.
Before installation, the pipeline should be cleaned. When cleaning the pipeline after installation, the valve should be in the fully open position.
After long-term use of the V-type ball valve, if the sealing surface is slightly damaged, the sealing valve seat can be installed upside down and continue to be used.

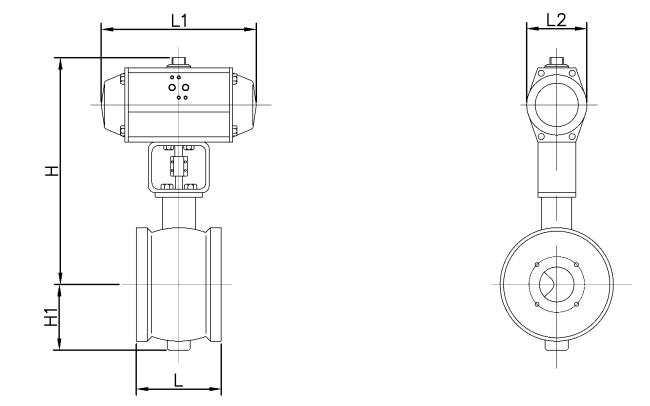

Overall dimensions

Nominal diameter DN(mm)		25	32	40	50	65	80	100	125	150	200	250	300
H1		77	95	95	100	115	125	125	155	165	195	235	275
H	double-acting	319	325	347	362	372	420	430	460	573	593	710	765
H	single-acting	359	365	390	405	415	488	498	508	630	650	757	870
L		102	114	114	124	145	165	194	213	229	243	297	380
L1	double-acting	132	132	203	203	203	222	222	300	337	380	420	450
L1	single-acting	222	222	300	300	300	380	380	380	450	450	603	683
L2	double-acting	83	83	100	100	100	120	120	137	172	172	224	224
L2	single-acting	120	120	137	137	137	172	172	172	224	224	272	360
weight(Kg)	double-acting	7.2	8.5	11	12.8	15.3	17.8	20.5	25.6	46.4	69.6	121	181.8
weight(Kg)	single-acting	11.2	12.8	17.7	19.8	21.7	33	35.1	49.7	68.8	86.3	175	257
Note: Overall dimensions of PN16

Ordering Information

Product model
Nominal diameter
Nominal pressure
Action type
Operating temperature
Material of valve body and valve core
Accessories
