V200-CA Series Cage Control Valve

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 7 - 15 days for small orders. 15 - 30 days for large orders

Brand: WEYO

Product Description

CA Series Cage Angle Control Valve is an extended production of CGP and CGN, apart from different body types, the rest is entirely the same with interchangeable trim parts. The series features pressure balanced single seated plug, balance seal ring and high leakage level, with standard leakage level IV and V for optional. Also the series has small unbalanced force, which can effectively overcome the resistant force of the fluid; therefore smaller actuators can be configured to achieve higher shut-off differential pressure. Windows, multi-hole and contoured-p trim types can be provided for different kinds of conditions.

The standard actuator configuration is multi-spring diaphragm; other actuator types such as cylinder, electric and hydraulic are also available.

Cv Value and Storke (WINDOWS

valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)	valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)
1-1/2 (40)	1-1/2 (40)	28	20	6 (150)	4 (100)	170	40
					5 (125)	280	60
	1-1/2 (40)	33	20		6 (150)	360	60
						400	60
2 (50)	1-1/2 (40)	28	20	8 (200)	6 (150)	360	60
	2 (50)	40	30		7 (150)	500	70
		50	30		8 (200)	640	70
						720	70
2-1/2 (65)	1-1/2 (40)	28	20	10 (250)	8 (200)	640	70
	2 (50)	40	30
	2-1/2 (65)	70	30		10 (250)	1000	90
		80	30
3 (80)	2 (50)	40	30	12(300)	10 (250)	1000	90
	2-1/2 (65)	60	30
	3 (80)	100	40		12 (300)	1400	120
	3 (80)	120	40
4 (100)	2-1/2 (65) 3 (80)	70	30	14 (350)	12 (300)	1400	120
		100	40
	4 (100)	170	40		14 (350)	2000	150
		200	40
5 (125)	3 (80)	100	40	16 (400)	14 (350)	2000	150
	4 (100)	170	40
	5 (125)	280	60		16 (400)	2500	160
		300	60
				18 (450)	16 (400)	2500	160
					18 (450)	3200	200
				20 (500)	18 (450)	3200	200
					20 (500)	4000	200

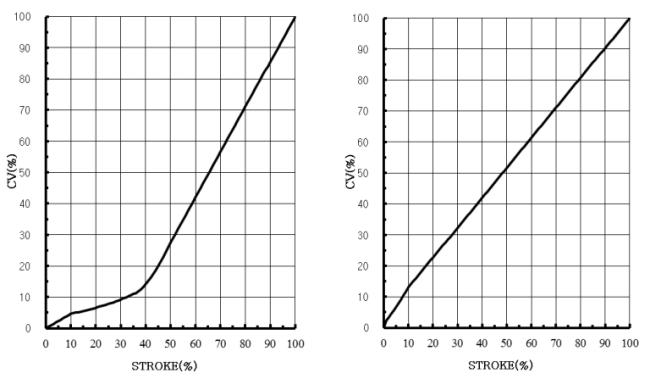

1 ＂ -6 ＂ selected contoured-P

Cv Value and Storke (MULTI-HOLE)

valve size inch(mm)	inch(mm)	Rated Cv	storke(mm)	valve size inch(mm)	inch(mm)	Rated Cv	storke(mm)
EQ-% 1-Stage				LINEAR 1-Stage
1 1/2 (40)	1 1/2 (40)	22	20	1 1/2 (40)	1 1/2 (40)	25	20
2 (50)	2 (50)	36	30	2 (50)	2 (50)	40	30
2 (50)	1 1/2 (40)	22	30	2 (50)	1 1/2 (40)	25	30
2 1/2 (65)	2 1/2 (65)	55	30	2 1/2 (65)	2 1/2 (65)	65	30
	2 (50)	36	30		2 (50)	40	30
	1 1/2 (40)	22	30		1 1/2 (40)	25	30
3 (80)	3 (80)	80	40	3 (80)	3 (80)	100	40
	2 1/2 (65)	70	40		2 1/2 (65)	70	40
	2 (50)	40	40		2 (50)	40	40
4 (100	4 (100	130	40	4 (100	4 (100	150	40
	3 (80)	80	40		3 (80)	100	40
	2 1/2 (65)	70	40		2 1/2 (65)	70	40
5 (125)	5 (125)	220	60	5 (125)	5 (125)	280	60
	4 (100	170	60		4 (100	170	60
	3 (80)	100	60		3 (80)	100	60
6 (150)	6 (150)	250	60	6 (150)	6 (150)	320	60
	5 (125)	220	60		5 (125)	280	60
	4 (100	170	60		4 (100	170	60
8 (200)	8 (200)	450	70	8 (200)	8 (200)	560	70
	7 (175)	400	70		7 (175)	500	70
	6 (150)	320	70		6 (150)	380	70
10 (250)	10 (250)	770	90	10 (250)	10 (250)	970	90
10 (250)	8 (200)	560	90	10 (250)	8 (200)	700	90
12 (300)	12 (300)	1000	120	12 (300)	12 (300)	1300	120
12 (300)	10 (250)	900	120	12 (300)	10 (250)	1100	120
14 (350)	14 (350)	1500	150	14 (350)	14 (350)	1900	150
14 (350)	12 (300)	1200	150	14 (350)	12 (300)	1500	150
16 (400)	16 (400)	1800	160	16 (400)	16 (400)	2200	160
16 (400)	14 (350)	1600	160	16 (400)	14 (350)	2000	160
18 (450)	18 (450)	2600	200	18 (450)	18 (450)	3200	200
18 (450)	16 (400)	2100	200	18 (450)	16 (400)	2600	200
20 (500)	20 (500)	2900	200	20 (500)	20 (500)	3600	200
20 (500)	18 (450)	2600	200	20 (500)	18 (450)	3200	200
EQ-% 2-Stage				LINEAR 2-Stage
2 (50)	1 1/2 (40)	22	30	2 (50)	1 1/2 (40)	25	30
2 1/2 (65)	2 (50)	36	30	2 1/2 (65)	2 (50)	40	30
2 1/2 (65)	1 1/2 (40)	22	30	2 1/2 (65)	1 1/2 (40)	25	30
3 (80)	2 1/2(65)	70	40	3 (80)	2 1/2(65)	70	40
	2 (50)	36	40		2 (50)	40	40
	1 1/2 (40)	22	40		1 1/2 (40)	25	40
4 (100	3 (80)	80	40	4 (100	3 (80)	100	40
	2 1/2(65)	70	40		2 1/2(65)	70	40
	2 (50)	40	40		2 (50)	40	40
5 (125)	4 (100	170	60	5 (125)	4 (100	170	60
	2 1/2(65)	100	60		2 1/2(65)	100	60
	2 (50)	70	60		2 (50)	70	60
6 (150)	5 (125)	220	60	6 (150)	5 (125)	280	60
	4 (100)	170	60		4 (100)	170	60
	3 (80)	100	60		3 (80)	100	60
8 (200)	7 (150)	400	60	8 (200)	7 (150)	500	60
	6(150)	320	60		6(150)	380	60
	5(125)	220	60		5(125)	280	60
10(250)	8 (200)	450	90	10(250)	8 (200)	560	90
	7 (175)	400	90		7 (175)	500	90
	6 (150)	320	90		6 (150)	380	90
12 (300)	10(250)	900	120	12 (300)	10(250)	1100	120
12 (300)	8 (200)	450	120	12 (300)	8 (200)	560	120
14 (350)	12 (300)	1200	150	14 (350)	12 (300)	1200	150
14 (350)	10 (250)	900	150	14 (350)	10 (250)	1100	150
16 (400)	14 (350)	1600	160	16 (400)	14 (350)	2000	160
16 (400)	12 (300)	1200	160	16 (400)	12 (300)	1500	160
18 (450)	16 (400)	2100	200	18 (450)	16 (400)	2600	200
18 (450)	14 (350)	1600	200	18 (450)	14 (350)	2000	200
20 (500)	18 (450)	2600	200	20 (500)	18 (450)	3200	200
20 (500)	16 (400)	2100	200	20 (500)	16 (400)	2600	200
EQ-% 3-Stage				LINEAR 3-Stage
2 1/2 (65)	1 1/2 (40)	22	30	2 1/2 (65)	1 1/2 (40)	25	30
3 (80)	2 (50)	40	40	3 (80)	2 (50)	40	40
4 (100	2 1/2(65)	70	40	4 (100	2 1/2(65)	70	40
5 (125)	3 (80)	100	60	5 (125)	3 (80)	100	60
6 (150)	4 (100)	170	60	6 (150)	4 (100)	170	60
8 (200)	6 (150)	320	70	8 (200)	6 (150)	380	70
10 (250)	8 (200)	560	90	10 (250)	8 (200)	700	90
12 (300)	10(250)	900	120	12 (300)	10(250)	1100	120
14 (350)	12 (300)	1200	150	14 (350)	12 (300)	1500	150
16 (400)	14 (350)	1600	160	16 (400)	14 (350)	2000	160
18 (450)	16 (400)	2100	200	18 (450)	16 (400)	2600	200
20 (500)	18 (450)	2600	200	20 (500)	18 (450)	3200	200

Body Material Temperature - Pressure Range (Table 3)

standard working pressure 工作压力 MPa

600LB					300LB					150LB					℃
CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	℃
9.93	9.92	10.34	10.34	10.21	4.96	4.96	5.17	5.17	5.11	1.9	1.9	2	2	1.96	-29～38
9.63	9.57	10.24	10.23	10.02	4.81	4.78	5.12	5.11	5.01	1.84	1.84	1.92	1.92	1.92	50
8.44	8.18	9.81	9.75	9.28	4.22	4.09	4.9	4.88	4.64	1.62	1.57	1.77	1.77	1.77	100
7.7	7.27	9.33	9.27	9.05	3.85	3.63	4.66	4.64	4.52	1.48	1.39	1.58	1.58	1.58	150
7.13	6.55	8.97	9.1	8.76	3.77	3.28	4.48	4.55	4.38	1.37	1.26	1.4	1.4	1.4	200
6.68	6.11	8.84	8.89	8.34	3.34	3.05	4.42	4.45	4.17	1.21	1.17	1.21	1.2	1.21	250
6.33	5.81	8.49	8.49	7.75	3.16	2.91	4.24	4.24	3.87	1.02	1.02	1.02	1.02	1.02	300
6.08	5.61	8.05	8.05	7.39	3.04	2.81	4.02	4.02	3.7	0.84	0.84	0.84	0.84	0.84	350
5.94	5.55	7.76	7.76	7.29	2.97	2.78	3.88	3.88	3.65	0.74	0.74	0.74	0.74	0.74	375
5.82	5.49	7.32	7.32	6.9	2.91	2.75	3.66	3.66	3.45	0.65	0.65	0.65	0.65	0.65	400
5.73	5.43	7.02	7.02	5.75	2.87	2.72	3.51	3.51	2.88	0.56	0.56	0.56	0.56	0.56	425
5.62	5.37	6.76	6.76		2.81	2.69	3.38	3.38		0.47	0.47	0.47	0.47	/	450
5.47	5.31	6.33	6.33		2.74	2.66	3.17	3.17		0.37	0.37	0.37	0.37	/	475
5.37	5.21	5.56	5.56		2.68	2.61	2.78	2.78		0.28	0.28	0.28	0.28	/	500
5.16	4.78	4.38	4.05		2.58	2.39	2.19	2.03		0.19	0.19	0.19	0.19	/	525
4.99	4.36	3.27			2.5	2.18	1.64			0.13	0.13	0.13		/	550
4.82	4.01	2.34			2.41	2.01	1.17			0.13	0.13	0.13		/	575

Trim Material Temperature Range (Table 4)

No.	Material	℃ Temperature Range	Remark
1	410	-29～427	Heat treatment
2	440	-29～427	热处理 Heat treatment
3	17-4PH	-29～427	Heat treatment
4	INCONEL718	-29～620
5	F11+STF	-29～510	Partial or all stellite alloy overlay welding according to requirements
6	F22+STF	-29～550	Partial or all stellite alloy overlay welding according to requirements
7	F91+STF	-29～620	Partial or all stellite alloy overlay welding according to requirements
8	304	-196～538	Partial or all stellite alloy overlay welding according to requirements
9	316	-196～538	Partial or all stellite alloy overlay welding according to requirements
10	304L	-196～538	Partial or all stellite alloy overlay welding according to requirements
11	316L	-196～538	Partial or all stellite alloy overlay welding according to requirements

Valve Internal Structure

No.	Name	(Q’ty)
1	body	1
2	bonnet	1
3	seat gasket	1
4	plug	1
5	stem	1
6	guide	1
7	balance seal	1
8	balance cylinder	1
13	seat gasket	2
14	bonnet gasket	1
15	packing	1
16	packing	1
17	stem guide	1
18	packing follower	1
19	packing flange	1

Allowable differential pressure (Table5)

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring

DA:Direct action MPa

12"			550			480			370			290			Actuator specification
0.5			0.36			0.36			0.36			0.28			Supply pressure MPa
60-200			80-210/60 80-240/70 80-280/90			110-220/40 80-250/60 80-280/70			130~230/20 80~230/30 80~280/40			60~170/20 60~220/30			kPa Spring range mm Stroke
VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	sealing surface Leakage
									-	10	-	3	-	10	40	1-1/2	inch/ mm
									-	10	-	3	-	10	50	2
						,	10	-	3	-	10	-	-	-	65	2-1/2
							10		3	-	10	-	-	-	80	3
							10		3	-	10	-	-	-	100	4
				10		3	-	10		-	-	-	-	-	125	5
				10		3	-	10		-	-	-	-	-	150	6
				10		3	-	10		-	-	-	-		175	7
	10					3	-	10							200	8
	10		3		10										250	10
3		10													300	12
3		10													350	14
															400	16
															450	18
															500	20

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring(continued)

DA:Direct action MPa

20"			16"			Actuator specification
0.5			0.5			Supply pressure MPa
60-200			60-200			kPa Spring range mm Stroke
VI	V	IV	VI	V	IV	Sealing surface Leakage
						40	1-1/2	inch/ mm
						50	2
						65	2-1/2
						80	3
						100	4
						125	5
						150	6
						175	7
						200	8
						250	10
				10		300	12
				10		350	14
	10		3		10	400	16
	10		3		10	450	18
3	10	10				500	20

Diaphragm Actuator/Graphite Packing Balance Seal 316+TFE

DA:Direct action MPa

20"		16"		12"		550		480		370		290		Actuator specification
0.5		0.5		0.5		0.36		0.36		0.36		0.28		Supply pressure MPa
60-200		60-200		60-200		80-210/60 80-240/70 80-280/90		110-220/40 80-250/60 80-280/70		130~230/20 80~230/30 80~280/40		60~170/20 60~220/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
										10			10	40	1-1/2	inch / mm
										10			10	50	2
								10			10			65	2-1/2
								10			10			80	3
								10			10			100	4
						10			10					125	5
						10			10					150	6
						10			10					175	7
				10					10					200	8
				10			10							250	10
		10			10									300	12
		10			10									350	14
10			10											400	16
10			10											450	18
10	10													500	20

Diaphragm Actuator/Graphite Packing Balance Seal Graphite

DA:Direct action MPa

20"		16"		12"		550		480		370		290		Actuator specification
0.5		0.5		0.5		0.36		0.36		0.36		0.28		= Supply pressure MPa
60-200		60-200		60-200		80-210/60 80-240/70 80-280/90		110-220/40 80-250/60 80-280/70		130~230/20 80~230/30 80~280/40		60~170/20 60~220/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
										10			10	40	1-1/2	inch / mm
										10			10	50	2
								10			10			65	2-1/2
								10			10			80	3
								10			10			100	4
						10			10					125	5
						10			10					150	6
						10			10					175	7
				10					10					200	8
				10			10							250	10
		10			10									300	12
		10			10									350	14
10			10											400	16
10			10											450	18
10	10													500	20

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring

RA:Reverse action MPa

20		16"		12"		480		370		Actuator specification
0.5		0.5		0.5		0.36		0.36		Supply pressure MPa
60-200		60-200		60-200		110-220 40		130~230/20 80~230/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
								10	10	40	1-1/2	inch/mm
								10	10	50	2
						10	10			65	2-1/2
						10	10			80	3
						10	10			100	4
				10	10					125	5
				10	10					150	6
				10	10					175	7
				10	10					200	8
		10	10							250	10
		10	10							300	12
		10	10							350	14
10	10									400	16
10	10									450	18
10	10									500	20

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring

RA:Reverse action MPa

480H			480			370H			370			290			Actuator specification
0.36			0.36			0.40			0.36			0.28			Supply pressure MPa
130-280/60 100-280/70			140-250/40 80-250/60 80-280/70			194-352/30 142-352/40			130~230/20 130~280/30 80~280/40			110~220/20 60~220/30			kPa Spring rangemm Stroke
VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	Sealing surface Leakage
										10		3		10	40	1-1/2	inch/ mm
										10		3		10	50	2
							10		3		10				65	2-1/2
							10		3		10				80	3
							10		3		10				100	4
	10		3		10										125	5
	10		3		10										150	6
	10		3		10										175	7
			3		10										200	8
															250	10
															300	12
															350	14
															400	16
															450	18
															500	20

Diaphragm Actuator/PTFE Packing Balance Seal 316+TFE / Fluorine rubber O ring(continued)

RA:Reverse action MPa

20"			16"			12"			550			Actuator specification
0.5			0.5			0.5			0.36			Supply pressure MPa
60-200			60-200			60-200			80-210/60 80-240/70 80-280/90			kPa Spring range mm Stroke
VI	V	IV	VI	V	IV	VI	V	IV	VI	V	IV	Sealing surface Leakage
												40	1-1/2	inch/mm
												50	2
												65	2-1/2
												80	3
												100	4
												125	5
												150	6
												175	7
							10					200	8
							10		3		10	250	10
				10		3		10				300	12
				10		3		10				350	14
	10		3		10							400	16
	10		3		10							450	18
3	10	10										500	20

Diaphragm Actuator/Graphite Packing Balance Seal 316+TFE

RA:Reverse action MPa

480H		480		370H		370		290		Actuator specification
0.36		0.36		0.40		0.36		0.28		Supply pressure MPa
130-280/60 100-280/70		140-250/40 80-250/60 80-280/70		194-352/30 142-352/40		130~230/20 130~280/30 80~280/40		110~220/20 60~220/30		kPa Spring rangemm Stroke
V	IV	V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
						10			10	40	1-1/2	inch/mm
						10			10	50	2
				10			10			65	2-1/2
				10			10			80	3
				10			10			100	4
10			10							125	5
10			10							150	6
10			10							175	7
			10							200	8
										250	10
										300	12
										350	14
										400	16
										450	18
										500	20

Diaphragm Actuator/Graphite Packing Balance Seal 316+TFE

RA:Reverse action MPa

20"		16"		12"		550		Actuator specification
0.5		0.5		0.5		0.36		Supply pressure MPa
60-200		60-200		60-200		80-210/60 80-240/70 80-280/90		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
								40	1-1/2	inch /mm
								50	2
								65	2-1/2
								80	3
								100	4
								125	5
								150	6
								175	7
				10				200	8
				10			10	250	10
		10			10			300	12
		10			10			350	14
10			10					400	16
10			10					450	18
10	10							500	20

Diaphragm Actuator/Graphite Packing Balance Seal Graphite

RA:反作用 Reverse action MPa

20"		16"		12"		480H		480		370H		370		Actuator specification
0.5		0.5		0.5		0.36		0.36		0.40		0.36		Supply pressure MPa
60-200		60-200		60-200		130-280/60 100-280/70		140-250/40		194-352/30 142-352/40		130~230/20 130~280/30		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	V	IV	V	IV	V	IV	V	IV	Sealing surface Leakage
										10			10	40	1-1/2	inch / mm
										10			10	50	2
								10			10			65	2-1/2
								10			10			80	3
						10			10					100	4
				10	10									125	5
				10	10									150	6
				10	10									175	7
				10	10									200	8
		10	10											250	10
		10	10											300	12
		10	10											350	14
10	10													400	16
10	10													450	18
10	10													500	20

External Dimensions(Table6)

Body Size		L									H
Body Size		ANSI150LB			ANSI300LB			ANSI600LB			standard	Heat sink type
INCH	DN	RF	RJ	Welded	RF	RJ	Welded	RF	RJ	Welded	standard	Heat sink type
1 1/2	40	111	111	126	118	118	126	126	126	126	145	245
2	50	127	129	143	134	136	143	143	145	143	156	256
2 1/2	65	138	140	146	146	148	146	156	158	156	195	295
3	80	149	151	159	159	161	159	169	171	169	210	310
4	100	176	178	184	184	186	184	197	199	197	235	335
5	125	202	204	213	213	215	213	229	231	229	302	372
6	150	226	228	237	237	239	237	254	256	254	326	396
8	200	272	274	284	284	286	284	304	306	305	385	455
10	250	337	339	354	354	356	354	376	378	376	392	462
12	300	369	371	388	388	390	388	410	412	410	493	563
14	350	450	452	464	464	466	464	486	488	486	550	620
16	400	508	510	529	529	531	529	554	556	554	570	640
18	450	572	574	591	591	593	591	620	622	620	650	720
20	500	725	727	725	750	752	750	825	827	825	1500	1600

Actuator Size	E	C	D	F	S	P	Q
290	292	369	214	-	-	-	-
370	370	409	214	-	-	-	-
370H	370	440	214	-	-	-	-
480	482	628	-	350	-	-	-
480H	482	680	-	387	-	-	-
550	560	703	-	387	-	-	-
12＂	-	-	-	-	370	606	393
16＂	-	-	-	-	472	626	450
20＂					600	720	560

FLOW CHARACTERISTICS

(MOD-%) (LINEAR)

(EQ-%) (Q-OPEN)

Get in Touch

Have questions about our products or want to discuss a custom order? Our team is ready to help you.

Company WEYO AUTO TECH

Location Room Milton103, Building 5 - 2, Lane 658, Jinzhong Road, Changning District, Shanghai.

Contact Person flnn

Request A Quote

Email Address *

Please check your email address.

Phone / WhatsApp

Your Message *

Your message must be at least 20 characters.

V200-CA Series Cage Control Valve

Electronic Miniature Sleeve Control Valve Hydraulic Valve 4-20mA 2-10V DC

HTC Boiler Feed Pump Minimum Flow Control Valve 50mm 65mm 80mm 100mm Nominal Diameter

0.14MPa 0.012-0.35MPa 0.012-0.7MPa Air Compressor Filter Regulator Prv Valve

Double Cylinder Pneumatic Wedge Gate Valves For Petroleum Chemical Industry

4-20mA DCLV Electric V Type Control Ball Valve Novel Structure Light Weight

Three Merging Control Valve 3 Way Diverting Control Valve 1'' 1.5'' 2'' 2.5'' 3'' 4''

HPC High Pressure Cage Regulation Valve 40-200mm Nominal Diameter

Cast Through Parallel Gate Valve DN40 50 65 80 100 125 200 250 300

Three Way Micro Flow Single Seated Control Valve ANSI 150 300 600LB PN16 PN40

T50 Filter Type Pressure Regulating Valves Anti Corrosion

ZSSV V Type Control Pneumatic Ball Valves , Pneumatic Operated Ball Valve

HTS Single Seat Control Valve 40-200mm Nominal Diameter High Precision

Get in Touch

Request A Quote
