Product Description

V200-CAH Series High Pressure Cage Angle Control Valve

V200-CAH Series High Pressure Cage Angle Control Valve is an extended production of CGH, the body is angle type. The series features pressure balanced single seated plug, balance seal ring and high leakage level, with standard leakage level IV and V for optional. Moreover the series has small unbalanced force, which can effectively overcome the resistant force of the fluid; therefore smaller actuators can be configured to achieve higher shut-off differential pressure. Windows and multi-hole cage types and contoured-p trim type can be provided for different kinds of high pressure conditions.

The standard actuator configuration is multi-spring diaphragm; other actuator types such as cylinder, electric and hydraulic are also available.

Rated Cv and Stroke

valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)	valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)
900-2500LB				900-1500LB
1/2 (15)	1/4 (6)	0.1	20	1-1/2 (40)	1 (25)	14	20
	1/4 (6)	0.2	20		1-1/4 (32)	20	20
	1/4 (6)	0.3	20		1-1/2 (40)	28	20
	1/4 (6)	0.4	20	2 (50)	1-1/4 (32)	20	20
	1/4 (6)	0.6	20		1-1/2 (40)	28	20
	1/4 (6)	0.8	20		2 (50)	40	30
	5/16 (8)	1	20	2-1/2 (65)	1-1/2 (40)	28	20
	5/16 (8)	1.2	20		2 (50)	40	30
	3/8 (10)	1.5	20		2-1/2 (65)	70	30
	3/8 (10)	2	20	3 (80)	2 (50)	40	30
	1/2 (13)	3	20		2-1/2 (65)	70	30
	1/2 (13)	4	20		3 (80)	100	40
3/4 (20)	5/8 (16)	5	20	4 (100)	2-1/2 (65)	70	30
	3/4 (20)	7	20		3 (80)	100	40
	3/4 (20)	10	20		4 (100)	170	40
1 (25)	1 (25)	12	20
2500LB
1-1/2 (40)	1 (25)	7	20	3 (80)	2 (50)	28	30
	1-1/4 (32)	12	20		2-1/2 (65)	40	30
	1-1/2 (40)	17	20		3 (80)	70	40
2 (50)	1-1/4 (32)	12	20	4 (100)	2-1/2 (65)	40	30
	1-1/2 (40)	17	20		3 (80)	70	40
	2 (50)	28	30		4 (100)	100	40
2-1/2 (65)	1-1/2 (40)	17	20
	2 (50)	28	30
	2-1/2 (65)	40	30

Rated Cv and Stroke (Multi-holes)

valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)	valve size inch(mm)	inch(mm)	Rated Cv	stroke(mm)
900-1500LB
EQ-% 1-Stage				LINEAR 1-Stage
1/2 (15)	1/2 (13)	3	20	1/2 (15)	1/2 (13)	3	20
3/4 (20)	3/4 (20)	7	20	3/4 (20)	3/4 (20)	7	20
	5/8 (16)	5	20		5/8 (16)	5	20
	1/2 (13)	3	20		1/2 (13)	3	20
1 (25)	1 (25)	11	20	1 (25)	1 (25)	11	20
	3/4 (20)	7	20		3/4 (20)	7	20
	5/8 (16)	5	20		1/2 (15)	5	20
1 1/2 (40)	1 1/2 (40)	22	20	1 1/2 (40)	1 1/2 (40)	25	20
	1 1/4 (32)	17	20		1 1/4 (32)	17	20
	1 (25)	11	20		1 (25)	11	20
2 (50)	2 (50)	40	30	2 (50)	2 (50)	40	30
	1 1/2 (40)	22	30		1 1/2 (40)	25	30
	1 1/4 (32)	17	30		1 1/4 (32)	17	30
2 1/2 (65)	2 1/2 (65)	60	30	2 1/2 (65)	2 1/2 (65)	70	30
	2 (50)	40	30		2 (50)	40	30
	1 1/2 (40)	22	30		1 1/2 (40)	25	30
3 (80)	3 (80)	100	40	3 (80)	3 (80)	100	40
	2 1/2 (65)	70	40		2 1/2 (65)	70	40
	2 (50)	40	40		2 (50)	40	40

4 (100	4 (100	130	40	4 (100	4 (100	170	40
	3 (80)	100	40		3 (80)	100	40
	2 1/2 (65)	70	40		2 1/2 (65)	70	40
EQ-% 2-Stage				LINEAR 2-Stage
1 (25)	3/4 (20)	7	20	1 (25)	3/4 (20)	7	20
1 1/2 (40)	1 1/4 (32)	17	20	1 1/2 (40)	1 1/4 (32)	17	20
1 1/2 (40)	1 (25)	11	20	1 1/2 (40)	1 (25)	11	20
2 (50)	1 1/2 (40)	22	30	2 (50)	1 1/2 (40)	25	30
	1 1/4 (32)	17	30		1 1/4 (32)	17	30
	1 (25)	11	30		1 (25)	11	30
2 1/2 (65)	2 (50)	40	30	2 1/2 (65)	2 (50)	40	30
	1 1/2 (40)	22	30		1 1/2 (40)	25	30
	1 1/4 (32)	17	30		1 1/4 (32)	17	30
3 (80)	2 1/2(65)	70	40	3 (80)	2 1/2(65)	70	40
	2 (50)	40	40		2 (50)	40	40
	1 1/2 (40)	22	40		1 1/2 (40)	25	40
4 (100	3 (80)	100	40	4 (100	3 (80)	100	40
	2 1/2(65)	70	40		2 1/2(65)	70	40
	2 (50)	40	40		2 (50)	40	40
EQ-% 3-Stage				LINEAR 3-Stage
1 1/2 (40)	3/4 (20)	7	20	1 1/2 (40)	3/4 (20)	7	20
2 (50)	1 (25)	11	30	2 (50)	1 (25)	11	30
2 1/2 (65)	1 1/2 (40)	22	30	2 1/2 (65)	1 1/2 (40)	25	30
3 (80)	2 (50)	40	40	3 (80)	2 (50)	40	40
4 (100	2 1/2(65)	70	40	4 (100	2 1/2(65)	70	40
2500LB 1-stage 2-stage 3-stage design seperately

Body Material Temperature - Pressure Range (Table 3)

standard working pressure MPa

600LB					300LB					150LB					℃ Temperature
CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	CF8M	CF8	WC9	WC6	WCB	℃ Temperature
9.93	9.92	10.34	10.34	10.21	4.96	4.96	5.17	5.17	5.11	1.90	1.90	2.00	2.00	1.96	-29～38
9.63	9.57	10.24	10.23	10.02	4.81	4.78	5.12	5.11	5.01	1.84	1.84	1.92	1.92	1.92	50
8.44	8.18	9.81	9.75	9.28	4.22	4.09	4.90	4.88	4.64	1.62	1.57	1.77	1.77	1.77	100
7.70	7.27	9.33	9.27	9.05	3.85	3.63	4.66	4.64	4.52	1.48	1.39	1.58	1.58	1.58	150
7.13	6.55	8.97	9.10	8.76	3.77	3.28	4.48	4.55	4.38	1.37	1.26	1.40	1.40	1.40	200
6.68	6.11	8.84	8.89	8.34	3.34	3.05	4.42	4.45	4.17	1.21	1.17	1.21	1.20	1.21	250
6.33	5.81	8.49	8.49	7.75	3.16	2.91	4.24	4.24	3.87	1.02	1.02	1.02	1.02	1.02	300
6.33	5.81	8.49	8.49	7.75	3.16	2.91	4.24	4.24	3.87	1.02	1.02	1.02	1.02	1.02	300
6.08	5.61	8.05	8.05	7.39	3.04	2.81	4.02	4.02	3.70	0.84	0.84	0.84	0.84	0.84	350
5.94	5.55	7.76	7.76	7.29	2.97	2.78	3.88	3.88	3.65	0.74	0.74	0.74	0.74	0.74	375
5.82	5.49	7.32	7.32	6.90	2.91	2.75	3.66	3.66	3.45	0.65	0.65	0.65	0.65	0.65	400
5.73	5.43	7.02	7.02	5.75	2.87	2.72	3.51	3.51	2.88	0.56	0.56	0.56	0.56	0.56	425
5.62	5.37	6.76	6.76		2.81	2.69	3.38	3.38		0.47	0.47	0.47	0.47	/	450
5.47	5.31	6.33	6.33		2.74	2.66	3.17	3.17		0.37	0.37	0.37	0.37	/	475
5.37	5.21	5.56	5.56		2.68	2.61	2.78	2.78		0.28	0.28	0.28	0.28	/	500
5.16	4.78	4.38	4.05		2.58	2.39	2.19	2.03		0.19	0.19	0.19	0.19	/	525
4.99	4.36	3.27			2.50	2.18	1.64			0.13	0.13	0.13		/	550
4.82	4.01	2.34			2.41	2.01	1.17			0.13	0.13	0.13		/	575

Trim Material Temperature Range

No.	Material	℃ Temperature Range	Remark
1	410	-29～427	Heat treatment
2	440	-29～427	Heat treatment
3	17-4PH	-29～427	Heat treatment
4	INCONEL718	-29～620
5	F11+STF	-29～510	Partial or all stellite alloy overlay welding according to requirements
6	F22+STF	-29～550	Partial or all stellite alloy overlay welding according to requirements
7	F91+STF	-29～620	Partial or all stellite alloy overlay welding according to requirements
8	304	-196～538	Partial or all stellite alloy overlay welding according to requirements
9	316	-196～538	Partial or all stellite alloy overlay welding according to requirements
10	304L	-196～538	Partial or all stellite alloy overlay welding according to requirements
11	316L	-196～538	Partial or all stellite alloy overlay welding according to requirements

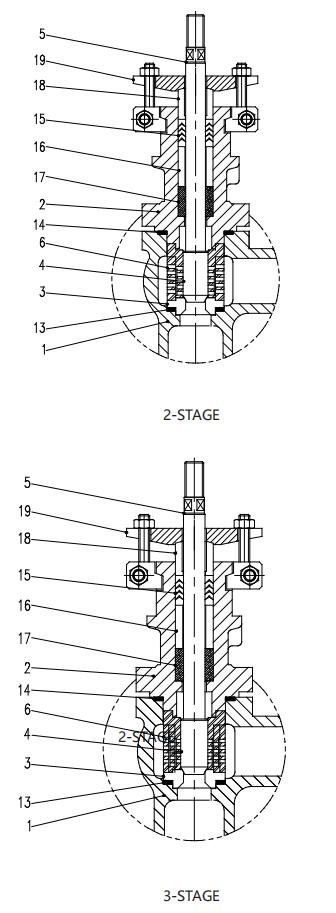

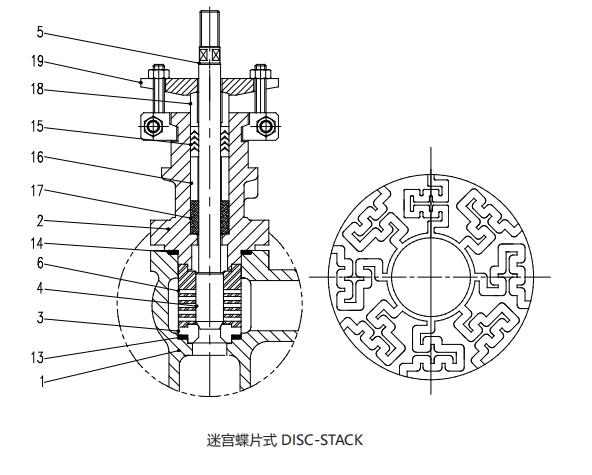

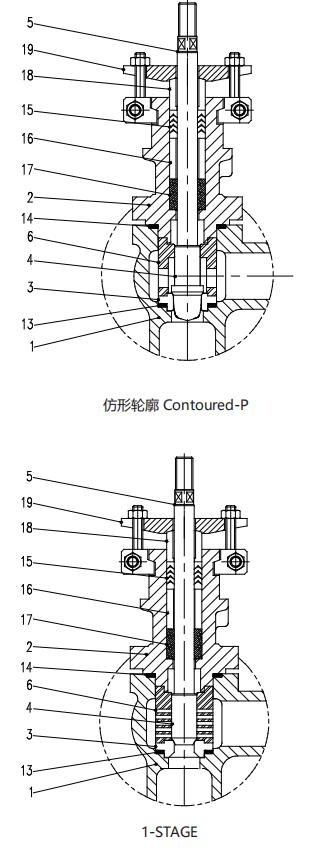

Valve Internal Structure

No.	Name	(Q’ty)
1	body	1
2	bonnet	1
3	seat	1
4	plug	1
5	stem	1
6	cage	1
13	seat gasket	1
14	bonnet gasket	1
15	packing	1
16	packing	1
17	stem guide	1
18	packing follower	1
19	packing flange	1

Allowable differential pressure (Table5)

Diaphragm Actuator/PTFE Packing

DA:Direct action MPa

480		370		Actuator specification
0.36		0.36		Supply pressure MPa
110-200/30 110-220/40		130~230/20		kPa Spring range mm Stroke
V	IV	V	IV	Sealing surface Leakage
		33.7	33.7	6.4	1/4	Seat Size inch/mm
		33.7	33.7	8	5/16
		33.7	33.7	10	3/8
		33.7	33.7	13	1/2
		22.6	23.2	16	5/8
		15.0	19.4	20	3/4
		10.6	15.4	25	1
		3.2	8.2	32	1-1/4
		2.2	7.0	40	1-1/2
6.2	9.4	-	3.8	50	2
3.0	5.9			65	2-1/2
0.7	3.2			80	3
-	1.6			100	4

Diaphragm Actuator/Graphite Packing

DA: Direct action MPa

480		370		Actuator specification
0.36		0.36		Supply pressure MPa
110-200/30 110-220/40		130~230/20		kPa Spring range mm Stroke
V	IV	V	IV	Sealing surface Leakage
		29.1	29.1	6.4	1/4	Seat Size inch/mm
		29.1	29.1	8	5/16
		29.1	29.1	10	3/8
		29.1	29.1	13	1/2
		19.5	20.9	16	5/8
		13.4	17.7	20	3/4
		9.7	14.3	25	1
		3.0	7.8	32	1-1/4
		2.0	6.7	40	1-1/2
6.0	9.2	-	3.7	50	2
2.9	5.8			65	2-1/2
0.7	3.2			80	3
-	1.6			100	4

Diaphragm Actuator/PTFE Packing

RA:Reverse action MPa

480		370H		370		Actuator specification
0.36		0.40		0.36		Supply pressure MPa
170-250/30 140-250/40		224-352/20 194-352/30		130~230/20		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	Sealing surface Leakage
				33.7	33.7	6.4	1/4	Seat Size I nch/mm
				33.7	33.7	8	5/16
				33.7	33.7	10	3/8
				33.7	33.7	13	1/2
				22.6	23.2	16	5/8
				15.0	19.4	20	3/4
				10.6	15.4	25	1
				3.2	8.2	32	1-1/4
				2.2	7.0	40	1-1/2
6.2	9.4	2.3	6.1	-	3.8	50	2
3.0	5.9	-	0.6			65	2-1/2
0.7	3.2	-	1.6			80	3
-	1.6	-	0.7			100	4

Diaphragm Actuator/Graphite Packing

RA:Reverse action MPa

480		370H		370		Actuator specification
0.36		0.40		0.36		Supply pressure MPa
170-250/30 140-250/40		224-352/20 194-352/30		130~230/20		kPa Spring range mm Stroke
V	IV	V	IV	V	IV	Sealing surface Leakage
				29.1	29.1	6.4	1/4	Seat Size I nch/mm
				29.1	29.1	8	5/16
				29.1	29.1	10	3/8
				29.1	29.1	13	1/2
				19.5	20.9	16	5/8
				13.4	17.7	20	3/4
				9.7	14.3	25	1
				3.0	7.8	32	1-1/4
				2.0	6.7	40	1-1/2
6.0	9.2	2.2	6.0		3.7	50	2
2.9	5.8	-	0.6			65	2-1/2
0.7	3.2	-	1.5			80	3
-	1.6	-	0.7			100	4

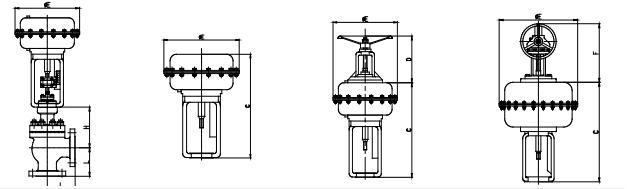

External Dimensions

Body Size		L									H
Body Size		ANSI900LB			ANSI1500LB			ANSI2500LB			standard	heat sink type
INCH	DN	RF	RJ	Welded	RF	RJ	Welded	RF	RJ	Welded	standard	heat sink type
1/2	15	196	196	196	196	196	196	159	159	159	157	257
3/4	20	196	196	196	196	196	196	159	159	159	157	257
1	25	196	196	196	196	196	196	159	159	159	157	257
11/2	40	167	167	167	167	167	167	191	191	191	200	270
2	50	188	190	188	188	190	188	200	202	200	223	293
21/2	65	205	207	205	205	207	205	221	223	221	236	306
3	80	221	223	230	230	232	230	330	332	330	295	365
4	100	256	258	265	265	267	265	369	371	369	334	404

Body Size		L		H
Body Size		PN220	PN320	standard type	heat sink type
INCH	DN	Threaded flange	Threaded flange	standard type	heat sink type
1月2日	15	105	105	157	257
1	25	120	120	157	257
1 1/2	40	165	165	200	270
2	50	190	190	223	293
2 1/2	65	215	215	236	306
3	80	260	260	295	365
4	100	290	290	334	404

Actuator Size	E	C	D	F
370	370	409	214
370H	370	440	214
480	482	628	-	350

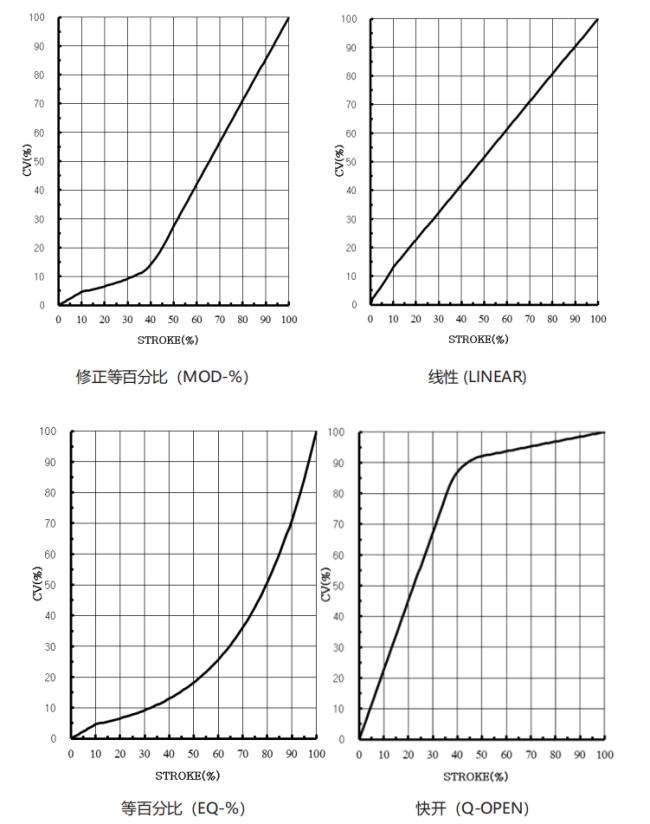

FLOW CHARACTERISTICS
