TCB Cage Type Control Valve
Price:
Based on oroiect reauirements
MOQ:
Negotiable
Delivery Time:
7-15 days for small orders, 15-30 days for large orders
Brand:
WEYO
Product Description
The TCB cage-type control valve is an improved pressure-balanced control valve. The valve sleeve is equipped with a high-performance sealing ring, which effectively improves the leakage class. The fluid channel of the valve body is in an S-shaped streamline design, and there is also a guide vane that improves the smooth flow of fluid around the sleeve. It has the advantages of small pressure drop loss, large flow rate, wide adjustable range, high accuracy of flow characteristic curve, good dynamic stability, low noise, and little cavitation corrosion.
The control valve is matched with a multi-spring diaphragm actuator, which features a compact structure and large output force.

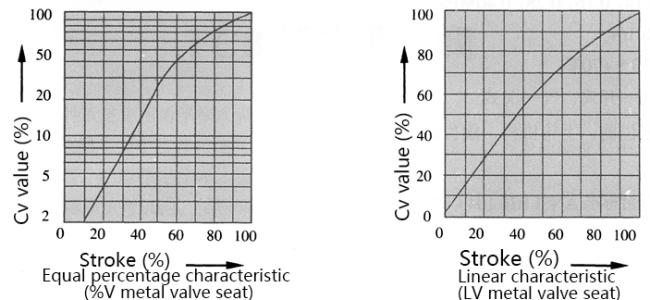

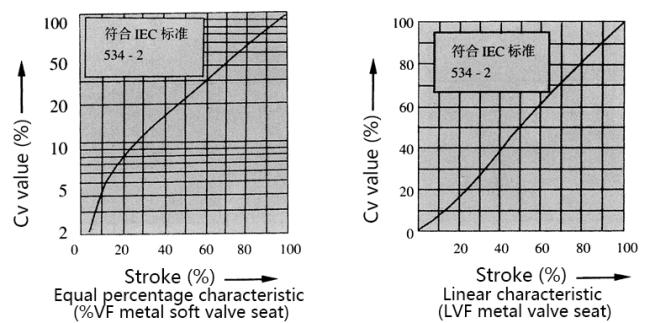

Cv value and stroke are shown in Table 1. Table 1
| 公称通径(mm) | 40 | 50 | 65 | 80 | 100 | ||||||||||||
| 阀座直径(mm) | 25 | 32 | 40 | 32 | 40 | 50 | 40 | 50 | 65 | 50 | 65 | 80 | 65 | 80 | 100 | ||
| 额 定 Cv 值 |
高精度 套筒 |
等百分 比特性 线性特 性 |
11 | 17 | 24 | 17 | 24 | 44 | 24 | 44 | 68 | 44 | 68 | 99 | 68 | 99 | 175 |
| 高容量 套筒 |
等百分 比特性 |
36 | 60 | 100 | 140 | 220 | |||||||||||
| 线性 特性 |
44 | 75 | 110 | 150 | 240 | ||||||||||||
| 额定行程(mm) | 25 | 38 | |||||||||||||||
Allowable pressure difference
A. Air-to-close valve Table 2 Unit: MPa
| Actuator | Supply pressure | Spring range | Allowable pressure difference | ||||
| Nominal diameter(mm) | |||||||
| 40 | 50 | 65 | 80 | 100 | |||
| HA2D | 0.16 | 0.02-0.10 | 4.0 4.92 |
3.8 | 3.29 | 2.74 | 2.08 |
| 0.4 | 0.08-0.24 | 4.0 10.0 |
4.0 10.0 |
4.0 9.87 |
4.0 8.23 |
4.0 6.28 |
|
| HA3D | 0.16 | 0.02-0.10 | 4.0 8.7 |
4.0 6.7 |
4.0 5.8 |
4.0 4.87 |
3.7 |
| 0.4 | 0.08-0.24 | 4.0 10.0 |
4.0 10.0 |
4.0 10.0 |
4.0 10.0 |
4.0 10.0 |
|
| HA4D | 0.16 | 0.02-0.10 | 4.0 10.0 |
4.0 8.39 |
4.0 6.36 |
||
| 0.4 | 0.08-0.24 | 4.0 10.0 |
4.0 10.0 |
4.0 10.0 |
|||
B. Gas - Open Valve Table 3 Unit: MPa
| Actuator | Gas supply pressure (MPa) |
Spring range (MPa) |
Allowable pressure difference(MPa) | ||||
| Nominal diameter(mm) | |||||||
| 40 | 50 | 65 | 80 | 100 | |||
| HA2R | 0.28 | 0.08-0.24 | 4 | 4 | 4 | 3.84 | 2.93 |
| 6.81 | 5.39 | 4.6 | |||||
| HA3R | 0.28 | 0.08-0.24 | 4 | 4 | 4 | 4 | 4 |
| 10 | 9.57 | 8.17 | 6.8 | 5.18 | |||
| HA4R | 0.28 | 0.08-0.24 | 4 | 4 | 4 | ||
| 10 | 10 | 8.97 | |||||

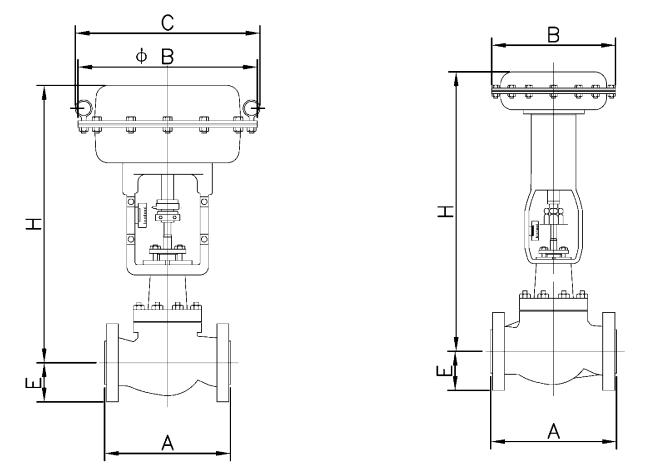

Equipped with HA execution machine broussonetia papyrifera Equipped with VA5 execution machine broussonetia papyrifera
