HAV Venturi Angle Valve
The HAV Venturi angle valve is a control valve with a top-guided structure. The valve body features a smooth flow path, resulting in low pressure drop loss and large flow capacity. The valve core has a large guiding area, ensuring excellent vibration resistance. The control valve is equipped with a multi-spring diaphragm actuator, which is compact in structure and provides large output force. Angle valves are widely used to control fluids containing particles, slurries, viscous fluids, or flashing fluids.
| Cv value and stroke: see Table 1 | |||||||||||||||||||||||||||
| Nominal diameter(mm) | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | |||||||||||||||||||
| Valve seat diameter(mm) | - | - | - | - | - | - | 20 | 25 | 32 | 25 | 32 | 40 | 32 | 40 | 50 | 40 | 50 | 65 | 50 | 65 | 80 | 65 | 80 | 100 | 80 | 100 | 125 |
| Rated Cv value | 1 | 1.6 | 2.5 | 4 | 6.3 | 11 | 11 | 17 | 24 | 17 | 24 | 44 | 24 | 44 | 68 | 44 | 68 | 99 | 68 | 99 | 175 | 99 | 175 | 275 | 175 | 275 | 395 |
| Rated stroke(mm) | 14.3 | 25 | 38 | 50 | 50 | ||||||||||||||||||||||
| Allowable pressure difference: see Table 2 The valve is equipped with HA or VA actuators (side-in and bottom-out) Air-closed or air-open valves Table 2 |
|||||||||||||||
| Actuator | Supply pressure (MPa) |
Spring range (MPa) |
Positioner | Allowable pressure difference (MPa) | |||||||||||
| Valve seat diameter (mm) | |||||||||||||||
| Cv 1.01.6 |
Cv 2.5 |
Cv 4.06.3 |
Cv 11 |
25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | ||||
| HA2D,R | 0.14 | 0.02-0.10 | With or With out | 4 | 4 | 4 | 4 | 2.19 | 1.01 | 0.68 | 0.41 | 0.25 | 0.18 | ||
| 0.28 | 0.08-0.24 | With | 4 | 4 | 4 | 4 | 4 | 2.01 | 1.37 | 0.82 | 0.5 | 0.36 | |||
| HA3D,R | 0.14 | 0.02-0.10 | With or With out | 1.79 | 1.21 | 0.72 | 0.45 | 0.32 | 0.18 | 0.12 | |||||
| 0.28 | 0.08-0.24 | With | 3.57 | 2.42 | 1.45 | 0.89 | 0.64 | 0.36 | 0.23 | ||||||
| HA4D,R | 0.14 | 0.02-0.10 | With or With out | 3.09 | 2.09 | 1.25 | 0.77 | 0.56 | 0.31 | 0.2 | |||||
| 0.28 | 0.08-0.24 | With | 4 | 4 | 2.5 | 1.54 | 1.11 | 0.62 | 0.4 | ||||||
| VA5D,R | 0.14 | 0.02-0.10 | With or With out | 1.6 | 1 | 0.75 | 0.42 | 0.27 | |||||||
| 0.28 | 0.04-0.20 | With | 3.2 | 2.1 | 1.5 | 0.85 | 0.54 | ||||||||
| VA6R | 0.5 | 0.19-0.40 | 0.91 | 0.58 | |||||||||||
|
1.The numbers in the dark boxes indicate the standard specification actuators matched with the valve. 2.The maximum allowable pressure difference shall not exceed the maximum value specified in the ANSI B16.34 or JIS B2201 standards. |
|||||||||||||||

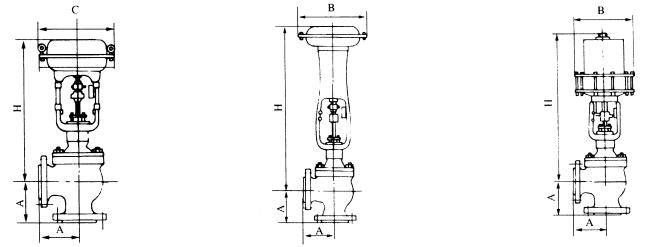

| Overall dimensions Table 4 Unit: mm | ||||||
| Nominal diameter | Actuator | H | C | φB | ||
| Normal temperature type | Extended type Ⅰ | Bellows seal | ||||
| 25 | HA2D,R | 465 | 620 | - | 281 | 267 |
| 40 | HA2D,R | 475 | 625 | 281 | 267 | |
| HA3D,R | 580 | 730 | 363 | 350 | ||
| 50 | HA2D,R | 475 | 625 | 281 | 267 | |
| HA3D,R | 580 | 730 | 363 | 350 | ||
| 65 | HA2D,R | 545 | 695 | 765 | 281 | 267 |
| HA3D,R | 600 | 750 | 363 | 350 | ||
| HA4D,R | 840 | 990 | 520 | 470 | ||
| 80 | HA2D,R | 555 | 705 | 775 | 281 | 267 |
| HA3D,R | 610 | 760 | 363 | 350 | ||
| HA4D,R | 840 | 990 | 520 | 470 | ||
| 100 | HA2D,R | 555 | 710 | 775 | 281 | 267 |
| HA3D,R | 610 | 765 | 363 | 350 | ||
| HA4D,R | 845 | 995 | 520 | 470 | ||
| 125 | HA3D,R | 700 | 850 | 990 | 363 | 350 |
| HA4D,R | 865 | 1015 | 520 | 470 | ||
| 150 | HA3D,R | 720 | 870 | 1005 | 363 | 350 |
| HA4D,R | 885 | 1035 | - | 520 | 470 | |
|
1.The dimension in column H of the table refers to the value when the control valve is not equipped with a handwheel mechanism. If a top-mounted handwheel mechanism is installed, the dimension of the handwheel mechanism should be added accordingly. |
||||||
Equipped with HA,VA5,VA6 actuator
