HAC Cage-Type Angle Valve
Price:
Based on oroiect reauirements
MOQ:
Negotiable
Delivery Time:
7 - 15 days for small orders, 15 - 30 days for large orders
Brand:
WEYO
Product Description
The HAC cage-type angle valve is a pressure-balanced control valve. Its valve body has a compact structure and is equipped with guide vanes that improve the smooth flow of fluid around the sleeve. It boasts advantages such as low pressure drop loss, small flow rate, a wide adjustable range, and high precision of flow characteristic curves. The angle valve can be selected according to the requirements of pipeline steering layout.
The control valve is matched with a multi-spring diaphragm actuator, which features a compact structure and large output force. This valve has good dynamic stability, low noise, and little cavitation corrosion, making it suitable for controlling high-pressure difference fluids.
| Cv value and stroke: see Table 1 Table 1 | |||||||||||||||||||||||
| Nominal Diameter(mm) | 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||||||||||||||||
| Valve Seat Diameter(mm) | 25 | 32 | 40 | 32 | 40 | 50 | 40 | 50 | 65 | 50 | 65 | 80 | 65 | 80 | 100 | 100 | 125 | 150 | 125 | 150 | 200 | ||
| Rated Cv Value | High-Capacity Sleeve | Equal Percentage | 36 | 60 | 100 | 140 | 220 | 420 | 820 | ||||||||||||||
| Linear | 40 | 75 | 110 | 150 | 240 | 435 | 850 | ||||||||||||||||
| High-Precision Sleeve | 11 | 17 | 24 | 17 | 24 | 44 | 24 | 44 | 68 | 44 | 68 | 99 | 68 | 99 | 175 | 175 | 275 | 360 | 275 | 360 | 650 | ||
| Rated Stroke mm | 25 | 38 | 50 | 75 | |||||||||||||||||||
| Remarks: The flow characteristics of the high-precision metal valve seat comply with the IEC534-2 standard. | |||||||||||||||||||||||
|
Allowable Pressure Difference
I. Metal Valve Seat
A. Air-Closed Valve: see Table 2 Table 2
|
||||||||||
| Actuator | Supply pressure (MPa) |
Spring range (MPa) |
Positioner | Allowable pressure difference(MPa) | ||||||
| Nominal diameter(mm) | ||||||||||
| 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||||
| HA2D | 0.14 | 0.02~0.10 | With or With out | 0.99 | 0.77 | 0.66 | 0.54 | 0.42 | - | - |
| 0.16 | With | 4 4.92 |
3.8 | 3.29 | 2.74 | 2.08 | - | - | ||
| 0.4 | 0.08~0.24 | With | 4 10 |
4 10 |
4 9.87 |
4 8.23 |
4 6.28 |
- | - | |
| HA3D | 0.14 | 0.02~0.10 | With or With out | 1.75 | 1.37 | 1.17 | 0.97 | 0.74 | 0.52 | - |
| 0.16 | With | 4 8.7 |
4 6.7 |
4 5.8 |
4 4.87 |
3.7 | 2.61 | - | ||
| 0.4 | 0.08~0.24 | With | 4 10 |
4 10 |
4 10 |
4 10 |
4 10 |
4 7.86 |
- | |
| HA4D | 0.14 | 0.02~0.10 | With or With out | - | - | 2.02 | 1.67 | 1.28 | 0.9 | 0.74 |
| 0.16 | With | - | - | 4 10 |
4 8.39 |
4 6.36 |
4 4.5 |
3.7 | ||
| 0.4 | 0.08~0.24 | With | - | - | 4 10 |
4 10 |
4 10 |
4 10 |
4 10 |
|
| B. Air-open valve: see Table 3 Table 3 | ||||||||||
| Actuator | Supply pressure (MPa) |
Spring range (MPa) |
Positioner | Allowable pressure difference(MPa) | ||||||
| Nominal diameter(mm) | ||||||||||
| 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||||
| HA2R | 0.14 | 0.02~0.10 | With or With out | 0.99 | 0.77 | 0.66 | 0.54 | 0.42 | - | - |
| 0.28 | 0.08~0.24 | With | 4 6.81 |
4 5.39 |
4 4.6 |
3.84 | 2.93 | - | - | |
| HA3R | 0.14 | 0.02~0.10 | With or With out | 1.75 | 1.37 | 1.17 | 0.97 | 0.74 | 0.52 | - |
| 0.28 | 0.08~0.24 | With | 4 10 |
4 9.57 |
4 8.17 |
4 6.8 |
4 5.18 |
3.67 | - | |
| HA4R | 0.14 | 0.02~0.10 | With or With out | - | - | 2.02 | 1.67 | 1.28 | 0.9 | 0.74 |
| 0.28 | 0.08~0.24 | With | - | - | 4 10 |
4 10 |
4 8.97 |
4 6.3 |
4 5.1 |
|
| VA5R | 0.14 | 0.02~0.10 | With or With out | - | - | - | - | 1.75 | 1.23 | 1.02 |
| 0.14 | 0.04~0.12 | With or With out | - | - | - | - | 4 5.2 |
3.7 | 3.07 | |
| 0.28 | 0.08~0.24 | With | - | - | - | - | 4 10 |
4 8 |
4 7 |
|
| VA6R | 0.4 | 0.19~0.35 | With | - | - | - | - | 4 10 |
- | - |
| 0.5 | 0.19~0.35 | With | - | - | - | - | - | 4 10 |
- | |
|
1.The numbers in the dark boxes indicate the actuators specified in the standards that are matched with the valve. 2.The maximum allowable pressure difference shall not exceed the maximum value specified in ANSI B16.34 or JIS B2201. 3.In the same cell, the upper number represents the allowable pressure difference when the valve is fully open, and the lower number represents the allowable pressure difference when the valve is closed. |
||||||||||
II. Soft Valve Seat: see Tables 4 and 5
| A. Air-closed Valve: Table 4 | ||||||||||
| Actuator | Supply pressure (MPa) |
Spring range (MPa) |
Positioner | Allowable pressure difference (MPa) | ||||||
| Nominal diameter (mm) | ||||||||||
| 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||||
| HA2D | 0.14 | 0.02~0.10 | With or With out | 0.69 | 0.54 | 0.46 | 0.38 | 0.29 | - | - |
| 0.16 | With | 3 | 2.66 | 2.3 | 1.92 | 1.46 | - | - | ||
| 0.4 | 0.08~0.24 | With | 3 | 3 | 3 | 3 | 3 | - | - | |
| HA3D | 0.14 | 0.02~0.10 | With or With out | 1.23 | 0.96 | 0.82 | 0.68 | 0.52 | 0.36 | - |
| 0.16 | With | 3 | 3 | 3 | 3 | 2.59 | 1.83 | - | ||
| 0.4 | 0.08~0.24 | With | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| HA4D | 0.14 | 0.02~0.10 | With or With out | - | - | 1.41 | 1.17 | 0.9 | 0.63 | 0.52 |
| 0.16 | With | - | - | 3 | 3 | 3 | 3 | 2.59 | ||
| 0.4 | 0.08~0.24 | With | - | - | 3 | 3 | 3 | 3 | 3 | |
| B. Air-open valve: Table 5 | ||||||||||
| Actuator | Supply pressure (MPa) |
Spring range (MPa) |
Positioner | Allowable pressure difference (MPa) | ||||||
| Nominal diameter (mm) | ||||||||||
| 40 | 50 | 65 | 80 | 100 | 150 | 200 | ||||
| HA2R | 0.14 | 0.02~0.10 | With or With out | 0.69 | 0.54 | 0.46 | 0.38 | 0.29 | - | - |
| 0.28 | 0.08~0.24 | With | 3 | 3 | 3 | 2.69 | 2.05 | - | - | |
| HA3R | 0.14 | 0.02~0.10 | With or With out | 1.23 | 0.96 | 0.82 | 0.68 | 0.52 | 0.36 | - |
| 0.28 | 0.08~0.24 | With | 3 | 3 | 3 | 3 | 3 | 2.57 | - | |
| HA4R | 0.14 | 0.02~0.10 | With or With out | - | - | 1.41 | 1.17 | 0.9 | 0.63 | 0.52 |
| 0.28 | 0.08~0.24 | With | - | - | 3 | 3 | 3 | 3 | 3 | |

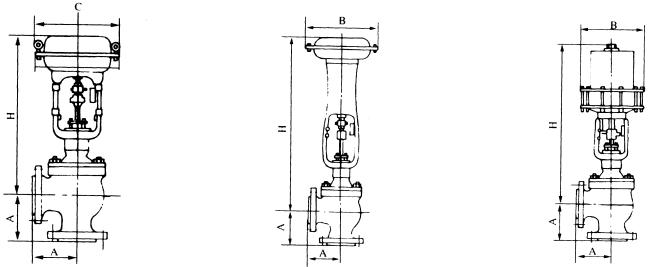

| Flange distance: see Table 6 Table 6 Unit: mm | |||||||||
| Nominal diameter | A | ||||||||
| ANSI125FF ANSI150RF JIS10KFFRF PN1.6(MPa) |
JIS16K RF |
ANSI300 JIS2030KRF PN4.0(MPa) |
ANSI600 JIS40KRF PN6.4(MPa) |
ANSI 150 RJ |
ANSI 300 RJ |
ANSI 600 RJ |
ANSI 300 LG |
ANSI 600 LG |
|
| 40 | 111 | 117 | 117 | 125 | 117 | 124 | 125 | 124 | 125 |
| 50 | 127 | 133 | 133 | 143 | 133 | 141 | 144 | 141 | 144 |
| 65 | 138 | 146 | 146 | 156 | 144 | 154 | 157 | 154 | 157 |
| 80 | 149 | 159 | 159 | 168 | 156 | 167 | 170 | 167 | 170 |
| 100 | 176 | 184 | 184 | 197 | 183 | 192 | 198 | 192 | 198 |
| 150 | 225 | 237 | 237 | 254 | 232 | 244 | 256 | 244 | 256 |
| 200 | 271 | 280 | 284 | 305 | 278 | 292 | 306 | 284 | 305 |
Equipped with HA,VA5,VA6 actuator
