FR Series Pneumatic Eccentric Control Valve

Price Negotiable

Price: Based on oroiect reauirements

MOQ: Negotiable

Delivery Time: 7 - 15 days for small orders, 15 - 30 days for large orders

Brand: WEYO

Product Description

FR Series Pneumatic Eccentric Control Valve

The FR series pneumatic eccentric rotary control valve (also known as the cam flexure valve) adopts Masoneilan technology combined with China's characteristics. It integrates the advantages of single-seat valves, ball valves, butterfly valves, etc., and has prominent features such as a simple structure, small size, light weight, large rated flow coefficient, wide adjustable range, wide operating temperature range, small leakage, and good stability.

Since the valve core and valve stem only perform rotational movement, the friction force they bear during operation is very small. When the valve core and valve seat are in contact and closed, the flexible arm of the valve core produces slight elastic deformation and elastic tension under the thrust of the actuator, making the contact between the valve core and the valve seat more tight and firm. Therefore, the leakage of the eccentric valve is very small. At the same time, the actuator thrust required to close the valve is smaller compared with ball valves and butterfly valves.

For these reasons, this series of products is widely used in industrial process automatic control systems such as chemical industry, metallurgy, and power plants.

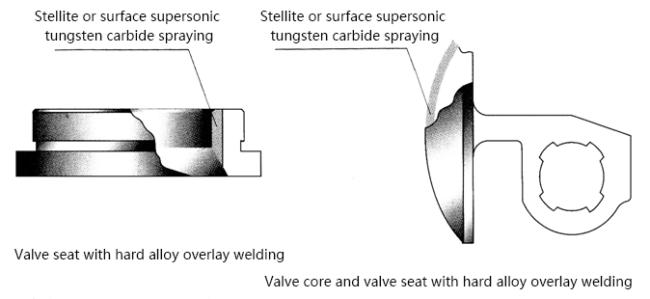

Structural Materials

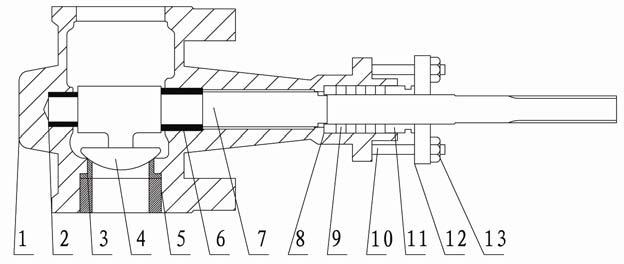

Serial Number	Name	Material
1	Valve Body	WCB SCS13 SCS14 ZG25 ZGICr18Ni9 ZG0Cr18Ni12Mo2Ti
2	Lower Guide Bushing	9Cr18 SUS316+ST
3	Valve Seat	0Cr18Ni12Mo2Ti SUS316+ST
4	Valve Core	SUS316+ST
5	Gland Nut	0Cr18Ni12Mo2Ti SUS316+ST
6	Upper Guide Bushing	9Cr18 SUS316+ST
7	Valve Stem	0Cr18Ni12Mo2Ti SUS316
8	Gasket	1Cr18Ni90Cr18Ni12Mo2Ti
9	Packing	Polytetrafluoroethylene (PTFE) + Asbestos, Graphite
10	Packing Bolt	1Cr18Ni9
11	Packing Gland	1Cr18Ni9
12	Pressure Plate	ZG25 ZG1Cr18Ni9
13	Nut	1Cr18Ni9

1. Basic technical parameters
Caliber		1＂	1＂ 12	2＂	3＂	4＂	6＂	8＂	10＂	12＂
Flow coefficient Cv		14	30	50	135	230	500	850	1300	1750
		8.4	18	30	81	138	300	510	780	1050
		5.6	12	20	54	92	200	340	520	700

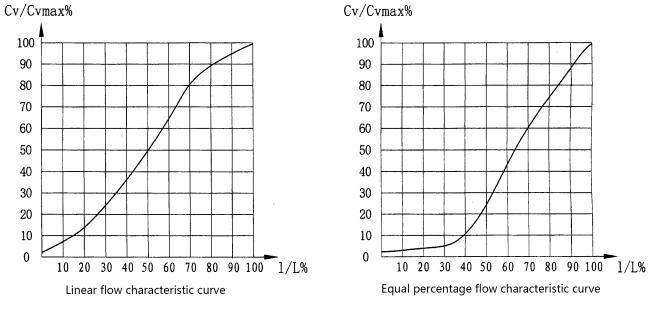

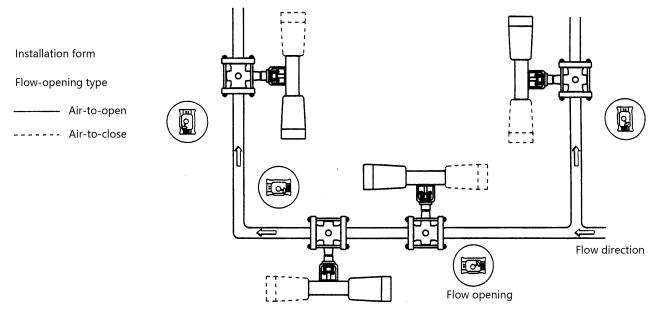

Flow characteristic		Approximate value line (logarithmic linear and other characteristics must be equipped with a valve positioner)
Pressure class		ANSI150300600
Stroke		Rotation angle 50°
Valve seat leakage		ANSI B16.104 Ⅳ (metal seal) Ⅵ (soft seal)
Operating temperature (℃)		-195～+400
Turndown ratio		100∶1
Actuator	Rolling diaphragm type	DL1			DL2		DL3
	Pneumatic piston type	PL1			PL2		PL3		PL4
Connection form		Wafer type

3. Structural materials
Serial Number	Name	Material
1	Valve Body	WCBSCS13SCS14ZG25ZGlCr18Ni9ZG0Cr18Ni12Mo2Ti
2	Lower Guide Bushing	9Cr18SUS316+ST
3	Valve Seat	0Cr18Ni12Mo2TiSUS316+ST
4	Valve Core	SUS316+ST
5	Gland Nut	0Cr18Ni12Mo2TiSUS316+ST
6	Upper Guide Bushing	9Cr18SUS316+ST
7	Valve Stem	0Cr18Ni12Mo2TiSUS316
8	Gasket	1Cr18Ni90Cr18Ni12Mo2Ti
9	Packing	Polytetrafluoroethylene + asbestos graphite
10	Packing bolt	1Cr18Ni9
11	Packing gland	1Cr18Ni9
12	Pressure plate	ZG25ZG1Cr18Ni9
13	Nut	1Cr18Ni9

4. Allowable pressure difference

(1) Hard seal structure Unit: MPa
Caliber	Cv	Air-to-open and flow-opening type	Air-to-open and flow-closing type or air-to-close and flow-opening type
			Air supply pressure
			0.14	0.18	0.21	0.25	0.28	0.32	0.35	0.39	0.42	0.46	0.49	0.53
1＂	14 5.6	7.0 10.2	7.0 10.0
＂ 1 1 2	30 12	4.7 9.8	3.0 6.3	5.6 10.2
2＂	50 20	2.5 5.2	1.6 3.3	3.5 7.0	4.2 7.0
3＂	135 54	2.0 4.5	1.3 2.8	2.7 6.1	4.2 7.0
4＂	230 92	1.0 2.2	0.63 1.4	1.4 3.0	2.2 4.9	3.1 6.8	3.9 7.0	4.1 7.0
6＂	500	0.63			0.35 0.35 0.35	0.91 0.91 0.91	1.4 1.4 1.4	2.1 2.1 2.1	2.5 2.5	3.1 3.1	3.7 3.7	4.2 4.2
6＂	200	1.4			0.77 0.77 0.77	2.0 2.0 2.0	3.2 3.2 3.2	4.4 4.4 3.5	5.6 5.6	6.8 6.8	7.0 7.0
	850	0.32			0.18 0.18 0.18	0.42 0.42 0.42	0.7 0.7 0.63	1.0 1.0	1.3 1.3	1.5	1.8	2.1	2.4	2.5
8＂	510	0.49			0.28 0.28 0.28	0.7 0.7 0.7	1.1 1.1 1.0	1.5 1.5	2.0 2.0	2.4	2.8	3.2	3.7	3.9
	340	0.77			0.42 0.42 0.42	1.1 1.1 1.0	1.8 1.8 1.5	2.5 2.5	3.2 3.2	3.9	4.5	5.2	5.9	6.3
10＂	1300	0.18			0.11 0.11 0.11	0.25 0.25 0.25	0.38 0.35 0.38	0.56 0.56	0.7 0.7	0.84	0.98	1.1	1.3	1.5
	780	0.42			0.14 0.14 0.14	0.35 0.35 0.35	0.56 0.56 0.49	0.84 0.84	1.1 1.1	1.3	1.5	1.8	2	2.2
	520	0.42			0.25 0.25 0.25	0.63 0.63 0.63	0.98 0.98 0.84	1.3 1.3	1.7 1.7	2.1	2.5	2.8	3.2	3.6
	1750	0.11				0.14 0.14 0.14	0.21 0.21 0.621	0.32 0.32	0.39 0.39	0.49 0.42	0.56	0.63	0.7	0.84
12＂	1050	0.14			0.07 0.07 0.07	0.21 0.21 0.21	0.35 0.35 0.32	0.49 0.49	0.63 0.63	0.7	0.84	0.98	1.1	1.3
	700	0.25			0.14 0.14 0.14	0.35 0.35 0.35	0.56 0.56 0.49	0.77 0.77	0.98 0.98	1.3	1.5	1.7	1.9	2.1

(2) Soft seal structure Unit: MPa
Caliber	Cv	Air-to-open and flow-opening type	Air-to-open and flow-closing type or air-to-close and flow-opening type
			Air supply pressure
			0.14	0.18	0.21	0.25	0.28	0.32	0.35	0.39	0.42	0.46	0.49	0.53
1＂	14 5.6	5.6 7.0	5.6 7.0
＂ 1 1 2	30 12	3.5 7.0	1.6 3.7	4.9 7.0
2＂	50 20	1.8 3.7	0.7 1.6	2.6 5.3	4.2 7.0
3＂	135 54	1.4 3.4	0.62 1.6	2.1 4.8	3.5 5.6
4＂	230 92	0.7 1.6	0.25 0.7	1.1 2.3	1.8 4.0	2.6 5.6	3.4 5.6	3.5 5.6
6＂	500	0.42			0.14 0.14 0.14	0.63 0.63 0.63	1.2 1.2 1.2	1.7 1.7 1.7	2.2 2.2 2.5	2.7 2.7	3.2 3.2	3.5 3.5
6＂	200	1.1			0.42 0.42 0.42	1.5 1.5 1.5	2.7 2.7 2.7	3.7 3.7 3.7	4.8 4.8	5.6 5.6
	850	0.14				0.28 0.28 0.28	0.52 0.52 0.52	0.77 0.77 0.63	1.1 1.1	1.3 1.3	1.5	1.8	2.1
8＂	510	0.28			0.07 0.07 0.07	0.46 0.46 0.46	0.84 0.84 0.84	1.2 1.2 0.96	1.6 1.6	2.0 2.0	2.4	2.8	3.2
	340	0.49			0.14 0.14 0.14	0.77 0.77 0.77	1.4 1.4 1.4	2.0 2.0 1.5	2.6 2.6	3.2 3.2	3.8	4.4	4.9
10＂	1300					0.11 0.11 0.11	0.25 0.25 0.25	0.38 0.38 0.35	0.53 0.53	0.67 0.67	0.77 0.70	0.91	1.1	1.2
	780	1.1				0.21 0.21 0.21	0.42 0.42 0.42	0.63 0.63 0.63	0.84 0.84	1.1 1.1	1.3	1.5	1.7	1.9
	520	0.21				0.35 0.35 0.35	0.7 0.7 0.7	1.1 1.1 0.84	1.3 1.3	1.7 1.7	2	2.3	2.7	3
	1750					0.04 0.04 0.04	0.11 0.11 0.11	0.18 0.18 0.18	0.28 0.28 0.21	0.35 0.35	0.42 0.42	0.49	0.6	0.67
12＂	1050					0.07 0.07 0.07	0.21 0.21 0.21	0.32 0.32 0.32	0.46 0.46	0.56 0.56	0.7	0.77	0.91	1.1
	700	0.07				0.18 0.18 0.18	0.35 0.35 0.35	0.56 0.56 0.56	0.77 0.77	0.91 0.91	1.1 0.90	1.3	1.5	1.8
Note: If the allowable pressure difference exceeds the value in the table, it is recommended to use a piston-type actuator. If the Cv value is greater than 500, it is recommended to use a piston-type actuator. The allowable pressure difference shall not exceed the nominal pressure of the valve.

Accessories
Since the flow characteristic of the FR series pneumatic eccentric rotary control valve is approximately linear, a valve positioner (including an air filter pressure reducer) must be equipped in occasions where control accuracy is required. In addition, auxiliary components such as electro-pneumatic converters, position retaining valves, safety valves, travel switches, and solenoid valves can also be equipped according to process requirements.

The handwheel of the FR series is integrated with the valve, and it can be supplied without special indication when the user places an order.

External dimensions and weight

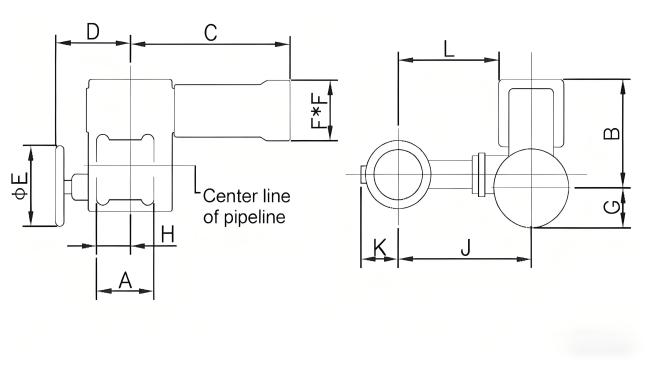

Equipped with a rolling diaphragm actuator Unit: mm
DN	A	B	C	D	E	F	G	H	J	K	L	weight (Kg)
DN	Flangeless	B	C	D	E	F	G	Flangeless	J	K	L	weight (Kg)
1"	102	173	297	208	163	140	110	67	206	38	137	12
”	114	175	300	211	163	140	110	62	234	51	165	14
2"	124	175	300	211	163	140	110	62	239	66	170	16
3"	165	262	434	229	163	175	118	97	333	84	244	35
4"	194	264	437	229	163	175	118	106.5	356	109	267	48
6"	229	330	533	302	254	218	197	127	432	147	323	86
8"	243	333	536	305	254	218	197	147	470	203	361	127
10"	297	335	538	310	254	218	197	167	547	251	465	156
12"	338	338	541	312	254	218	197	184	610	277	500	184

Equipped with a piston-type actuator Unit: mm
DN	A	B	C	D	E	F	G	H	J	K	L	weight (Kg)
DN	Flangeless	B	C	D	E	F	G	Flangeless	J	K	L	weight (Kg)
6"	229	330	677	302	254	271	213	127	432	147	297	194
8"	243	333	680	305	254	271	216	147.5	470	203	335	236
10"	297	335	683	310	254	271	221	167	574	251	440	263
12"	338	338	686	312	254	271	224	184	610	277	475	290

JB	PN1.6				PN4.0				PN6.4
Specification Diameter	M×L	b	Number of Bolts	Number of Nuts	M×L	b	Number of Bolts	Number of Nuts	M×L	b	Number of Bolts	Number of Nuts
25	M12×170	30	4	8	M12×175	35	4	8	M16×195	35	4	8
40	M16×190	35	4	8	M16×200	35	4	8	M20×215	40	4	8
50	M16×210	35	4	8	M16×215	35	4	8	M20×230	40	4	8
80	M16×250 M16×85*	3525	4	8	M16×260 M16×90*	4030	72	142	M20×280 M20×100*	4035	72	142
100	M16×280 M16×95*	4030	7 2	142	M20×300 M20×105*	4035	72	142	M22×315 M22×115*	4535	72	142
150	M20×330 M20×90*	4035	72	142	M22×350 M22×100*	4540	72	142	M30×380 M30×115*	5045	72	142
200	M20×350 M20×100*	4040	104	204	M27×390 M27×115*	4545	104	204	M30×410 M30×125*	5045	104	204
250	M22×420 M22×105*	4040	88	168	M30×455 M30×120*	4545	88	168	M36×480 M36×135*	5050	88	168
300	M22×460 M22×105*	4540	88	168	M30×500 M30×130*	4545	128	248	M36×530 M36×145*	5050	128	248
Note: Items marked with "*" are short double-ended studs.

b represents the thread length of the double-ended stud
JB	PN2.5
Specification Diameter	M×L	b	Number of Bolts	Number of Nuts
25	M12×170	30	4	8
40	M16×195	35	4	8
50	M16×210	35	4	8
80	M16×255 M16×90*	35 30	7 2	14 2
100	M20×295 M20×105*	40 30	7 2	14 2
150	M22×345 M22×90*	40 35	7 2	14 2
200	M22×370 M22×100*	40 40	10 4	20 4
250	M27×435 M27×105*	40 40	8 8	16 8
300	M27×475 M27×110*	45 40	12 8	24 8

List of Bolts and Nuts for Globe Valve-Pipeline Connection
ANSI	150#				300#				600#
Specification Diameter	M×L	b	Number of Bolts	Number of Nuts	M×L	b	Number of Bolts	Number of Nuts	M×L	b	Number of Bolts	Number of Nuts
25	M14×185	30	4	8	M16×195	35	4	8	M18×210	40	4	8
40	M14×200	30	4	8	M20×225	40	4	8	M20×235	40	4	8
50	M16×225	35	4	8	M16×230 M16×95*	40	7 2	14 2	M18×250 M18×105*	40	7 2	14 2
80	M18×270	35	4	8	M20×305 M20×130*	40	7 2	14 2	M20×310 M20×140*	40	7 2	14 2
100	M18×295 M18×105*	40	7 2	14 2	M20×320 M20×135*	40	7 2	14 2	M22×355 M22×150*	45	7 2	14 2
150	M20×355 M20×120*	40	7 2	14 2	M20×365 M20×150*	45	11 2	22 2	M27×420 M27×170*	50	11 2	22 2
200	M20×365 M20×105*	40	6 4	12 4	M24×405 M24×125*	50 45	10 4	20 4	M30×460 M30×150*	55 45	10 4	20 4
250	M22×425 M22×110*	40	8 8	16 8	M27×475 M27×130*	50 45	12 8	24 8	M33×535 M33×165*	65 45	12 8	24 8
300	M22×470 M22×110*	45	8 8	16 8	M30×525 M30×140*	65 45	12 8	24 8	M33×580 M33×165*	65 50	16 8	32 8
Note: The item marked with "*" is a short double-ended stud.
