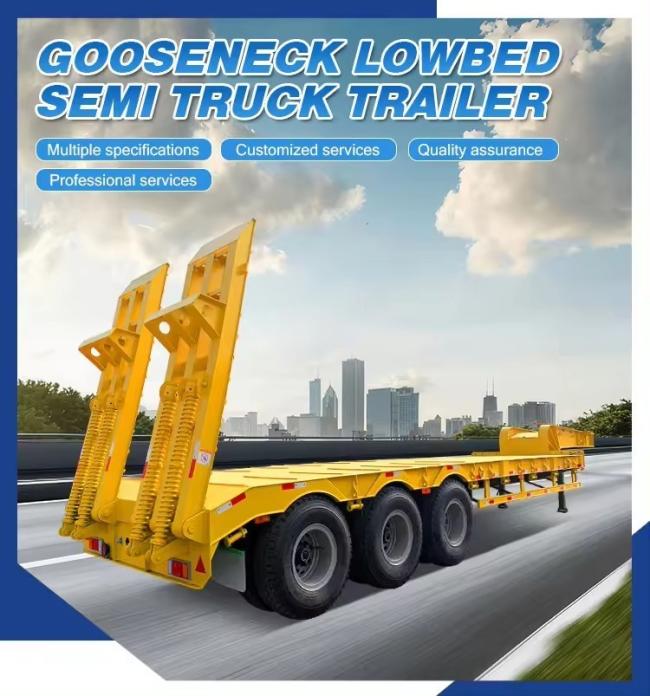

Customization 3 Axles 80t Lowbed Lowboy Low Flatbed Loader Drop Deck Trailer Tread 1820mm
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Peak Season Lead Time: one month, Off Season Lead Time: one month
Product Description
| Lowbed Lowboy Semi Trailer(Customerize and OEM Service Available) | |||
| Product Name | 2 axles lowbed semi trailer | 3 axles lowbed semi trailer | 4 axles lowbed semi trailer |
| Size(mm) | 12500*3000*1100 | 13000*3000*1100 | 14000*3000*1100 |
| Payload | 40000KG | 60000KG | 80000KG |
| Plate | 4mm checked plate | 4mm checked plate | 5mm checked plate |
| Axles | 2 * 13ton capacity | 3 * 13ton capacity | 4 * 13ton capacity |
| (Brand optional) | (Brand optional) | (Brand optional) | |
| Ladder | Hydraulic ladder or Mechanical spring ladder | ||
| Main beam | Height:500mm, upper plate is 16mm, middle plate is 8mm, down plate is 18mm | ||
| Material is Q345B Steel. | |||
| Side beam | 250mm I beam; 20mm channel steel ( Material is Q235steel ). | ||
| Bottom Platform | 4mm thickness diamond steel plate | ||

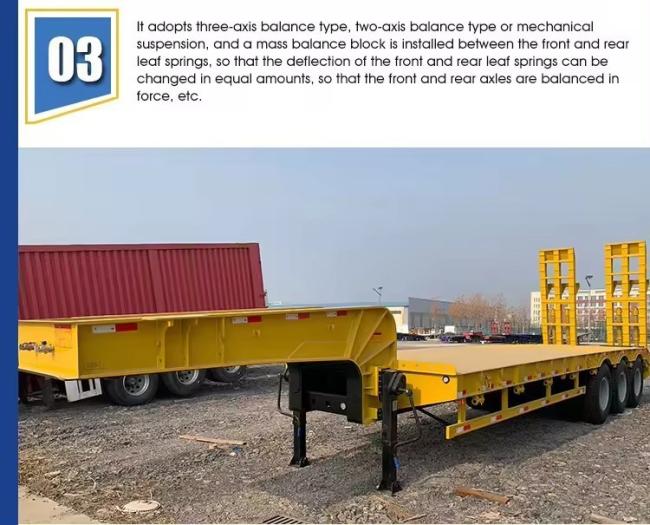

| Suspension | Mechanical suspension (Air suspension optional) | ||
| Leaf spring | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 | ||
| (specially intended for overseas markets) | |||
| Tire | 12R22.5 / 11.00R20 8pcs (Other size optional) | ||
| Rim | 9.00-22.5 / 11.00R20 8pcs (Other size optional) | ||
| Kin pin | 2''/3.5'' bolt type | ||
| Landing gear | 28 Ton two speed | ||
| Braking system | Double air chamber ,brake valve,45L air tanks ;ABS optional | ||
| Electrical | LED light , 7 ways ,24V | ||
| Accessory | One tooling box with a set of standard trailer tool | ||
| Painting | 1.Sand blasting processing clean rust. | ||
| 2.Coat of anticorrosive primer. | |||
| 3.Coats of finish urethane paint. | |||
| 4.Color as customer choice. | |||

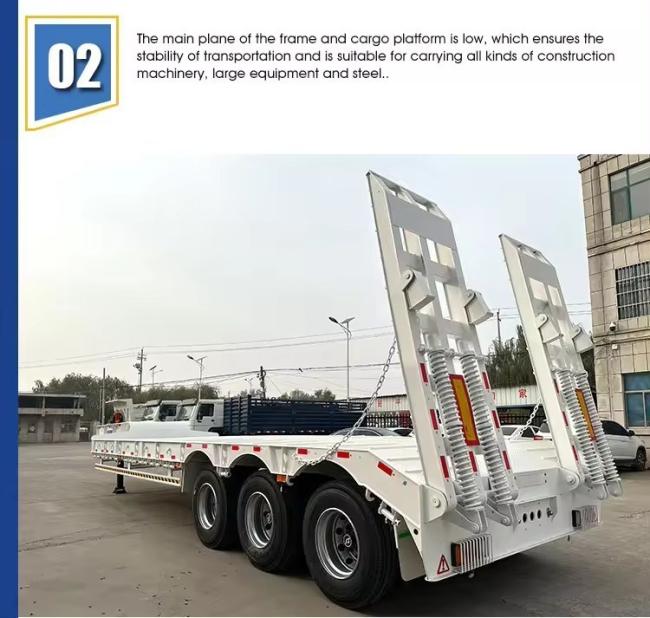

| Other Descriptions | The cargo platform is lower than others, it is applicable for unsound road condition, and ensuring the stablenessof the | ||
| transportation. | |||
| Usage | It is applicable for the transportations of the mechanical equipment, large objects, highway construction equipment, large tanks, | ||
| power plant equipment or machine, and all sorts of steel products. | |||

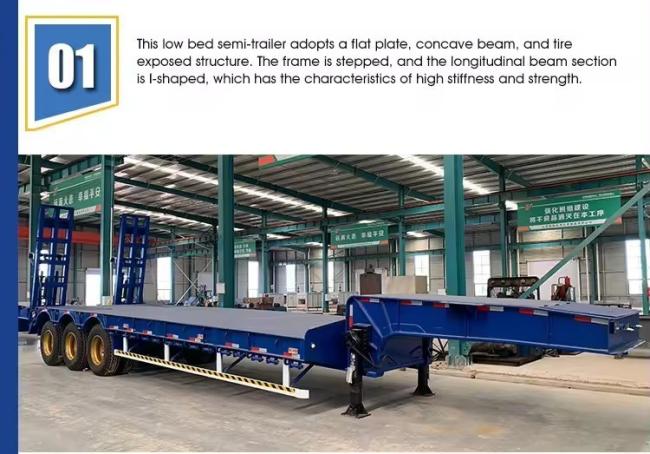

| Other Specifications | It's concave structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm, (ladders | ||
| belong to optional components), with the overall height of 1710 mm. | |||
| Remark | We can design model according to client's requirement | ||
Liangshan Hongxiang Vehicle Manufacturing Co., Ltd. is located at the foot of the famous waterside Liangshan Mountain, close to the 220 National Road and Beijing-Kowloon Railway, the scenery is pleasant and the traffic is very convenient.
The company has a large number of professional production, technical personnel. Advanced production equipment, sophisticated technology, complete testing equipment. Our company is a set of production, scientific research, sales in one of the professional enterprises. The products reach or exceed the performance indicators of other similar products in China. Products mainly include: Various series of container transport vehicles, semi-trailer, van, full trailer, Shanghai 50, Tianjin 60, Dongfang Red 1000 full trailer, and undertake special vehicle modification, design business.
We insist on high-quality products to win the market, adhere to the sincere service to return customers, our pursuit is first-class equipment, first-class management, first-class technology, first-class products. We always adhere to the quality, low price, contract, keep faith, product implementation of "three guarantees", timely delivery, thoughtful service business purposes. Every step of development, the first thought is the user, we rely on the quality of survival, to the letter of development!
