Chinese HD22 HD32 Dozers with STR13 Hydraulic Bulldozer and Low Environmental Impact
Price:
$22,000.00/sets 1-5 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
HJH
Product Description
Company Profile
About Company
As a large-scale new energy electric vehicle export dealer, we have a comprehensive brand and a wide range of models, which can provide you with the most favorable price.
Exhibition
Product Paramenters
arameter name | SD13 (Standard version) | SD13S (Wetland version) | SD13R (Environmental sanitation version) | SD13C (Coal version) |
Performance parameters | ||||
Operating weight (Kg) | 13700 | 14900 | 15200 | 13900 |
Ground pressure (kPa) | 53.8 | 38.4 | 39.2 | 54.6 |
Engine | ||||
Engine model | SC8D143G2B1 (ChinaII)/SC8DK (China-III) | SC8D143G2B1 (ChinaII)/ SC8DK(China-III) | SC8D143G2B1 (China-II)/ SC8DK(China-III) | SC8D143G2B1 (China-II)/ SC8DK(China-III) |
Rated power/ rated speed (kW/rpm) | 105/1900 | 105/1900 | 105/1900 | 105/1900 |
Overall dimensions | ||||

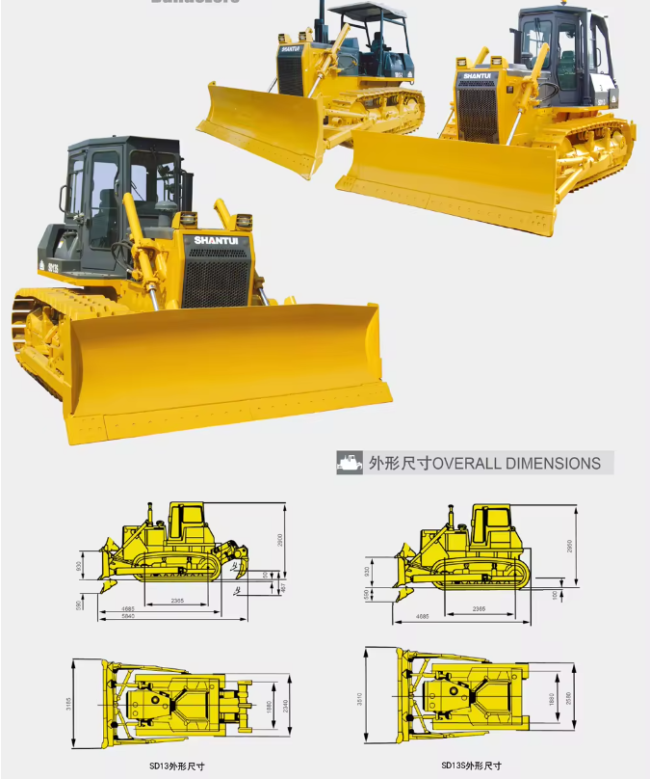

Overall dimensions of machine (mm) | 4492*3185*2950 | 4492*3510*3000 | 4492*3510*3000 | 4492*3700*2950 |
Driving performance | ||||
Forward speed (km/h) | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 |
Reversing speed (km/h) | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 |
Chassis System | ||||
Center distance of track (mm) | 1880 | 1880 | 1880 | 1880 |
Width of track shoes (mm) | 460 | 700 | 700 | 560 |
Ground length(mm) | 2365 | 2365 | 2365 | 2365 |
Tank capacity | ||||
Fuel tank (L) | 300 | 300 | 300 | 300 |
Working device | ||||
Blade type | Straight tilting blade | Straight tilting blade | Sanitation blade | Coal blade |
Digging depth (mm) | 590 | 590 | 590 | 590 |
Ripper type | Three-shank | —— | —— | —— |
Ripping depth (mm) | 567 | —— | —— | —— |
Products Description
Planetary power shift, forced lubrication transmission, hydraulic power steering system makes the machine operation light, with high transmission power and efficient production efficiency.
● Closed system, so that the water tank pressure to maintain a specific value, can improve the evaporation temperature and heat dissipation efficiency of cooling water. Fan power comes from the engine, and the forced air supply adds more cooling effect.
● Mainstream 14MPa working hydraulic system, stable work, with overload protection function, can greatly reduce the failure rate of hydraulic components.
● Mainstream 14MPa working hydraulic system, stable work, with overload protection function, can greatly reduce the failure rate of hydraulic components.
● The use of vehicle waterproof connector, new relay and overall injection molding instrument panel can effectively avoid electrical system faults, instrument box set air conditioning, electrical appliances, instruments as one, more beautiful and high-grade.
● The main frame of full box structure adopts steel plate welding full box integral structure, which is integrated with the rear bridge box welding, with a high impact load and bending resistance ability, high quality weld to ensure that the main frame has a full life cycle.
● The main frame of full box structure adopts steel plate welding full box integral structure, which is integrated with the rear bridge box welding, with a high impact load and bending resistance ability, high quality weld to ensure that the main frame has a full life cycle.
● Eight-character beam swing type, balance beam suspension structure, connect the frame and walking system, can transfer the working load and impact load to the main frame, effectively improve in the complex Stability in miscellaneous working conditions
