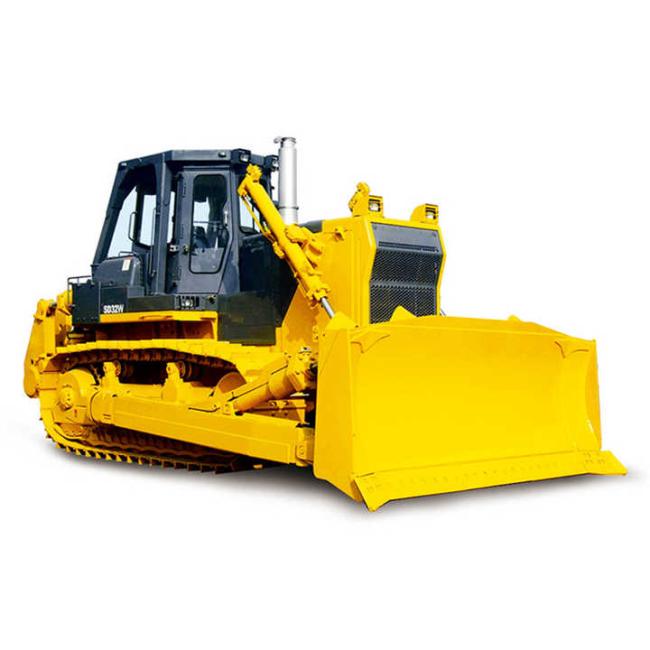

SD32 320hp Full Hydraulic Crawler Bulldozer for Heavy Duty Pipeline Construction
Product parameters and advantages are introduced
| Model number | SD32 | |
| Length*width*height (mm)(without ripper) | 6535*4150*3515 | |
| Service weight(kg)(without ripper) | 37200 | |
| Engine type | NT855-C280 | |
| Power/rated revolutions(kw/rpm) | 187(250HP)/1850 | |
| Grounding length and specific grounding pressure(MPa) | 2730 | |
| 0.077 | ||
| Climbing performance(° ) | 30 | |
| Number of track plates(each side) | 38 | |
| Track plate width(mm) | 560 | |
| Track center distance(mm) | 2000 | |
| Chain track pitch(mm) | 216 | |
| Number of supporting wheels(each side) | 2 | |
| Number of wheels supported(each side) | 6 | |
| Blade type | Straight tilting shovel | |
| Blade length x height(mm) | 4150*1610 | |
| Blade capacity (m3) | Straight 10 half U11.7 Angle 6.2 | |
| Blade lift height(mm) | 1210 | |
| Blade depth(mm) | 540 | |
| Ripper type | One tooth three teeth | |
| Depth of soil loosening(mm) | Single 470.three 543 | |
| The ripper raises the height(mm) | Single 995.three 883 | |
| Forward gear speed (km/h) | F1:0~3.6 | |
| F2:0~6.6 | ||
| F3:0~11.5 | ||
| Reverse all gears (km/h) | R1:0~4.4 | |
| R2:0~7.8 | ||
| R3:0~13.5 |
SD32 crawler bulldozer, meet the national III emission requirements, the department adopts the domestic leading process production technology, standardized mass production of high-power bulldozer, the whole machine adopts advanced hydraulic transmission, hydraulic control technology, advanced and reasonable structure, light and flexible operation, reliable quality.
