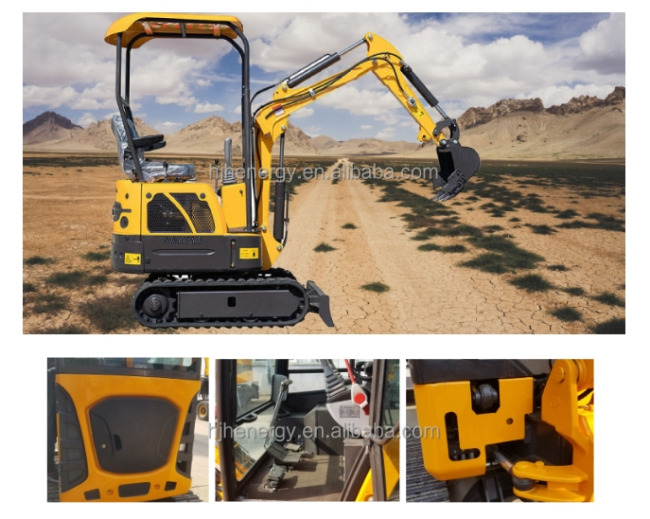

Mini Excavator XN18 1.8 ton Hydraulic Earth Moving Machinery Perfect for Small Spaces
Price:
$11,290.00/sets 1-4 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Original
Product Description
Product Overview
Model | XN18 | |
Operating Weight | 1700kg | |
Digging bucket capacity | 0.045cbm/120kg | |
Digging bucket width | 350mm, can add narrow bucket is 200mm | |
Engine | KUBOTA / YANMAR | |
Rated power | 10.2kw/3600r/min | |
Displacement | 6.8ml/r | |
Bore stroke | single cylinder, fan cool | |
Main pump | TAIFENG | |
Valve | TAIFENG | |
Swing motor | SJ-TECH (MP-1-160) | |
Traveling motor | KERSEN (OMS-2450) | |
MAIN DEMENSIONS | ||
Overall dimension( LxWxH) | 2770x896x1490 mm | |
Wheelbase | 910 mm | |
Total length of track on land | 1230mm | |
Platform ground clearance | 380 mm | |
Platform back turning radius | 784 mm | |
Chassis width | 896 mm | |
Track width | 180 mm | |
Chassis ground clearance | 132 mm | |
Track height | 320 mm | |
OPERATING RANGE | ||
Max. Digging depth | 2150 mm | |
Max. Vertical digging depth | 1375 mm | |
Max. Digging height | 2610 mm | |
Max. Dumping height | 1850 mm | |
Max. Digging radius on ground | 2850 mm | |
Min. Rotation radius | 1330 mm | |
Max. Upgrade height of bulldozer blade | 345 mm | |
Max. Digging depth of bulldozer blade | 255 mm | |
1, Use Yanmar engine, imported from Japan, more power, low fuel consumption;
2, Fully imported hydraulic system,
3, Telescopic lower frame, easy to in and out working side, track can back to 990mm when transportation, when working, can reach
to 1240mm.
4, Swing boom, can be used in narrow area and working along the wall.
5, Variable dozer
2, Fully imported hydraulic system,
3, Telescopic lower frame, easy to in and out working side, track can back to 990mm when transportation, when working, can reach
to 1240mm.
4, Swing boom, can be used in narrow area and working along the wall.
5, Variable dozer
PRODUCT SPECIFICATIONS
Excavator | PC200-3-5-6-7-8,PC300-5-6-7-8,PC400-5-6-7-8,PC600,P650,PC1250,R319,L330 |
Wheel Loader | WA380-1-3,WA400-1,WA420-3,WA470-3,WA500-1,WA600-1 |
Bulldozer | D65 ,D85 ,D155, D275 ,D355, D375, D475 |
Engine | S6D95; S6D102; S6D107; S6D108; S6D114; S6D125; 6D140; S6D155; S6D170 |
Engine | 6BT,6CT,M11,NT855,NH220,K19,K38,IK50,QSB6.7,QSM11 |
Excavator | 320B,C,D; 320DL; 325B,C,D; 330C,D; 336D; 345B.C,D; 365C; 385C,D; 349D; 390D. |
Bulldozer | D5C,D,M; D6C,D,N,T,R; D7G,D8K, D8H, D8L, D8N, D9G, H, D10N , D11N. |
Wheel Loader | 950, 966, 970, 977, 980, 983, 988 series |
Main Product Catalog
Company Profile
PRODUCT CONFIGURATION
Accessories
Successful Project
Project in Thailand
Project in India
Project in Russia
FAQ
Q1:How long is the warranted time?
For natural broken, 3 months. Guarantee genuine parts.
Q2: What's payment you can accept?
T/T, WESTERN UNION, CHINESE BANK,PAYPAL.
Q3: What's package? Can you give me the package according my requirement?
Yes, Original packing or Neutral packing with wooden box or carton.
Q4: How about the lead time?
1) In stock: 1-3days.Always in 24 hours.
2) Out of stock: It's according to your quantity, and we have cooperated with factory. We will let you know when we quote.
Q5: What's the shipping way you can offer?
1) Big order: By sea or by air.(It can reduce the costs).
2) Small order: DHL, TNT, UPS, FEDEX, EMS,ARAMEX.
Q6: What's the terms of the transaction?
EXW, FCA, FAS, FOB, C&F, CIF, CPT, CIP, DAF, DES,DDP.
Q7: Do you accept small order?
Yes, small order can accept.
Q8: What's brand you can offer in your company?
1) OEM, 100% Genuine parts.
2) Genuine parts.
For natural broken, 3 months. Guarantee genuine parts.
Q2: What's payment you can accept?
T/T, WESTERN UNION, CHINESE BANK,PAYPAL.
Q3: What's package? Can you give me the package according my requirement?
Yes, Original packing or Neutral packing with wooden box or carton.
Q4: How about the lead time?
1) In stock: 1-3days.Always in 24 hours.
2) Out of stock: It's according to your quantity, and we have cooperated with factory. We will let you know when we quote.
Q5: What's the shipping way you can offer?
1) Big order: By sea or by air.(It can reduce the costs).
2) Small order: DHL, TNT, UPS, FEDEX, EMS,ARAMEX.
Q6: What's the terms of the transaction?
EXW, FCA, FAS, FOB, C&F, CIF, CPT, CIP, DAF, DES,DDP.
Q7: Do you accept small order?
Yes, small order can accept.
Q8: What's brand you can offer in your company?
1) OEM, 100% Genuine parts.
2) Genuine parts.
