Maximum Digging Depth 3380mm with Komamax PW75-9 Digger 6 Ton Hydraulic Wheel Excavator
Price:
$3,000.00/sets >=1 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
komamax
Product Description
Product Paramenters
Basic parameters
Total weight：6600KG
shipping length：6346(mm)
Total height during transportation：2800(mm)
Transport width：2200(mm)
Tire center distance：2400(mm)
Counterweight ground clearance：1035(mm)
umber of tires：8*750-16
Boom length：3560(mm)
Stick length：1900(mm)
Max.Digging Height：6550(mm)
Max.Dumping Height：5100(mm)
Max.Digging Depth：3380(mm)
Max.Digging radius：6590(mm)
Maximum lifting height of earth shovel：300(mm)
The maximum digging depth of dozer：100(mm)
Counterweight ground clearance：1035(mm)
umber of tires：8*750-16
Boom length：3560(mm)
Stick length：1900(mm)
Max.Digging Height：6550(mm)
Max.Dumping Height：5100(mm)
Max.Digging Depth：3380(mm)
Max.Digging radius：6590(mm)
Maximum lifting height of earth shovel：300(mm)
The maximum digging depth of dozer：100(mm)
performance parameter
Model：扬动
Rate power：60/55KW
Cooling method：water-cooling Turbo
Operating Pressure：22mpa
Main pump：SGP1A2XFZH9
液压阀：Korea
Shape：Load Sensing System
（SAE）Bucket Capacity：0.36m³
Climbing ability：30°
Maximum digging force：8200N
Travel speed：35KM/h
Unit swing speed：9-11r/min
Hydraulic oil capacity：90L
Hydraulic tank capacity：120L
Parking brake：Air break
Rate power：60/55KW
Cooling method：water-cooling Turbo
Operating Pressure：22mpa
Main pump：SGP1A2XFZH9
液压阀：Korea
Shape：Load Sensing System
（SAE）Bucket Capacity：0.36m³
Climbing ability：30°
Maximum digging force：8200N
Travel speed：35KM/h
Unit swing speed：9-11r/min
Hydraulic oil capacity：90L
Hydraulic tank capacity：120L
Parking brake：Air break
Company Profile
Products Description
Click here for more details
Overall length | 9425 mm |
Overall width | 2980 mm |
Transport height | 2970 mm |
Overall width of upperstructure | 2860 mm |
Overall height of cab | 3040 mm |
Shoe width | 600 mm |
Track gauge | 2380 mm |
Min. ground clearance | 440 mm |
Tail swing radius | 2710 mm |
Track ground length | 3480 mm |
Track length | 4260 mm |
Machine Weight | 24000 kg |
Bucket capacity | 1.1-1.3m³ |
Rated Power （KW/rpm） | 124/2050 |
Travel speed(H/L km/h) | 5.5/3.3 |
Swing speed （rpm） | 11 |
Gradeability （35°） | 70% |
Ground pressure （kpa） | 46.5 |
Bucket digging force （KN） | 150 |
Arm digging force （KN） | 109 |
Max. digging height | 10000 mm |
Max. dumping height | 7110 mm |
Max. digging depth | 6620 mm |
Max. vertical wall digging depth | 5980 mm |
Max. digging reach | 9875 mm |
Min. swing radius | 3040 mm |
Max. Height at Min. swing radius | 8060 mm |
FAQ

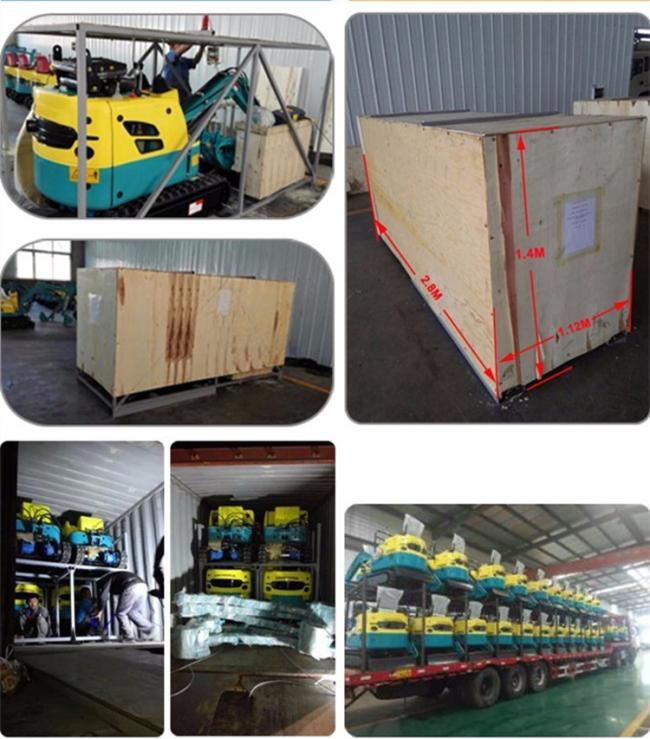

Product packaging
