789-Axis Multi-Axis Flatbed Low-Bed Trailer for Large Trucks Huaxiang 's Best Choice
Price:
$10,000.00/sets 1-5 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
HuaXiang
Product Description
Product description
3Axles New Flatbed Semi Trailer adopt advanced design concept. flat bed trailer can be used to transport containers ,bulk cargo and other goods , and we also can according to your requirements to make this trailer.After fully understanding and analysing the transportation environment in different countries. Also the length of the trailers can be customized, like 45ft, 48ft, or 53ft container transportation trailers.
Product parameters
Overall Dimensions | Front :14000x2600 Rear :12780x260 |
Girder | Front Car: Upper Buy Plate 18mm, Lower Xing Plate 20mm Vertical Plate 12mm Height 580mm Rear Car: Upper Wing Plate 18mm, Lower Wing Plate 20mm Vertical Plate 12mm Height 580mm Wing Plate Quality :Q365: Web Material 700l |
Axle | Factory Bridge, Normal Wheel Base 1850, 16ton No Abs And Brake Adjusting Arm /3/ Set |
Tire | Factory With 12.00r20 Grain Smooth Flower 24Pcs |
Rim | 8x18(Steel)/24/ Pcs |
Plate Spring | 10 Pieces 16mm*120m/12/ Frame |
Suspension | Factory With Reinforced Type |
Bottom Plate | 3mm Thick Pattern Steel Plate |
Front Stop | Flat Type Ladder And Frame |
Side Beam | 180mm High Channel Steel Q355 |
Beam | 120mm Through Beam |
Type/Quantity Of Lock Heads | Front And Rear Vehicles Can Transport 1 40-Foot Non-Standard Container Respectively, And Can Also Transport 2 20-Foot Standard Containers Respectively |
Poise Paint | Frame Sandblasted, Urethane Primer, Urethane Topcoat, Or powder、 Color To Be Determined |
Legs | 28 Tons Single Action/1/Set |
Traction Pin | Front Car 90# Welding Type/16mm/1/Unit, Rear Car 90# Welding Type/12mm/1/Unit |
Brake Air Chambers | 12 Double Chambers/Unit |
Brake Valve | Domestic 6 Holes/1/Set |
Spare Tire Rack | Wire Rope Type chain type |
Toolboxes | With Side 1.6m Toolbox//Bench: (One On Each Front And Back) |
Rope Tensioner | Standard |
Circuit gas circuit | 24 Volt Electrical Ik, 7-Pin Jack, Sealed Wiring Harness，Standard with iron Horse brand |
Fenders | Front Rubber. Iron Rear |
Rear Protective Net | Weekly Style |
Saddle | Reinforced 90# Saddle/1 |

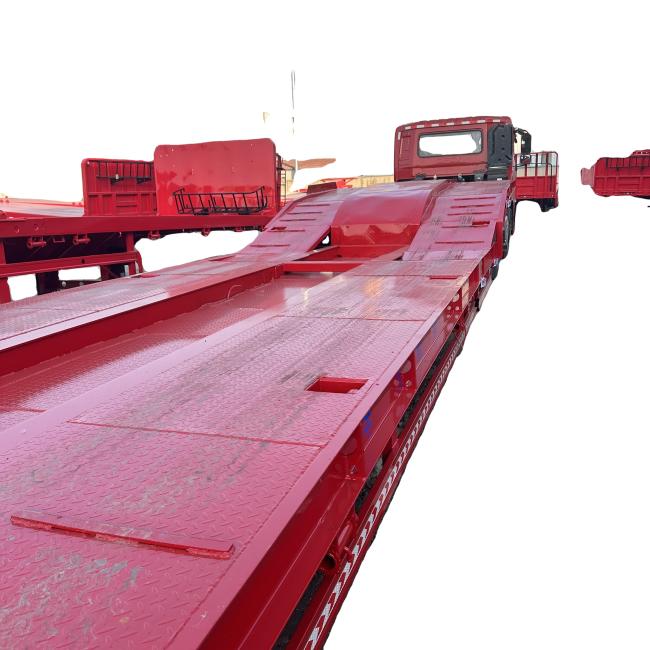

Product display
Company information
Shandong Huaxiang Special Purpose Vehicle Co., Ltd. is an advanced domestic semi-trailer manufacturer. The company specializes in the production and research and development of land transportation, sea transportation, blade transport vehicles, embarrassed semi-trailers, tower transport vehicles, SPMT self-propelled, axis cross block splicing, bridge transport vehicles, flatbed semi-trailers, special low-flat semi-trailers, fence semi-trailers, Oil tank trucks, dump semi-trailers, export-specific semi-trailers, full trailers, trailer accessories, etc. With advanced technology, reliable quality and perfect service, we are also exporting to all over the world. We have successfully sold to Russia, five Central Asian countries, Ghana, Zimbabwe, Zambia, Tanzania, Sudan, Nigeria, Vietnam and more than 60 countries. Huaxiang semi-trailers have established long-term and stable cooperative relationships with various customers, and their products have been unanimously recognized and praised.
