Customization 4 Axle Capacity Self Dumping Dump Trailer Rear Dump Semi Trailer

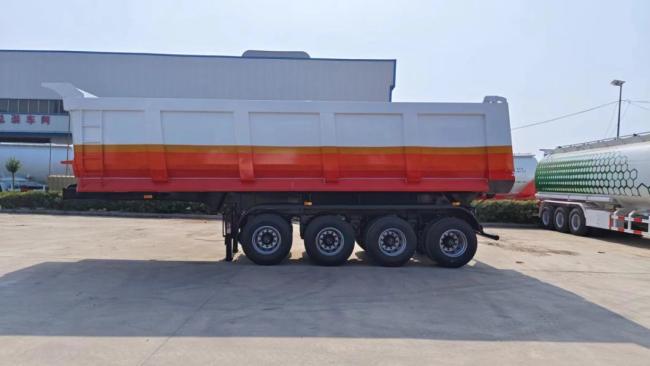

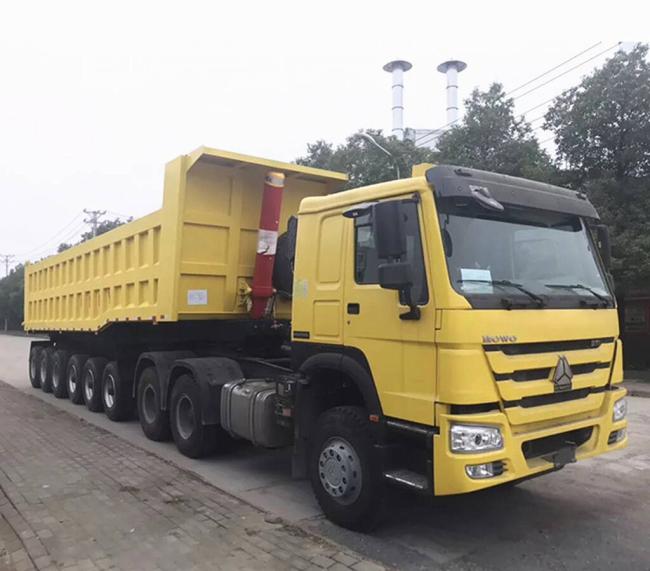

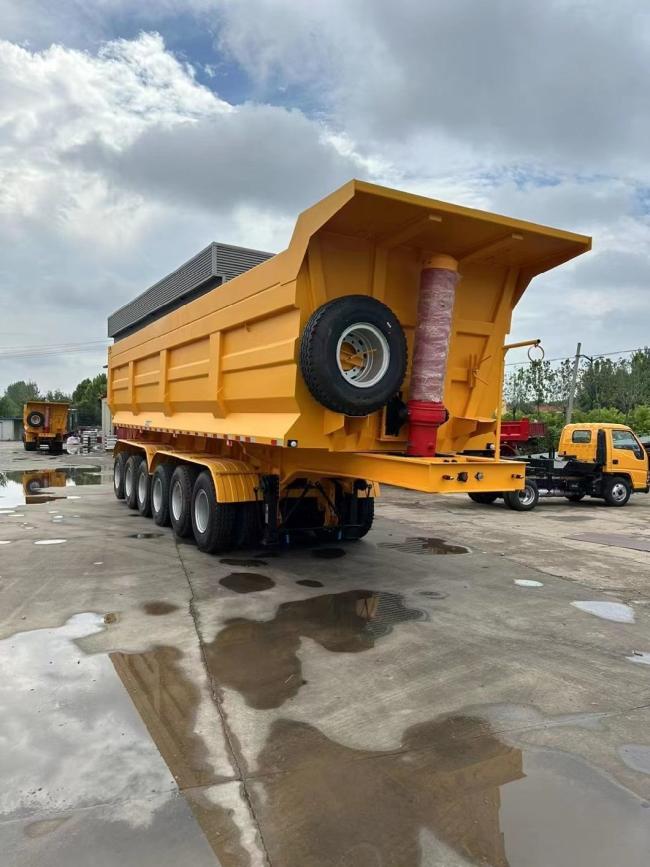

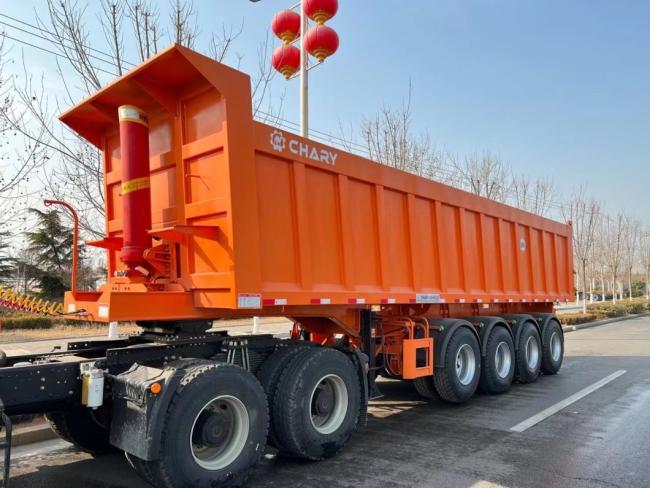

4-Axle Rear Dump Trailer:
- Overview: The quad-axle rear dump trailer represents the pinnacle of capacity and stability in the dump trailer category. It is specifically designed for the most demanding applications, including large-scale infrastructure projects and heavy mining operations.
- Key Features:
- Maximum Payload Capacity: The four-axle configuration allows for the highest payload capacity, making it ideal for transporting massive quantities of material in a single trip.
- Superior Stability: With an extra axle, the quad-axle trailer offers unmatched stability and safety, even when fully loaded on challenging terrains.

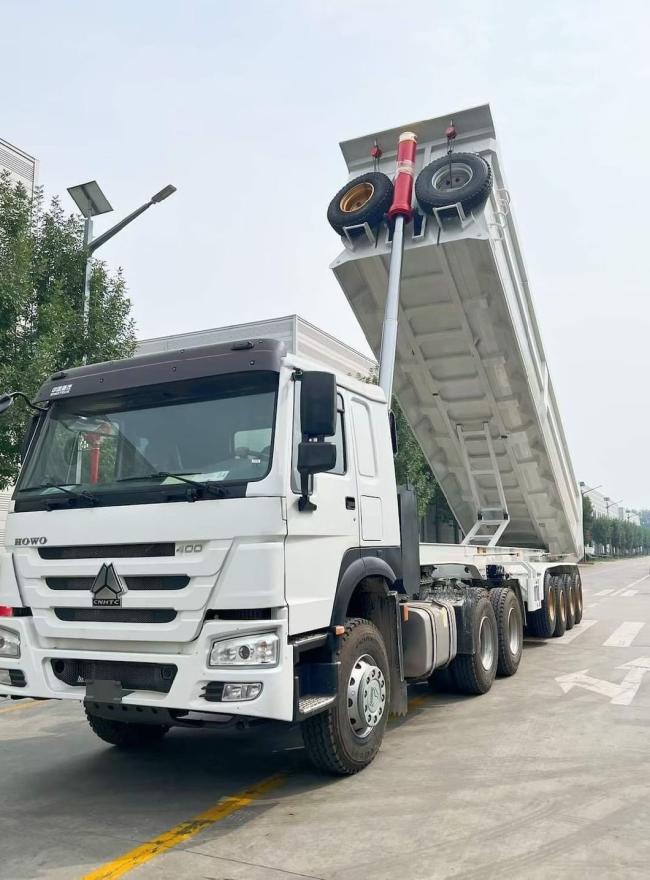

- Efficient Rear Tipping: The rear tipping mechanism is engineered for heavy-duty use, ensuring reliable performance even under extreme conditions.
| Axle | 3 pieces, 13T FUWA/BPW axle | 4 pieces, 13T FUWA/BPW axle |
| Tyre | 12 pieces, 12.00R20 | 16 pieces, 12.00R20 |
| Dimensions(LxWxH) | 9750 to 12000mm x 2500 x 3200mm | |
| Tare weight | 10 tons to 12 tons | |
| Axle spacing | 1310mm | |
| Rims | 8.5-20, 9.0-20 | |
| Suspension System | Leaf spring suspension / air suspension | |
| Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | |
| Main Beam | Height 500mm Q345 | |
| Chassis | upper 14mm, lower 16mm. Mid web 12mm | |
| Dump Box Thickness | Bottom 8mm Side 6mm | |
| Hydraulic Cylinder | HYVA | |
| Kingpin | 2' or 3.5' interchangeable | |
| Landing Gear | 28 Tons , Two speed manual operation | |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
| Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
| Tool Box | One tool box with a set of standard trailer tools | |
| Spare Tyre Carrier | One piece or two pieces | |
Q: How about payment? A:30% T/T deposit, 70% T/T balanced before shipment.
Q: How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Is OEM available?
A: Yes, we offer customized services according to your requests.
Q: Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
Q: Can I print my logo on a trailer?
A: Of course, you can send me your company logo, then we will design it.
