Mechanical Suspension 45 cubic meter side dump trailer bulk cargo transport trailer
Price:
$12,300.00/units 1-4 units
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
WO SHENG
Product Description
Products Description

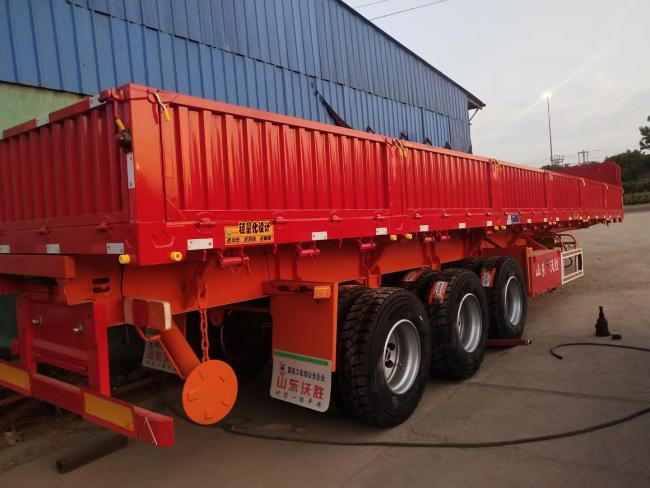

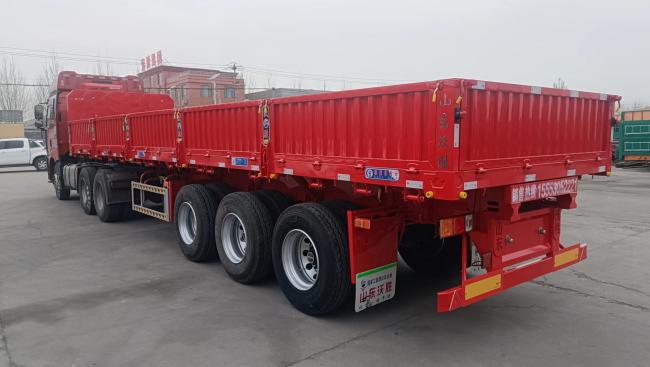

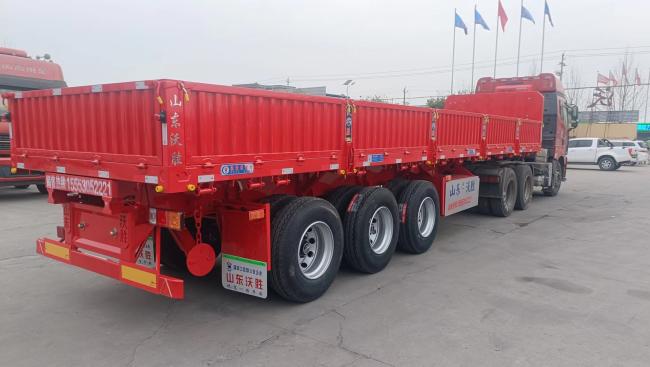

Hydraulic side Dump Semi Trailer
Wosheng Dump Semi Trailers are in great demand from customers, the proven product, which features reliable structure , great loading capacity, excellent power, reliable performance. This trailer model could meet the requirements of different road conditions, and could satisfy your need of long distance highway transportation
Specification
Product Name | Side Dump Semi Trailer |
Dimension(Lx W x H)（mm） | 13000*2550*2900mm (customizable) |
Inside dimension | 12800mm*2350mm*600mm （customizable) |
Tare weight (kg) | 8500 (depends on final configuration) |
Max Loading Capacity (kg) | 30000-100000 （customizable) |
Main Beam | Q345B / T700 Steel Height 500mm upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) |
Bottom plate thickness (mm) | 2mm zinc-rion alloy plate or 3mm plain plate (customizable) |
Sidewall Thickness (mm) | 1.5mm - 2.5mm Q235 steel (customizable) |
side wall height | 600mm (customizable) |
Lifting system | 130 Hydraulic Lifting Cylinder |
Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles ..., Axle brand optional like SAF /FUWA/BPW etc |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) |
Rim | 9.00-22.5/8.00-20/8.50-20 |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand optional |
Suspension | Mechanical Suspension Air Suspension(American or Geman) |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST etc. |
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums |
ABS System | None or installed as your requirement. |
Electrical system | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector, side light, side reflector etc.) |
Color | As per customer requirement |
Spare Wheel Bracket | 1 piece of Spare Wheel Bracket |
Tool box | 1 set of standard tool box equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Painting | Sand blasting before painting;one coats of primer, anti- corrosion; two coat of finish painting; |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
Remarks | Our senior engineer can design semi trailer as your request, and we accept OEM/ODM projects. |
Braking system | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber, 45L air tank |
Tool box | One piece of 1m *0.5m*0.5m (accept customized size) equipped with 1 Tire spanner, 1 gudgeon sleeve and 1 cranking bar |
Spare wheel carrier | 2 piece of Spare Wheel Bracket |
Packing | Wax painting treatment to protect the vehicles from sea water, and the chassis greased to avoid rusting during shipping. |
Delivery | From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume. |
Painting | 1. Sand blasting processing clean rust 2.coat of anticorrosive prime, 3 coats of final paint 4.colors optional |
Axle
BPW/FUWA/LEAO Axle optional.Integrated advanced low-alloy axle beam,Whole axle beam no welding process.strong carrying capacity and high bending strength.Axle maintenance-free could reach 3 year/400,000 kilometers.
Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.
Suspension and break system
Suspension: Germany Type or American Type Mechanical and Air bag suspension can be choose. Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Tire
Double Coin / Ling Long / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance.
Company Profile
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.
Factory
Our factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.
Packing and Loading
Why Choose Us
Shandong wosheng special vehicle manufacturing co.,ltd
Certifications
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
Exhibition
FAQ
1.Are you a factory or a trading company? We are factory,based in Shandong,China.There are total about 150-200 people in our factory.
2. What services can we provide? Accepted Delivery Terms: EXW,FOB, CFR, CIF Accepted Payment Currency: EUR,USD, CNY Accepted Payment Type:T/T,Western Union,Cash
3.Why should you choose us?
We are trailer manufacturer with more than 30 years' experience.we have professional technician and sales, good after-sale service and prompt response sales team.
