the ladder, longitudinal beam section for the i-shape, with high stiffness, high strength characteristics.
The main plane of the frame and cargo platform is low, which ensures the smoothness of transportation.

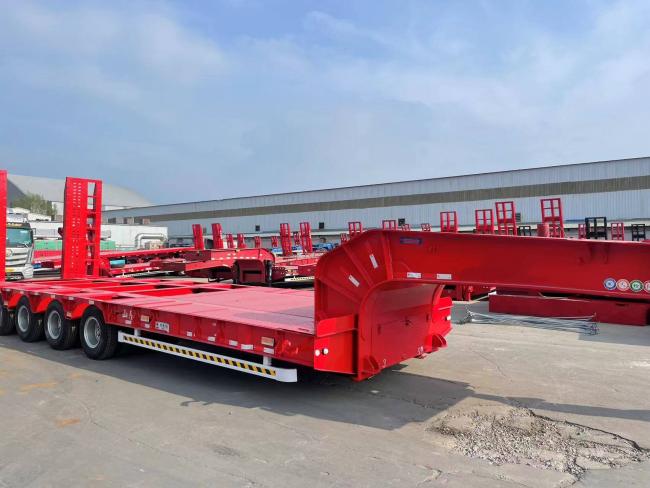

Top Selling 3 Axles Low Bed Container Chassis Loader Semi Trailer for Heavy Equipment
Price:
$9,500.00/units 1-1 units
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Yun Sheng Semi Trailer
Product Description
Products Description
3 Axles Lowbed Semi Trailer
Lowbed semi trailer have plate types, concave beam type and exposed tire type structure, its frame for
Specification
Products name | 3 axles 12 wheels lowbed Semi Trailer |
Max payload | 40-100TON |
Size | 13800x3000x1100 (can be customized) |
Main Beam | Q345B upper plate is 16mm, down plate is 18mm, middle plate is 12 mm |
Side Beam | 20# channel steel |
Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
Landing Gear | 28t Heavy Duty Landing Gear FUWA/JOST/WOSHENG |
Brake System | Dual line brake system, Air chamber T30/30, 3 X 40L gas storage drums |
King Pin | 2"(50mm)or3.5"(90mm) JOST or other brand |
Axle | 13/16/20 Ton, 4 axles SAF /FUWA/BPW/WOSHENG |
Suspension | Mechanical Suspension Air Suspension(American or Geman) |
Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) |
Rim | 9.00-22.5/8.00-20/8.50-20 |
Bottom Platform | 4mm diamond plate |
Electrical SYSTEM | 1. Voltage: 24v waterproof 2. Receptacle: 7 ways (7 wire harness) |
Accessory | One tooling box with a set of standard trailer tool. |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosion prime, 2 coats of final paint |
Packaging and delivery | Overland by truck/tractor, or by sea transfer to Qingdao,Tianjin or Lianyungang Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
remarks | We can design model according to your requirement |
Details Images
TWIST LOCK
Usually 20 ft is 4 sets locks, 40 ft with 12 sets. Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.
Landing Gear
The warranty period of Chinese brand/JOST landing
gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for
service from -30°C to 120°C.
Anti-Tire abrasion Suspension
Specially designed anti-Tire ware suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. at the same time , easy to disassemble and maintain
Axle
BPW/FUWA/LEAO Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole
Axle Beam No Welding process.Strong Carrying
Capacity and high bending Strength.Axle
maintenance-free could reach 3 Year/400,000
kilometers.
Featured Tire
Double Coin / LingLong / Michelin / Triangle / Bridgestone and other famous brand for choice. Better Performance in wear resistance
Brake System
T30/30 Spring brake chamber. WABCO valve,
ABS/EBS system optional. dual line brake pipe.
Packing and Loading
Company Profile
About us
Qingdao Wosheng Import and Export Co., Ltd., is a company engaged in semi-trailer, truck, used
semi-trailer, used-truck, auto parts and new energy vehicles’ sales and service. Our factory is
Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production
experience in the trailer industry. Please believe that our professional technology and manufacturing
experience can help your transportation be safer and efficient. we can provide high quality products
and competitive prices.
Factory
Our factory commit to strict quality
control and thoughtful customer
service, our experienced staff can
discuss your requirements at any time
to ensure your full satisfaction. We
not only want to be perfect in
appearance, but also pursue the
delicacy of detail. We have advanced
modern equipment, strong technical
force to ensure customer satisfaction
of products and timely delivery.
Certifications
we have obtained the World material Manufacturing Factory Certificate, 3C Certificate and ISO9000
Quality Management Certification. We are also a national high-tech enterprise and have obtained
more than 30 invention patents and utility model patents.
Why Choose Us
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility
model patents. We have attracted customers from all over the world, whether choosing the current
product from our catalog or seeking technical support for your application, you can talk to our
customer service colleagues about your procurement needs.
FAQ
Q1. Are you a factory or trade company ? We are a comprehensive industrial and trade enterprise integrating product design, scientific research
and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification? Sure of course. As we all know that the traffic regulations are different in different areas, our professional
engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process,
finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. what services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
