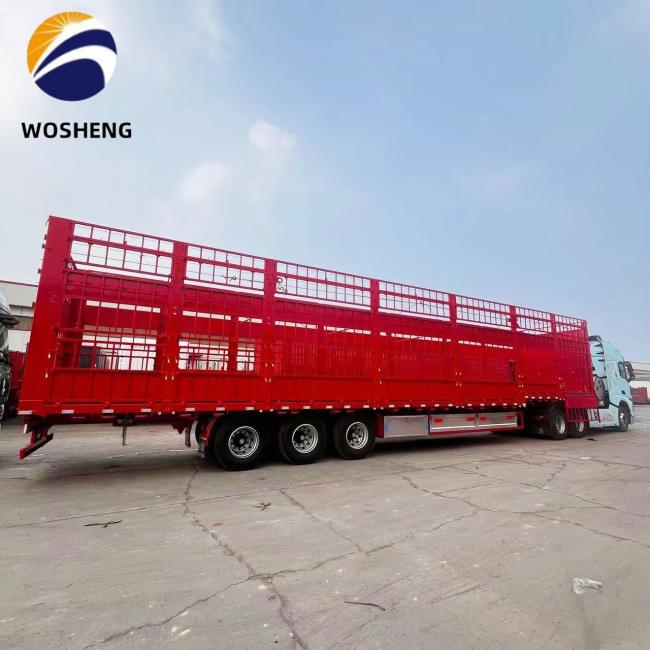

50T Capacity 3 Axle 12.4m Side Wall Fence Semi Trailer Customizable and Classic Type
Price:
$9,000.00/sets 1-4 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Yun Cheng
Product Description
Products Description
1. Capable of rough road condition International standard heavy duty chassis and running system applied to cope with rough road condition.
2. Steel structure High tensile steel material with tensile and high load capacity and advanced design to achieve lower weight with high carrying capacity, reduce operation cost.
3.Automatic welding Submerged arc Automatic welding construction, Keypoint reinforces and purposeful welding avoid some parts easier lose welding according to experience support vehicle longer time working without repairing.
4.Quality Axles Suspensions and Brake System BPW, FUWA worldwide best axles work with WABCO brake valve, more effectively brake for safe and save tire cost Fix quality springs and suspensions, support longer service life, save maintenance cost.
5.We adopt the world famous brand of parts, like JOST, WABCO braking valve etc. And the main part is Hydraulic support system. It is stable and long service life.

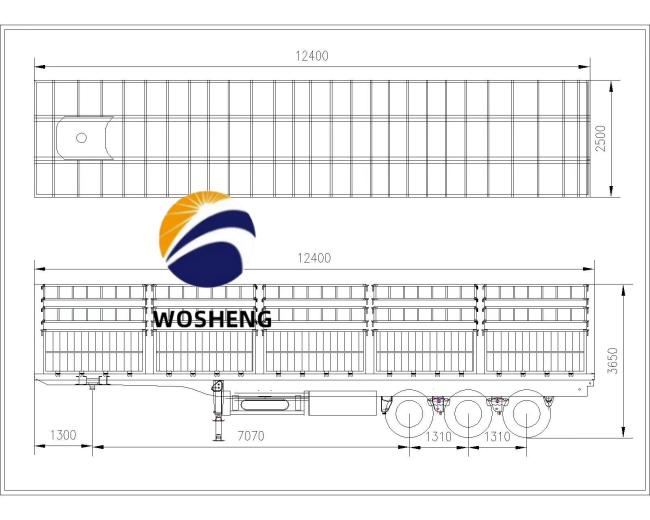

Drawing
Wosheng Fence Cargo Semi Trailer(Customerize and OEM Service Available) | ||||||
Application | Coal/ Livestock/Vegetable/Cargo Loading | |||||
Product Name | 2 axles fence semi trailer | 3 axles fence semi trailer | 4 axles fence semi trailer | |||
Size（mm) | 9500/11000*2500*2800/3800 | 12500/13000*2500*2800/3800 | 12500/13000*2500*2800/3800 | |||
Payload | 30-60Tons | 30-80Tons | 40-100Tons | |||
Main beam | Height: 500mm, Upper plate is 12mm, Middle plate is 6mm, Down plate is 14mm , Material is Q345B Steel. | Height: 500mm, Upper plate is 16mm, Middle plate is 10mm, Down plate is 18mm , Material is Q345B Steel. | Height: 500mm, Upper plate is 18mm, Middle plate is 12mm, Down plate is 20mm, Material is Q345B Steel. | |||
Axles | 2*13T/16Ton Wosheng/ FUWA/BPW/Other | 3*13T/16Ton Wosheng/FUWA/BPW/Other | 4*13T/16Ton Wosheng/ FUWA/BPW/Other | |||
Side Wall Height | 600mm-1700mm (can be customized) | |||||
Side beam | 16mm channel steel (Material is Q235B steel) | |||||
Bottom Platform | 3mm checquered steel plate | |||||
Suspension | Mechanical suspension (Air suspension optional) | |||||
Leaf spring | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) | |||||
Tire | 12R22.5 / 11.00R20 8/12pcs (Other size optional) | |||||
Rim | 9.00-22.5 / 11.00R20 8/12pcs (Other size optional) | |||||
Kin pin | Jost brand 2.0 or 3.5 inch | |||||
Landing gear | Jost brand 28Ton two speed | |||||
Braking system | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks | |||||
Electrical | LED light , 7 ways ,24V | |||||
Tool box | One piece 1m *0.5m*0.5m ( size can be customized) | |||||
Twist locks | Optional | |||||
ABS | Optional | |||||
Painting | 1.Sand blasting processing clean rust.2.Coat of anticorrosive primer. 3.Coats of finish urethane paint. 4.Color as customer choice. | |||||
Shipping terms | By bulk vessel, RORO, or 40HQ container | |||||
Specification
Rational Analysis design:
The checker plate of the flat part can effectively prevent the loose sliding of the goods.
The checker plate of the flat part can effectively prevent the loose sliding of the goods.
Twist Lock:
Customers can also change the number of locks according to their needs Customers can change the number of locks according to your own needs.

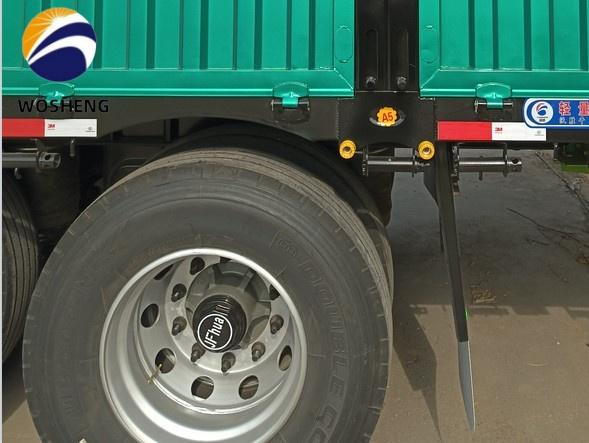

Anti-Tire abrasion Suspension:
Specially designed anti-Tire abrasion suspension system. Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
Specially designed anti-Tire abrasion suspension system. Prevent tire offset after loading, maximally avoid tire
abrasion.Meanwhile,Easy to disassemble and maintain.
Brake System:
T30/30 Spring brake chamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.
Landing Gear
The warranty period of Chinese brand/JOST landing gear is more than 5 years. The gearbox uses low temperature premium chassis oil and is rated for service from -30°C to 120°C.
Title goes here.

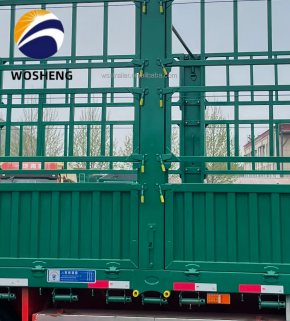

Side wall :
The Height is 400-1200mm for your choose
Weld by automatic corrugated plate welding robot, the quality is good, the welded seam is beautiful, the side wall strong and durable

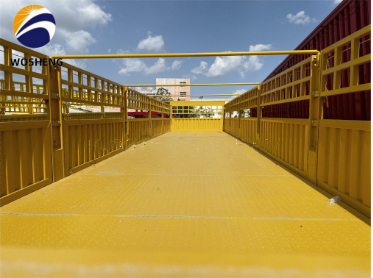

Diamond plateform(Non-Slip)
3mm/4mm/5mm for your chioce , it depends on the loading capacity of trailer
Painting
Electrophoretic primer and power spray, the paint sureface is clean and smooth , ensuring that each part has paint, and no rust water will be produced in the later stage
This series of semi-trailers are designed with cross-beam structure in the main frame, and for the longitudinal beam, it’s designed as flat bed or goose-neck. The height of the middle plate (manganese plate) is from 400mm to 550mm. The longitudinal beam is welded by automatic submerged welding. The frame is shot blasted. The beam penetrates the longitudinal beam and is welded as a whole. | ||||||||
