The TBI Ball Screw BSHR02510 introduces an advanced motion control solution that combines traditional linear ball screw performance with integrated spline functionality in a robust 25mm diameter package. This innovative design addresses complex motion requirements where simultaneous linear movement and torque transmission are needed, offering engineers a space-saving alternative to conventional multi-component systems. The precision-ground screw threads work in concert with the integrated spline mechanism to deliver smooth, accurate linear travel while maintaining rotational stability under load. TBI's engineering expertise is evident in the component's ability to handle substantial thrust forces and torsional stresses simultaneously, making it particularly valuable for rotary-to-linear conversion applications in heavy automation, large-scale positioning systems, and specialized industrial machinery. The carefully engineered ball recirculation paths ensure consistent performance throughout the entire range of motion, minimizing vibration and maintaining alignment precision even during dynamic operation. This dual-function solution simplifies mechanical designs by eliminating the need for separate rotation-stopping components while providing the rigidity required for precise positioning. The BSHR02510's durable construction withstands demanding operating conditions, offering reliable performance in applications ranging from automated production lines to heavy equipment controls. Its combination of linear and rotational capabilities in a single integrated unit demonstrates TBI's ability to develop sophisticated motion solutions that meet the evolving challenges of modern industrial automation while maintaining the reliability and precision associated with the TBI brand.

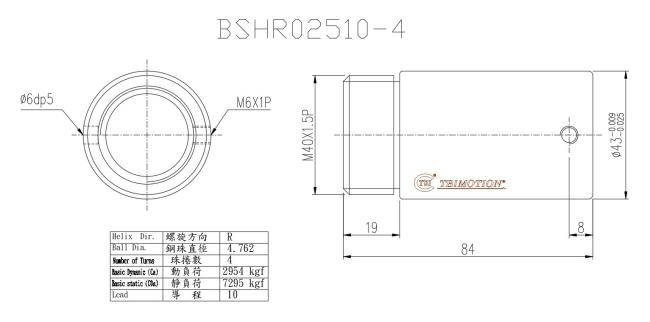

②Drawing of BSHR02510-4
