Belt Type Feed Pellet Machine Small Manufacturing Machines Pellet Maker Granulator For Animal Feedstuff Livestock Machinery Poultry Feed Mill Machine

Belt Type Pellet Mill Feed Pellet Machine  Industrial Animal Feed Production Equipment

Structural Characteristics :

(1) Unique secondary shaft transmission

Advantages:

a. The structure is simple and easy to adjust the parallelism between the secondary shaft and the main shaft;

b. Higher transmission efficiency;

c. Hanging rotor structure is beneficial for improving the service life of main shaft bearings ；

d. The synchronous belt is not easy to slip, and the number of meshing teeth on the synchronous belt is about three times that of the two secondary shaft transmission structures;

(2) Large diameter two pressure roller structure.

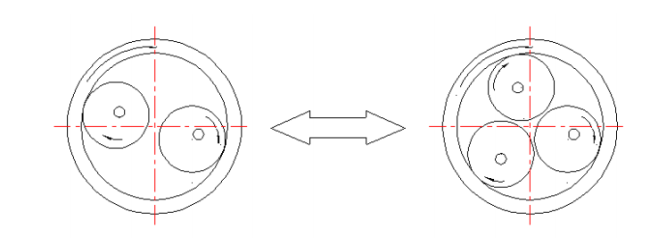

Two roller structure	Three roller structure

Advantages:

a. Easy to adjust the fabric evenly;

b. The pressure roller with increased diameter is more practical for formulas with high oil and protein content, and is less prone to slipping;

c. The centerline of the two pressure rollers forms a certain angle with the horizontal line to improve the efficiency of the ring mold granulation;

(3) Reasonable installation position and adjustable blade angle ensure the quality of feed cutting;

Advantages:

  The angle adjustable scraper blade is designed to adjust the most uniform fabric for different yields and formulas, making the pressure

 roller less prone to slipping and more suitable for formula raw materials;

(4) Adjustable optimal loop mold line speed for processing different feed needs;

(5) Easy to maintain, with low consumable parts and usage costs.

Technical parameters:

Compare with other suppliers(Similar models)
