Controlled Atmosphere Mesh Belt Continuous Tempering Furnace Heat Treatment OEM
1. Core Features & Technical Highlights
A. Multi-Atmosphere Precision Control
Supports N₂/O₂ (oxidizing) or N₂/H₂ (reducing) mixed atmospheres with 18 independent gas paths (including imported mass flow meters).
Oxygen content control: ≤10 ppm in high-temperature zone (with real-time monitoring via 4-point oxygen analyzers).
Safety interlock: Prevents simultaneous O₂/H₂ flow to avoid explosion risks.
B. High-Temperature Uniformity
15 heating zones (4.5m total length), each with 3-point (L/C/R) temperature control (uniformity ±3°C, stability ±1°C).
Heating elements: FEC heating plates + SUS310S double-layered muffle tube for thermal stability.
C. Efficient Cooling System
Hybrid cooling (gas + coil + water cooling) with adjustable flow rates.
Water-cooled section: Multi-stage design (3435mm length) for rapid workpiece cooling.
D. Smart Monitoring & Safety
DCS control system: Real-time monitoring of temperature, atmosphere, and conveyor speed; data logging/printing.
Multi-level alarms: Over-temperature, thermocouple failure, gas pressure anomalies, etc.
Emergency protection: Manual crank for power outages, emergency stop buttons at inlet/outlet.
2. Key Specifications
Category Parameters
Temperature Rated 800°C (max 950°C), 45 K-type thermocouples, ≤3°C/min heating rate.
Belt Nickel-chromium alloy, 520mm width, 50kg/m² load capacity, 40-250mm/min speed (variable frequency control).
Gas Consumption N₂: 25-40 m³/h (99.999% purity); H₂: 1.5-3.5 m³/h; O₂: 0.5-1.5 L/h.
Cooling Water Pressure 0.15-0.25 MPa, flow rate 3-5 m³/h, inlet temp <30°C.
Power Supply 3-phase 380V/144 kVA (dedicated circuit required).
3. Safety & Maintenance
A. Gas Safety
Hydrogen handling: Leak checks mandatory; working pressure strictly 0.2-0.4 MPa.
Exhaust system: Ceramic igniters in chimneys burn residual H₂.
B. Operational Checks
Belt alignment: Regularly inspect tension/alignment to prevent wear.
Cooling system: Monitor water pressure/temperature to avoid scaling.
C. Installation Requirements
Space: ≥13m (L) × 3m (W), floor load >500 kg/m², humidity ≤80% RH.
Utilities: Dry compressed air (0.3-0.5 MPa) for exhaust assistance.
4. Typical Applications

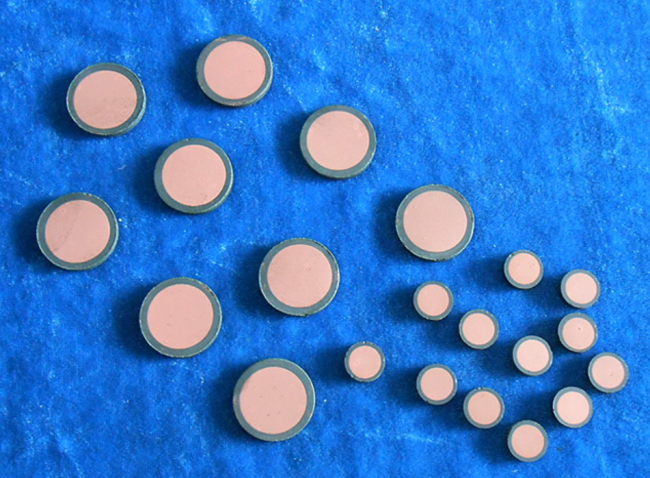

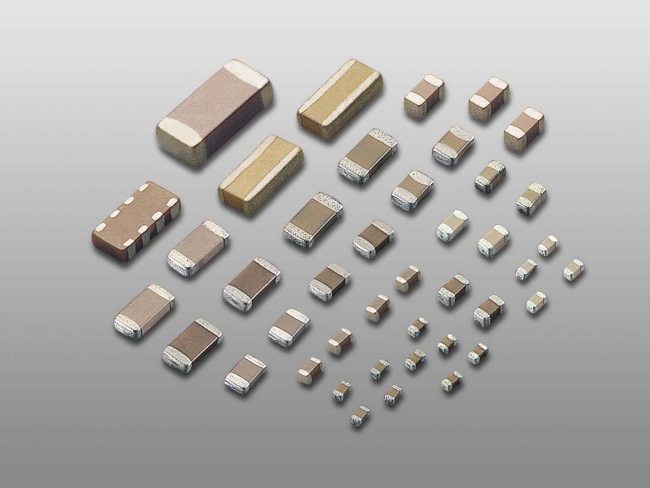

MLCCs/varistors: Copper electrode sintering under N₂/H₂ (reducing) or N₂/O₂ (oxidizing) atmospheres.
High-precision sintering: Ideal for electronics requiring tight temperature/atmosphere control.
5. Recommended Workflow
Pre-start checks: Verify gas pressures, cooling water, and power stability.
Atmosphere switching: Purge furnace before switching between O₂/H₂.
Process optimization: Use DCS to fine-tune zone temperatures/gas flow rates.
6. Critical Notes
Power supply: Isolate from high-noise equipment (e.g., welders) to avoid interference.
Maintenance: Replace FEC heating elements if efficiency drops (>40 kW idle power).
This furnace combines precision heating, flexible atmosphere control, and industrial automation, making it suitable for high-volume production of advanced electronic components. Strict adherence to safety protocols is essential for optimal performance.
Applications:
Widely used in Used in the sintering process of copper electrodes for chip capacitors and varistors under N2, H2 or mixed atmosphere of N2 and O2.
