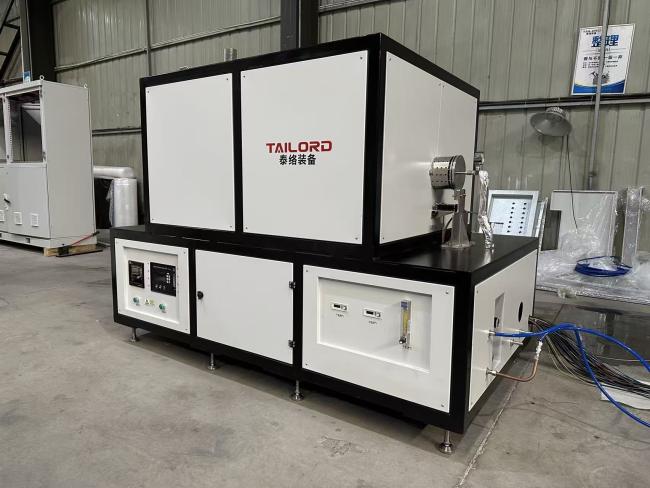

TAILORD SGL Series Controlled Atmosphere Tube Furnace

1. Overview

The TAILORD SGL Series Atmosphere Tube Furnace is a precision thermal processing solution tailored for advanced materials. It specializes in debinding, sintering, and heat treatment (e.g., decarburization, annealing) of electronics and ceramics, with multi-atmosphere adaptability and a 200–1600℃ operating range.

2. Core Applications

• Key materials: LTCC, HTCC, MLCC, electronic ceramics, glass-to-metal sealed packages, ceramic-to-metal brazed components.
• Applicable atmospheres: Nitrogen, nitrogen-hydrogen mixtures, nitrogen-oxygen blends.

3. Technical Highlights

3.1 Temperature Control

• 3 independent temperature zones; K-type thermocouples + imported Japanese controllers.
• Precision: ±1℃ (control); ±3℃ (uniformity in constant temperature zone).
• Heating rate: 0.3–10℃/min; 4×16-segment programmable control.

3.2 Atmosphere Management

• Auto-switchable gas types (per temperature stage); high-precision digital flowmeters.
• Gas preheating (max 200℃) to avoid high-temperature disturbance.
• Real-time monitoring: Dew point (-40~100℃, ±2℃), O₂ (0~1000ppm, ±2%FS), H₂ (0~50%, ±2%FS).

3.3 Safety & Efficiency

• H₂ auto-cutoff if O₂ >20ppm (prevents quartz tube rupture); exhaust H₂ combustion via electronic ignition.
• Imported insulation materials; empty furnace power ≤5kW; surface temperature rise ≤35℃.

3.4 Intelligent Control

• 10-inch touchscreen HMI, hierarchical login, over 6-month data storage.
• Real-time display of temp, flow, dew point, alarms, customizable process parameters.



Parameter	Details
Rated/Max Temp	1000℃ / 1050℃
Furnace Tube	High-purity quartz (φ90mm ID)
Constant Temp Zone	φ90×600mm
Heating Power	12kW+3kW
Load Capacity	≤20Kg
Dimensions (D×W×H)	2100×1200×1500mm (excl. control cabinet)
Weight	600kg



5. Support & Delivery

• Delivery package: Furnace main unit, certificates, technical docs, spare parts.
• Services: On-site commissioning, process assistance, product testing service.

---

Optional Systems:​​

• Industrial PC integrated control system
• Profiling test thermocouple
• Oxygen Analyzer
• Exhaust gas treatment system
• Industrial chiller
